Basic Specifications
Type
Power Steering System
Fluid Efficiency
Fast Transfer Rate
Sealing
Leak Proof / Strong Sealing
Adaptability
Strong Adaptability
Packaging & Delivery
Package Size
60.00cm * 30.00cm * 15.00cm

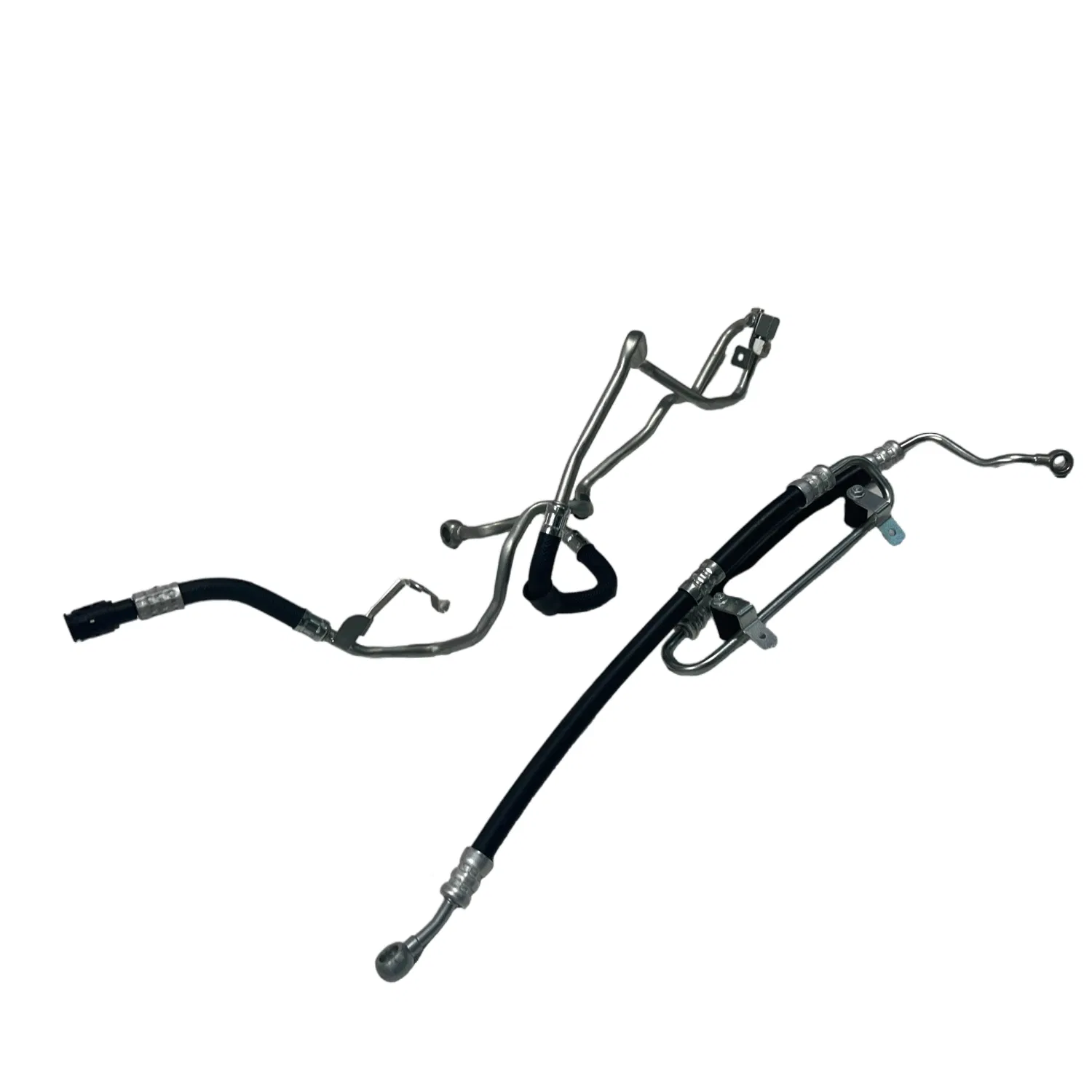

Product Overview

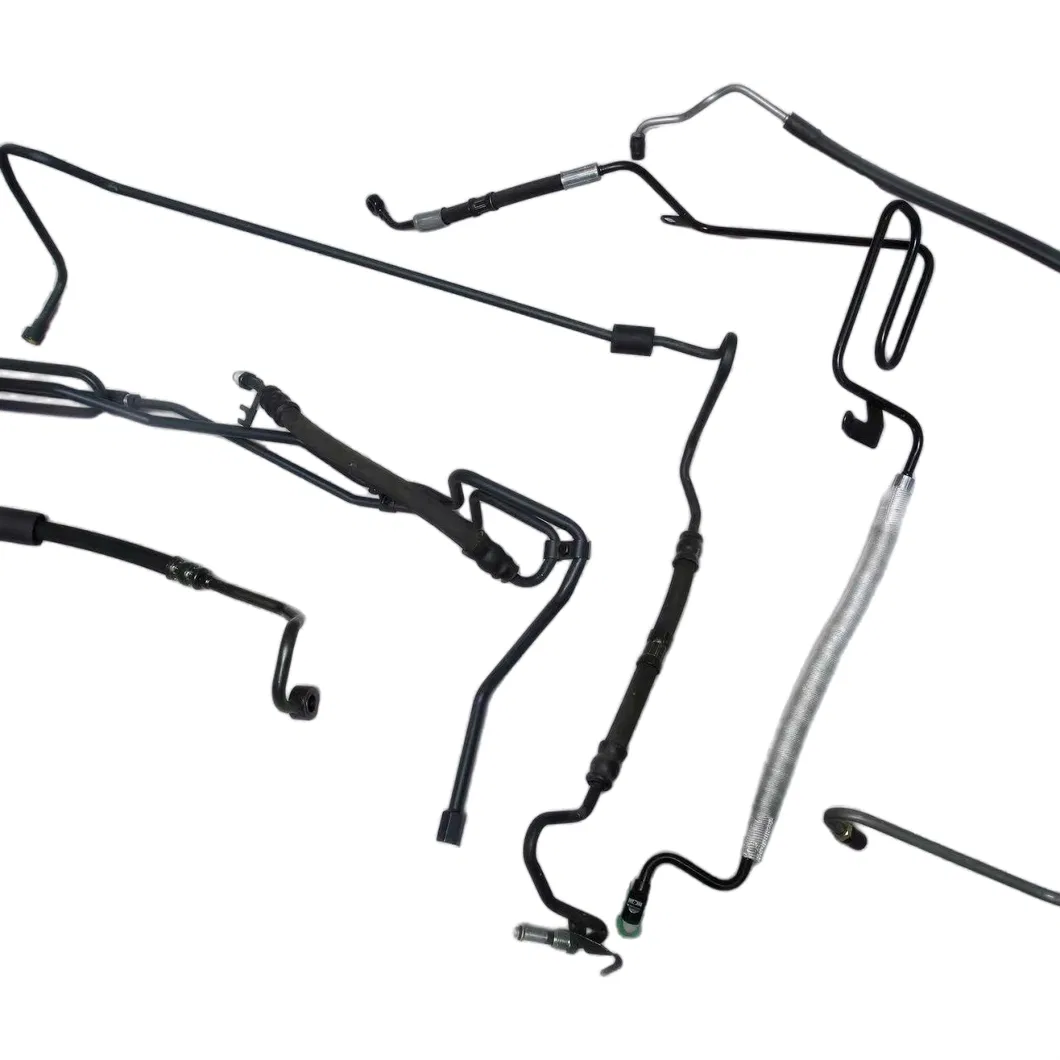

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
🏆 Key Construction Features:
• Inner Tube: Synthetic rubber or thermoplastic resistant to hydraulic fluid degradation.
• Reinforcement: Braided steel wire, textile mesh, or spiral-wound fibers for pressure containment.
• Outer Cover: Weather-resistant EPDM or CR rubber to protect against abrasion and ozone.
Technical Parameters
| Parameter Name |
Description / Value |
Remark |
| Material Structure |
NBR/HNBR Inner + High strength fiber/wire + Polyurethane Cover |
Chemical corrosion resistance |
| Inside Diameter (ID) |
8 mm, 10 mm, 12 mm |
Select by vehicle type |
| Working Pressure |
10 MPa ~ 20 MPa |
Peak can reach 30MPa |
| Burst Pressure |
≥60 MPa |
Safety factor ≥3x |
| Temperature Range |
-40°C ~ +120°C |
Short-time tolerance 135°C |
| Life Cycle |
≥5 million pulse tests |
Simulates 200,000 km |

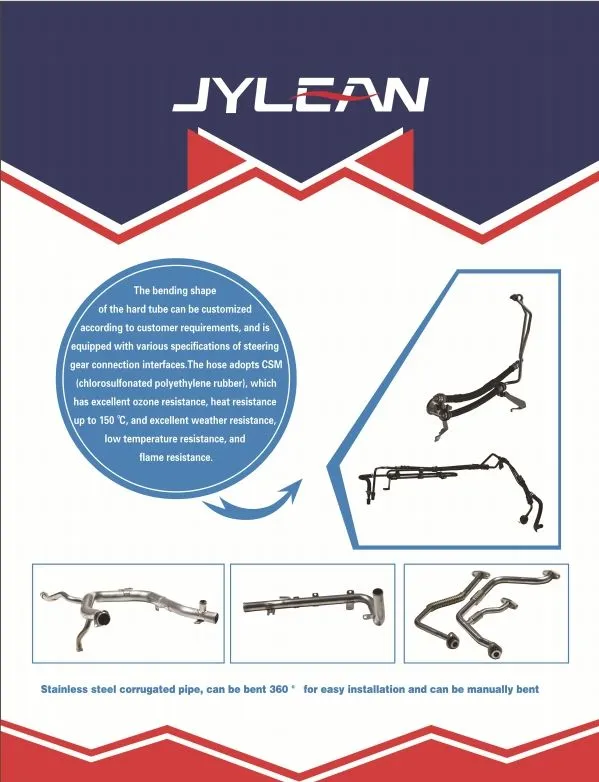

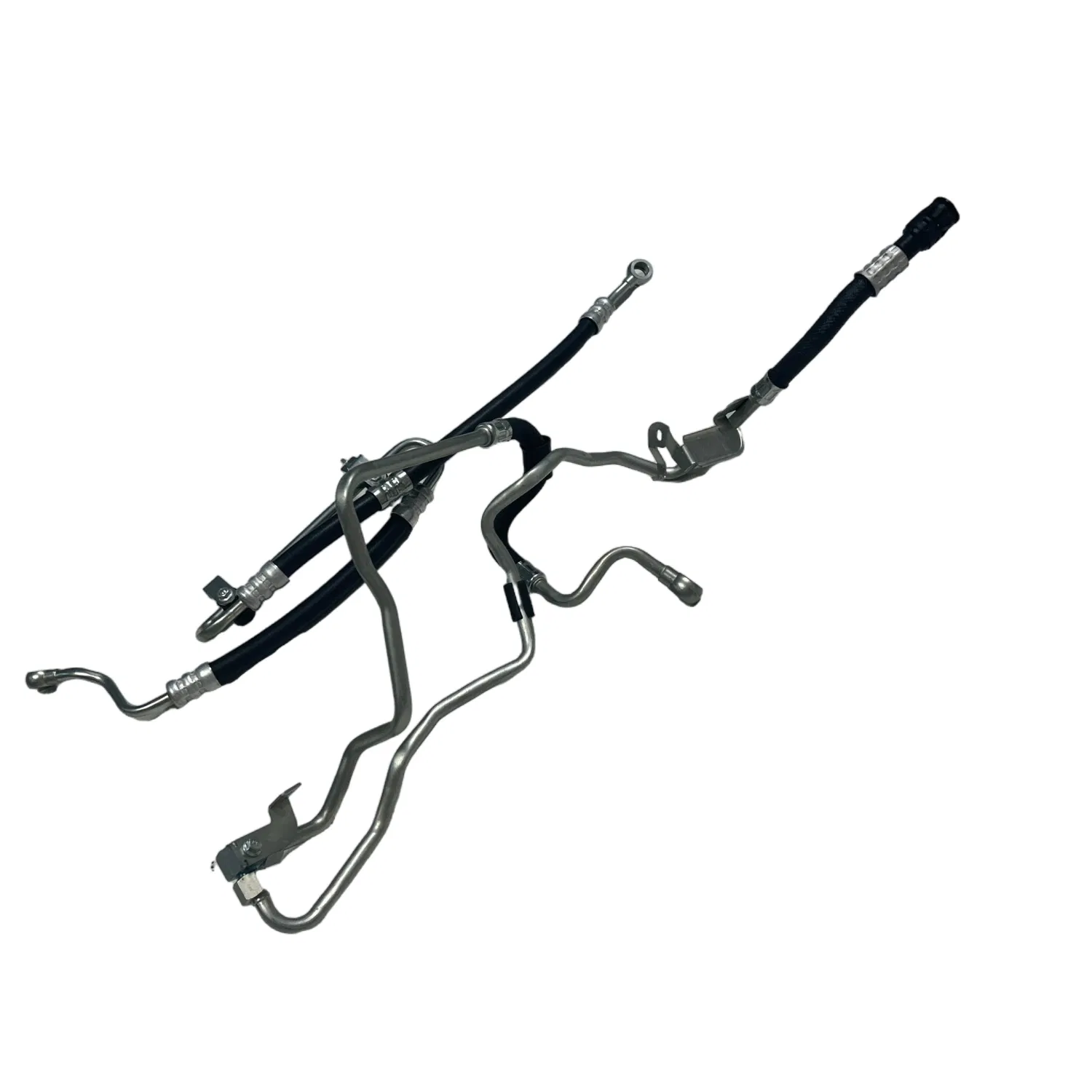

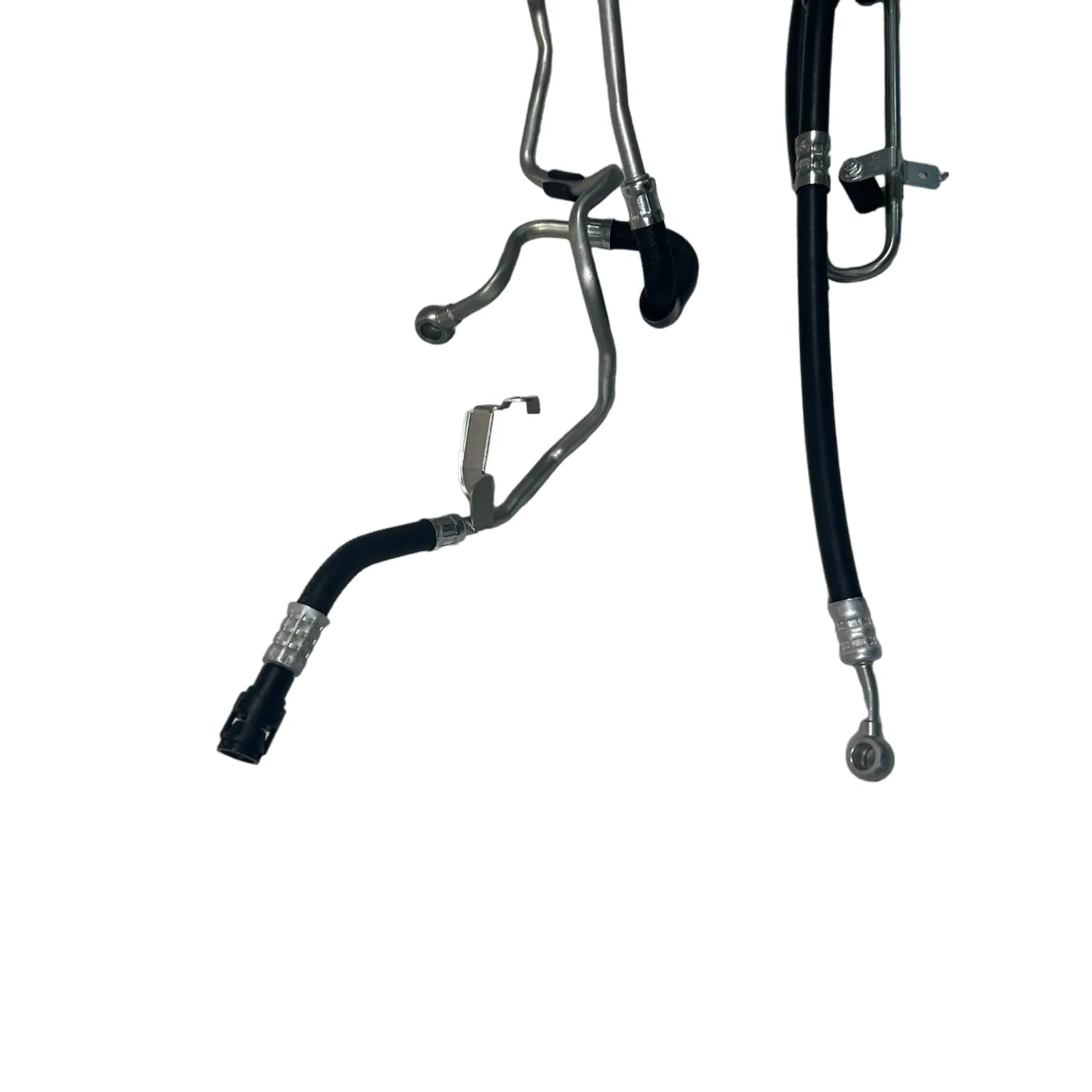

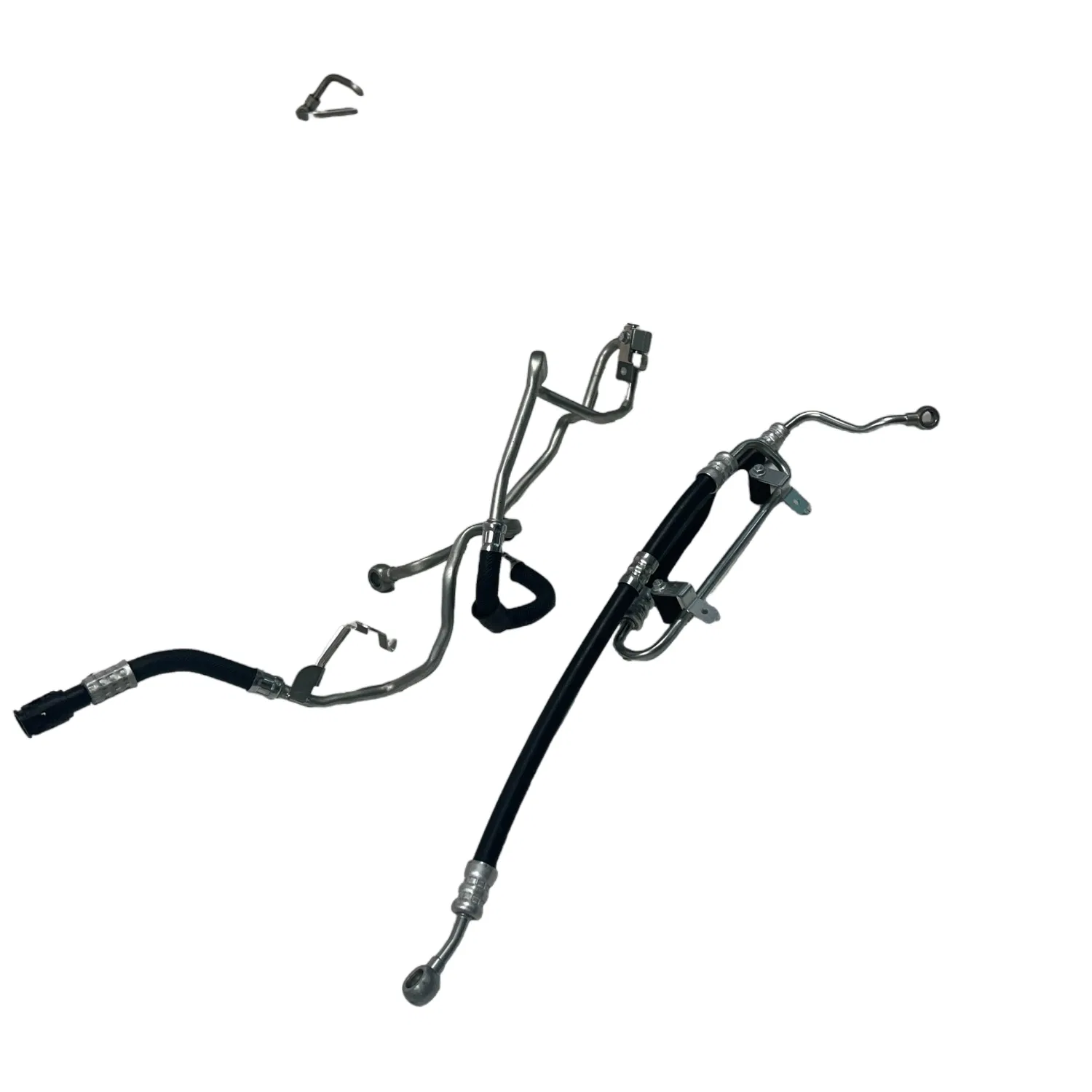

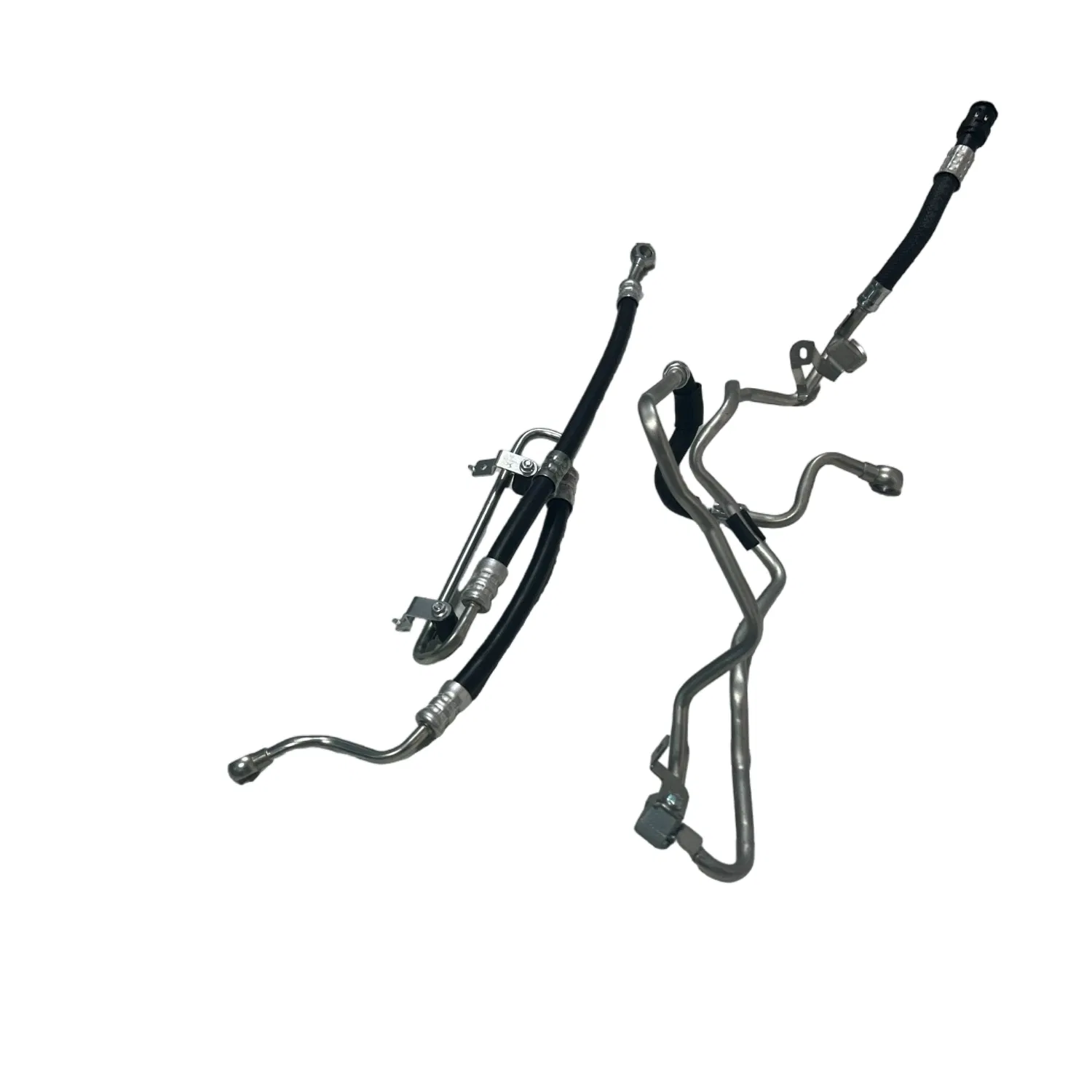

Product Detailed Display
Frequently Asked Questions
Can you produce hoses according to specific samples?
Yes, we have the capability to produce components according to your physical samples or technical drawings.
What is the standard sample policy?
Usually, samples are provided free of charge; however, the customer is responsible for the associated shipping costs.
What are the common payment terms for orders?
Our standard terms are 30% by telegraphic transfer (T/T) as a deposit, with the remaining 70% due before delivery or against documentation copies.
What is the typical delivery lead time?
Generally, the delivery time is approximately 45 days, depending on the specific items and the total quantity of the order.
Are products inspected before they are shipped?
Yes, all goods undergo 100% visual inspection and rigorous performance testing before delivery to ensure quality.
What delivery terms do you support?
We support various international delivery terms including FOB, CIF, EXW, and CFR.
