Application: Flexible line used for the delivery of water-based, oil-based, acid-based and foam fracturing fluids under high pressure in acid, sand and hydraulic fracturing works.

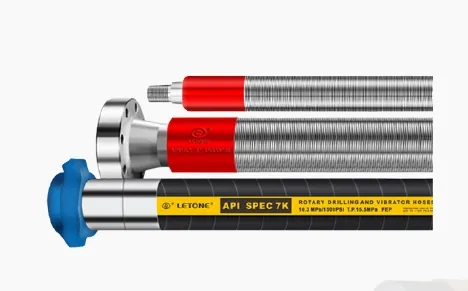

Application: Flexible connection between the upper end of the standpipe and the top drive/swivel for pumping mud at high pressure in oil drilling and cementing operations.

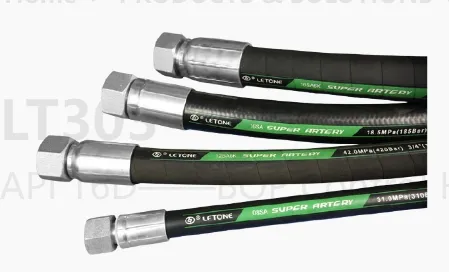

Application: Hydraulic control line for remote control of the blowout preventer (BOP) at high pressure.
| Size (inch) | I.D. (mm) | O.D. (mm) | W.P. (psi) | P.P. (psi) | Min.B.R. (m) | W.T (kg/m) | Volume (bbl/min) |
|---|---|---|---|---|---|---|---|
| 2" | 32 / 44 / 51 | 81 - 107 | 15000 | 22500 | 1.2 - 1.4 | 11.5 - 20 | 4.5 - 12 |
| 2.5" | 58 / 64 | 122 - 126 | 15000 | 22500 | 1.5 | 24 - 27 | 15 - 18.5 |
| 3" | 69 / 76 | 135 - 145 | 15000 | 22500 | 1.6 | 30 - 35 | 21.5 - 26 |
| 4" | 89 / 102 | 164 - 179 | 15000 | 22500 | 2.0 | 52 - 60 | 36 - 47 |
| 5" | 120 / 127 | 208 - 216 | 15000 | 22500 | 2.1 | 80 - 86 | 65 - 73 |
| 6" | 152 | 255 | 15000 | 22500 | 2.3 | 125 | 104.5 |

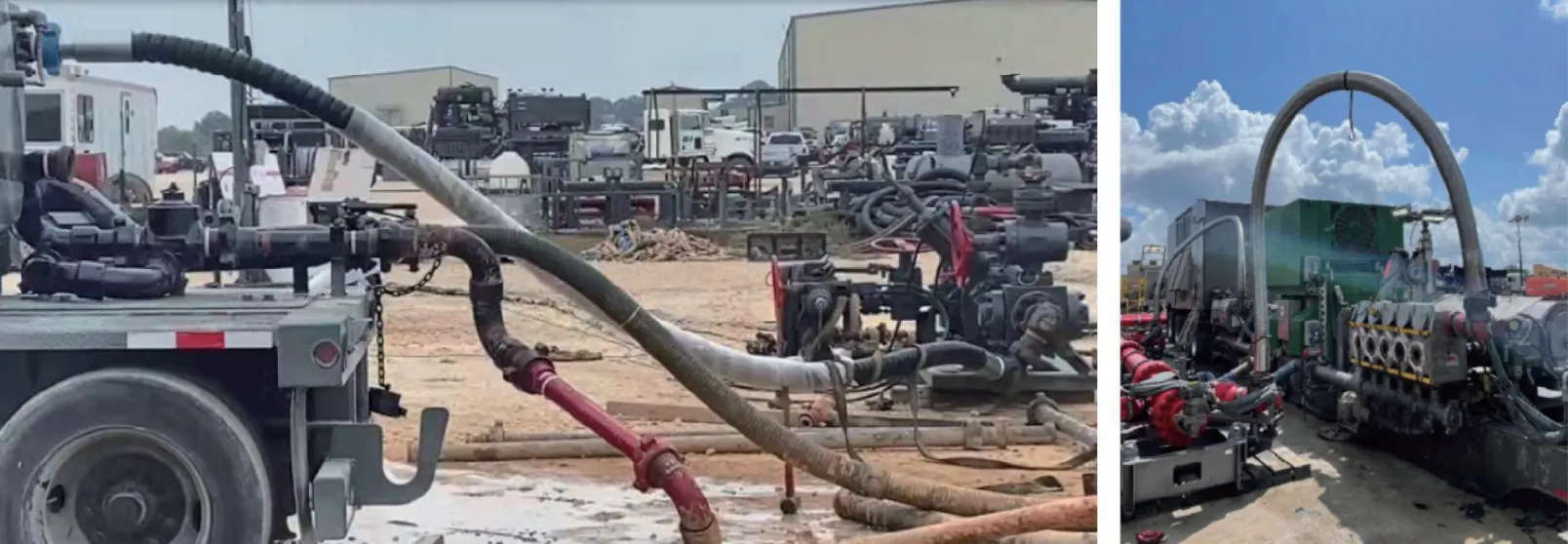

Flex-Frac solution on a project in Houston, USA.

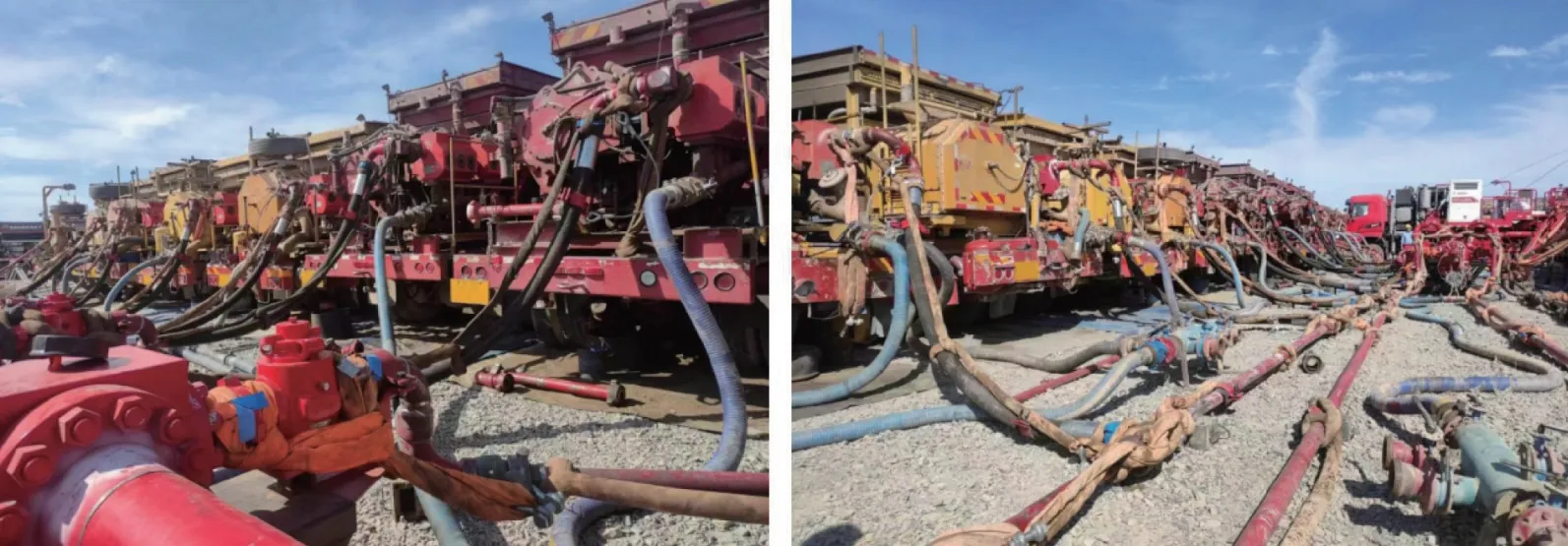

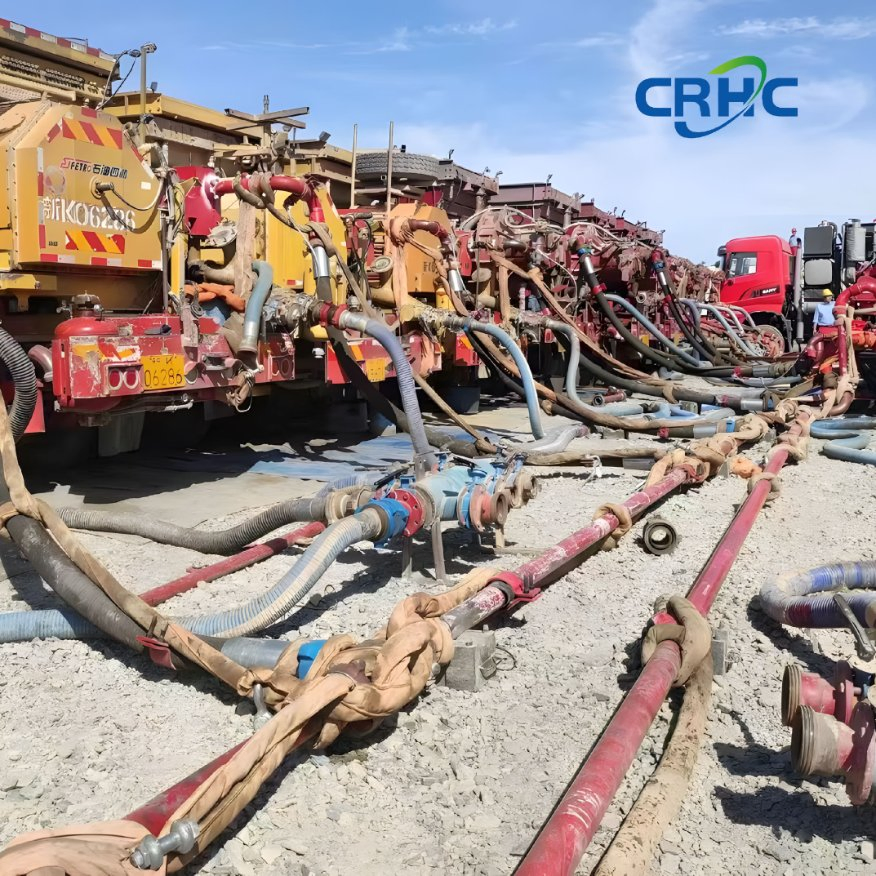

Flex-Frac solution on a project in Tuha oilfield, China.
