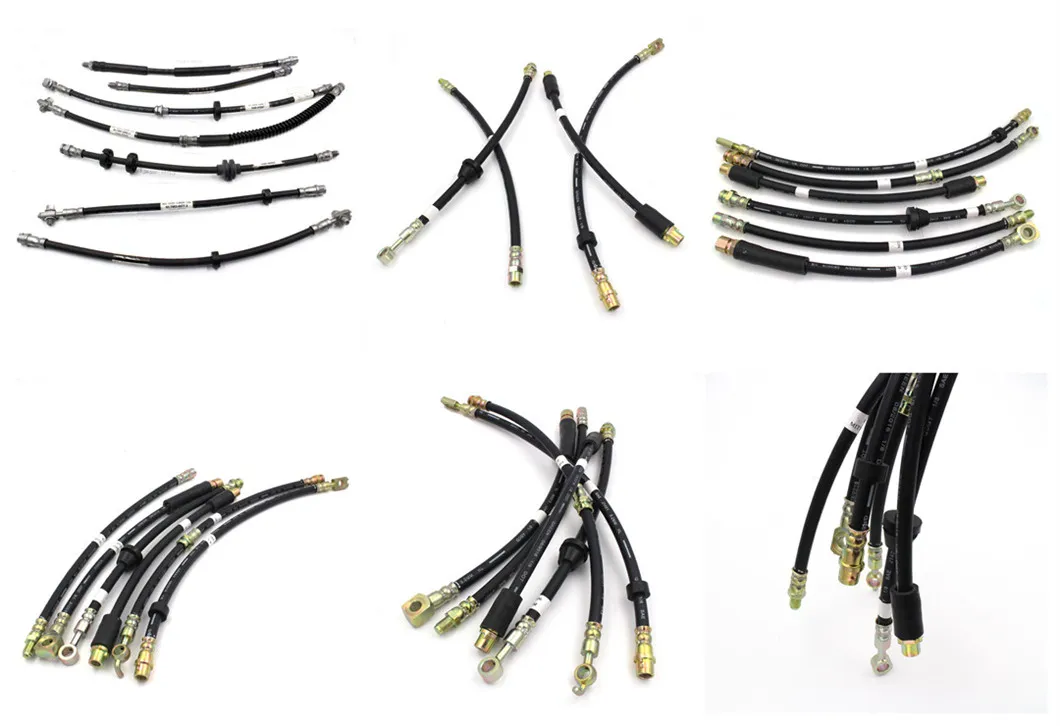

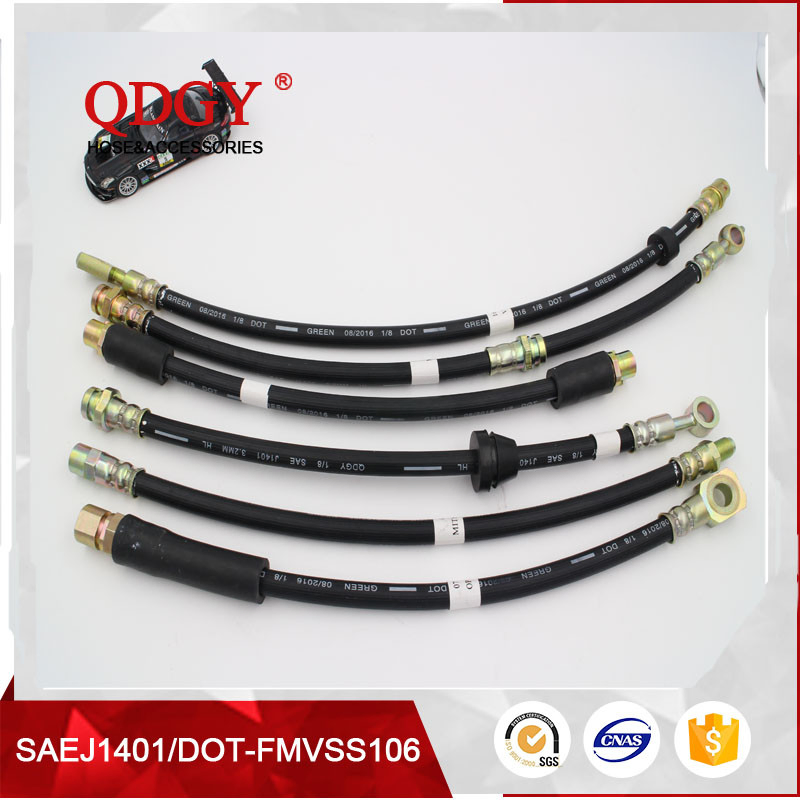

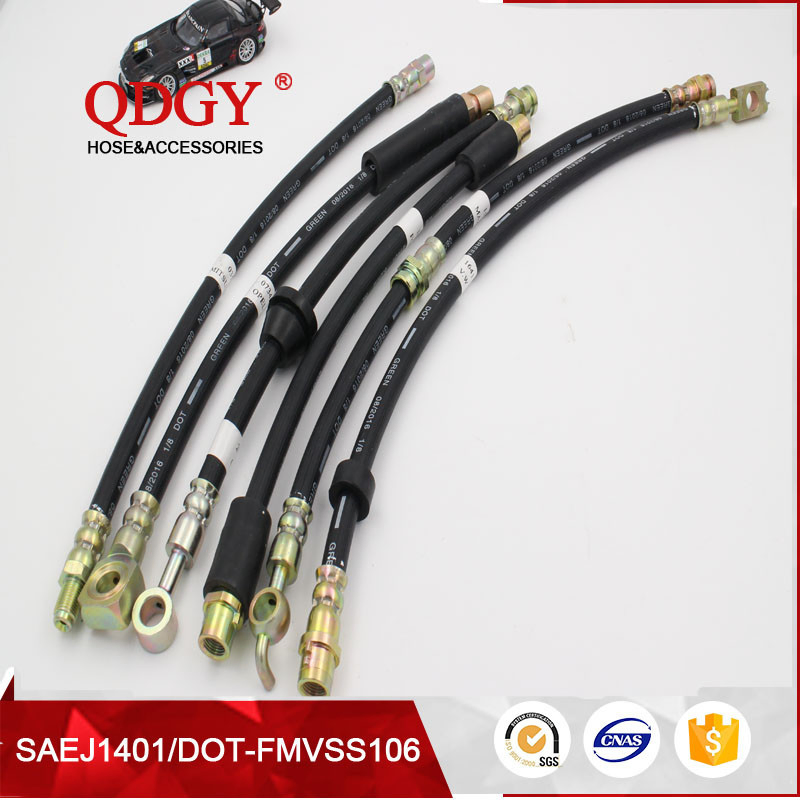

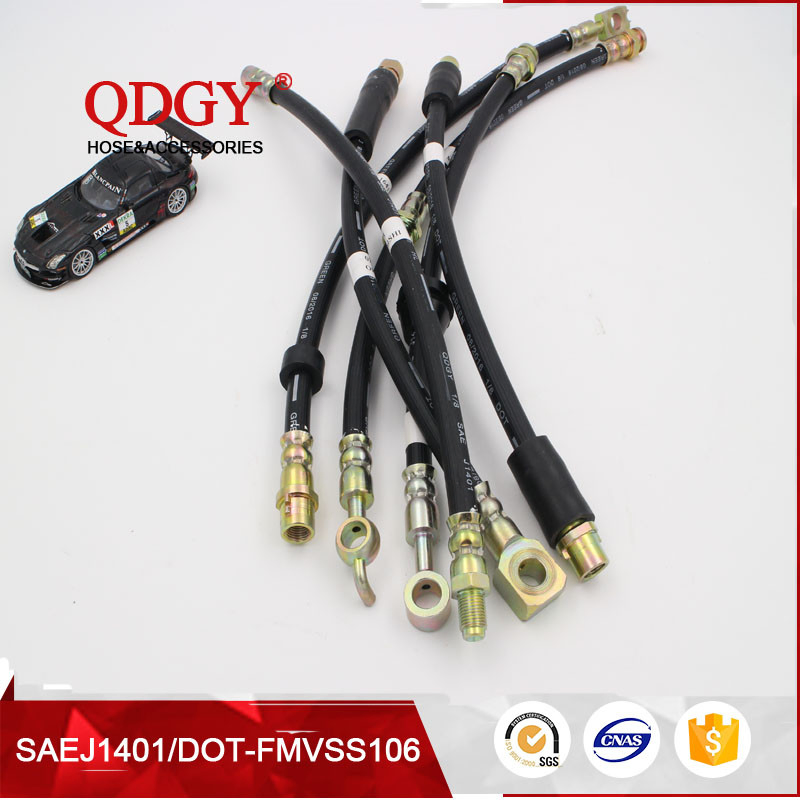

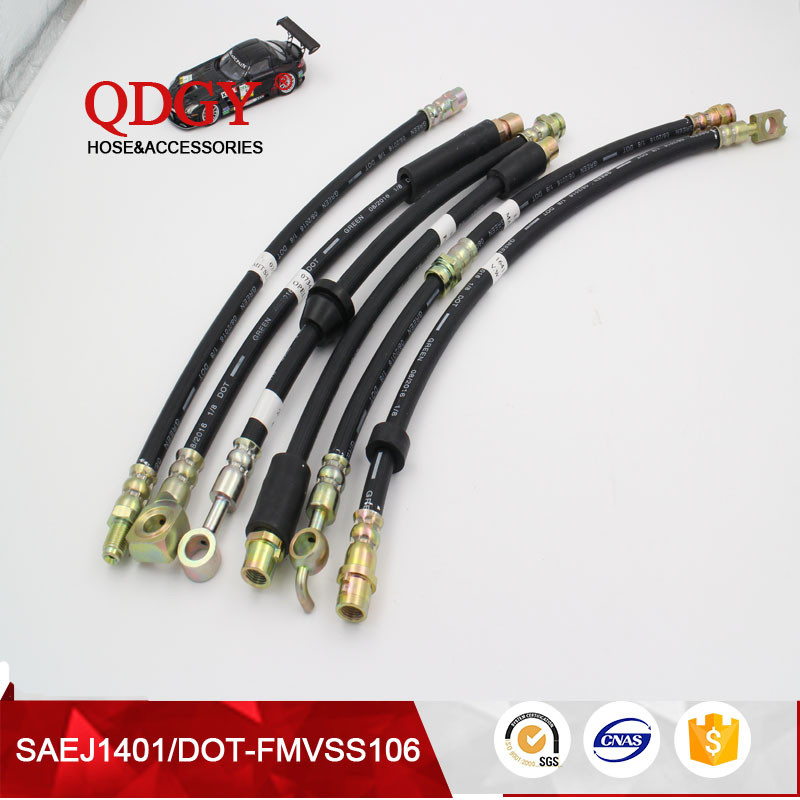

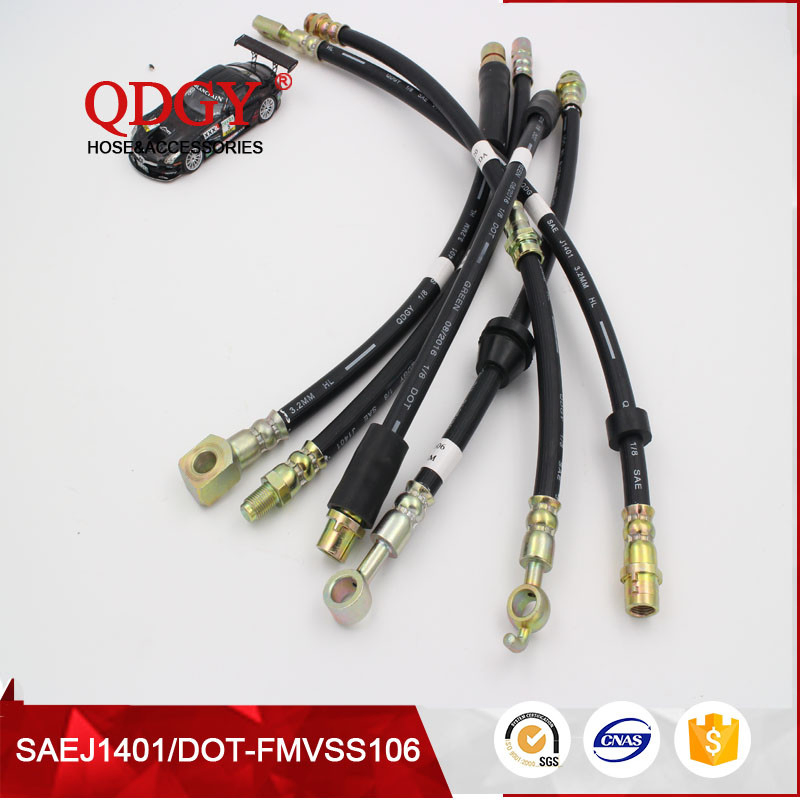

Automotive Fluid Transfer Hydraulic Brake Hoses
High-performance rubber brake hoses designed for industrial and automotive applications. Our products meet rigorous global standards to ensure maximum safety and durability in extreme environments, maintaining flexibility even at -50°C.

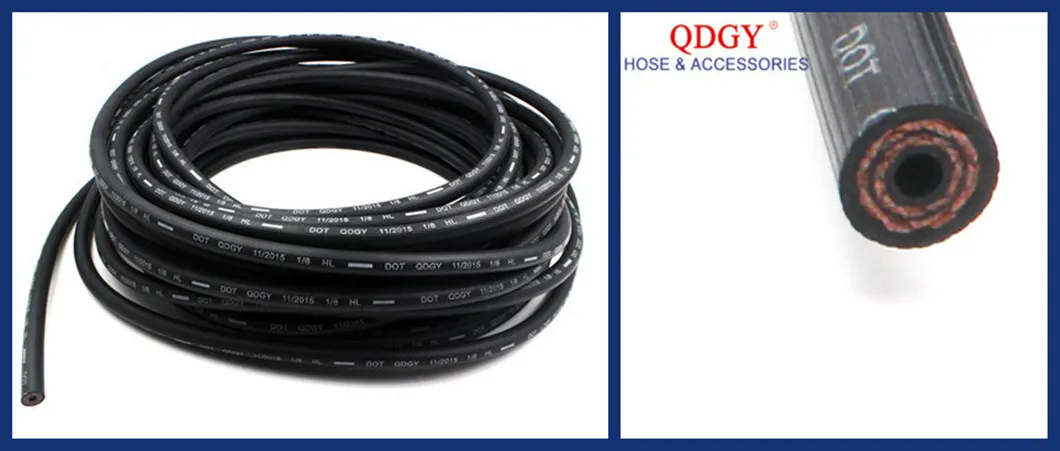

| Inner Diameter | Outer Diameter | Outer Layer | Double Braid | Inner Layer |
|---|---|---|---|---|
| 1/8" (3.2mm) | 0.413" (10.5mm) | EPDM | PVA+PVA OR PET+PET | EPDM |
| 3/16" (4.8mm) | 0.492" (12.5mm) | EPDM | PVA+PVA OR PET+PET | EPDM |
| Test Items | Test Conditions | Standard Requirement | Test Result |
|---|---|---|---|
| Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
| Burst | 4000psi × 2min | >7000psi No seepage | > 10500psi |
| Tensile | Speed: 218±3mm/min | >1446N | 2400N |
| Cold Bend | -45°C ~ -48°C × 72h | No cracking | Pass |
| Salt Spray | 5% NaCl, 24h | No red rust | Pass |
