Applications:

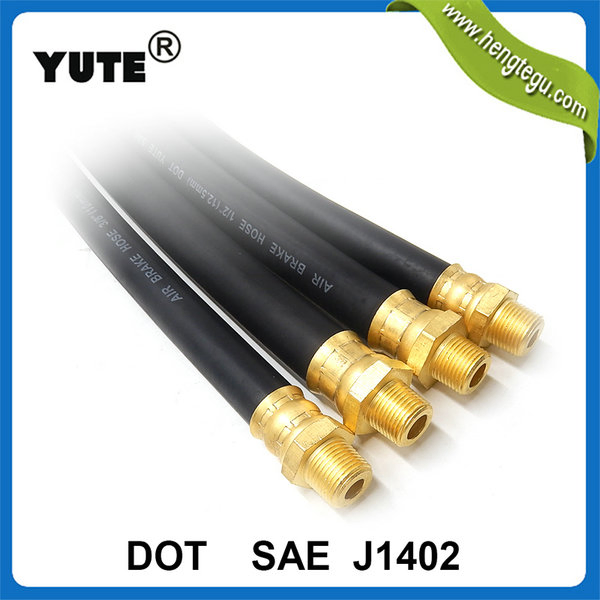

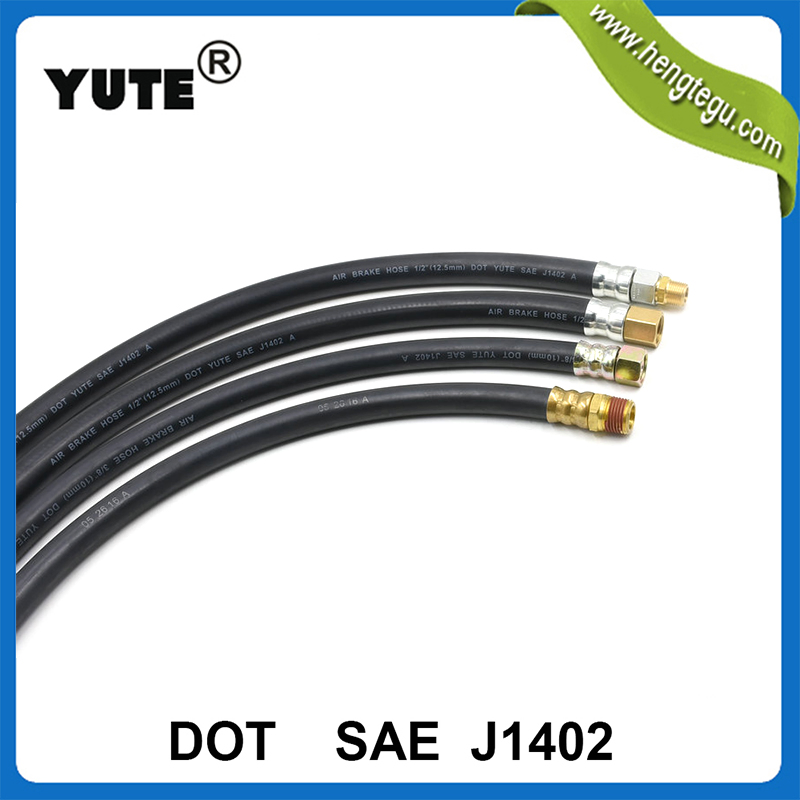

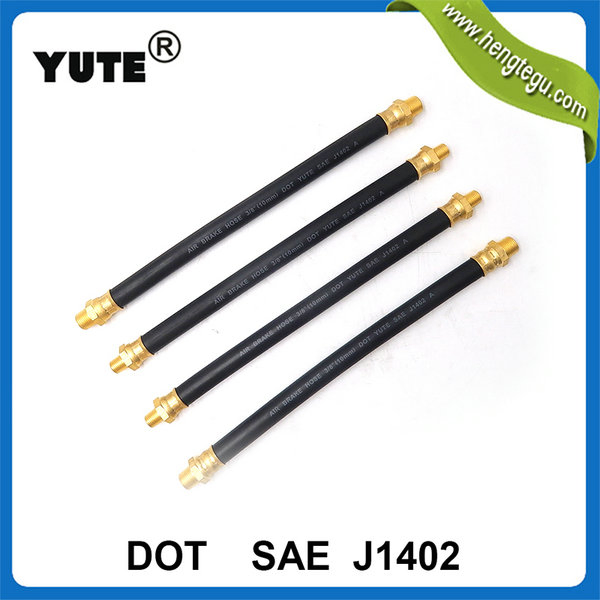

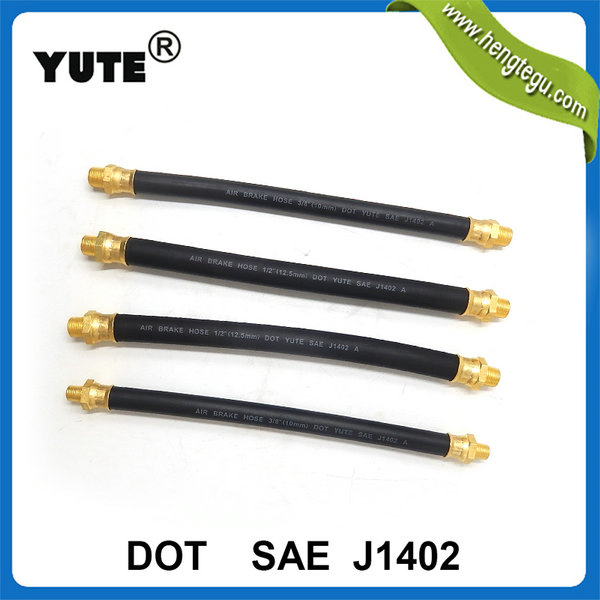

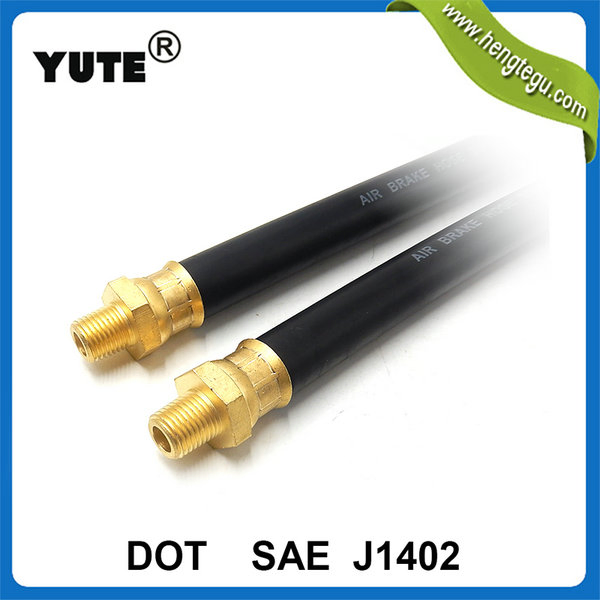

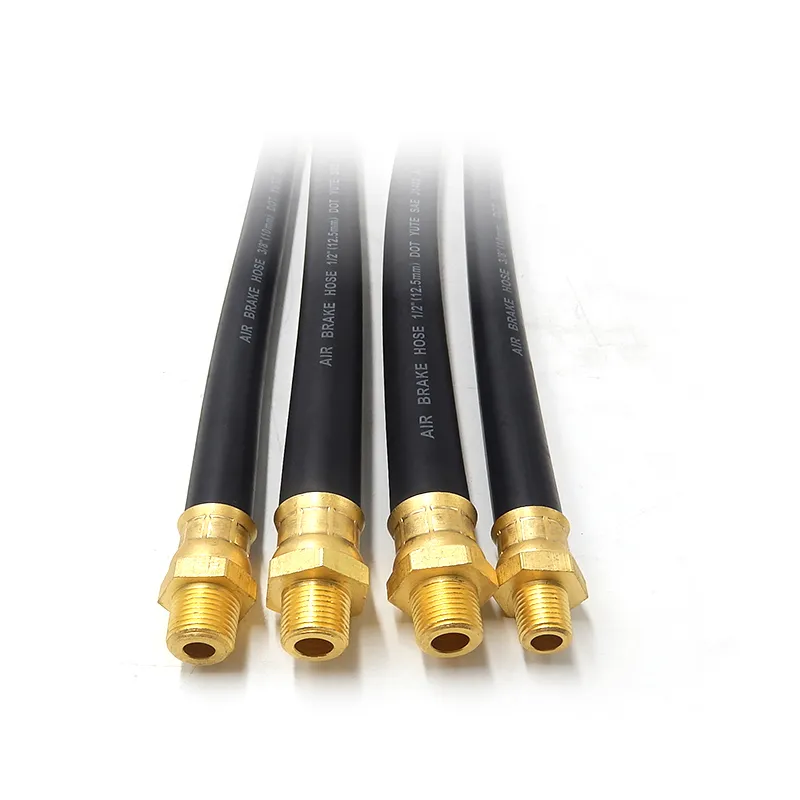

Used for heavy duty truck, lorry, semi trailer, trailer and bus's air brake system for braking. It is certified to meet SAEJ1402 / Fmvss 106 requirements.
Construction Details:
| No | I.D | O.D | W.P | B.P | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | Tolerance | inch | mm | Tolerance | Bar | PSI | Bar | PSI | |
| 1 | 1/4 | 6.3 | ±0.3 | 19/32 | 15 | ±0.5 | 15.5 | 225 | 62 | 900 |
| 2 | 5/16 | 8.0 | ±0.4 | 43/64 | 17 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 3 | 3/8 | 9.5 | ±0.5 | 3/4 | 19 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 5 | 1/2 | 12.5 | ±0.5 | 29/32 | 23 | ±0.7 | 15.5 | 225 | 62 | 900 |
| 6 | 5/8 | 16.0 | ±0.6 | 1-1/16 | 27 | ±0.8 | 15.5 | 225 | 62 | 900 |
The manufacturer is committed to the development and production of automobile piping systems, used in automobile transmission, chassis, and cooling systems. The facility passed ISO/TS 16949:2009 quality management system certification in 2014. Product certifications include CCC, ROHS, DOT, AMECA, and CE.

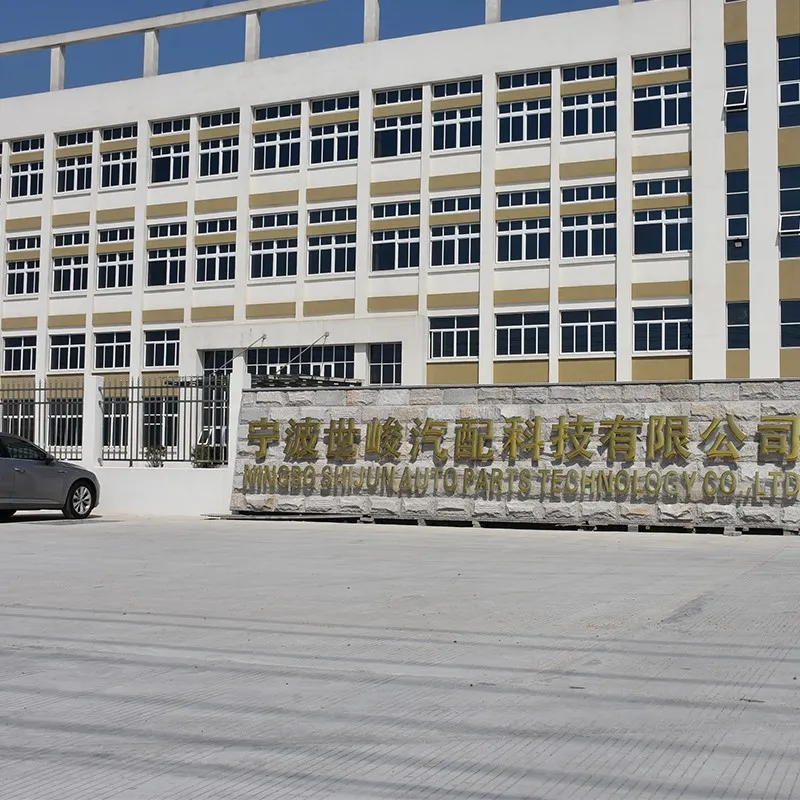

Equipped with a research and development center, an inspection & testing center for hoses, and an automated rubber mixing center, the high-end hardware configuration ensures consistency and stability in the production process. Research and development are based on SAE and DIN standards. All products pass qualification certifications from third-party laboratories.
