Product Description

📊 Basic Information
Model NO.
ZPU
Flow Rate
Variable Pump
Type
Fuel Injection Pump
Drive
Electric
Performance
High Pressure
Package
Plywood
Specification
50kg
Origin
China
HS Code
8413502090
Capacity
1000
📝 Product Description

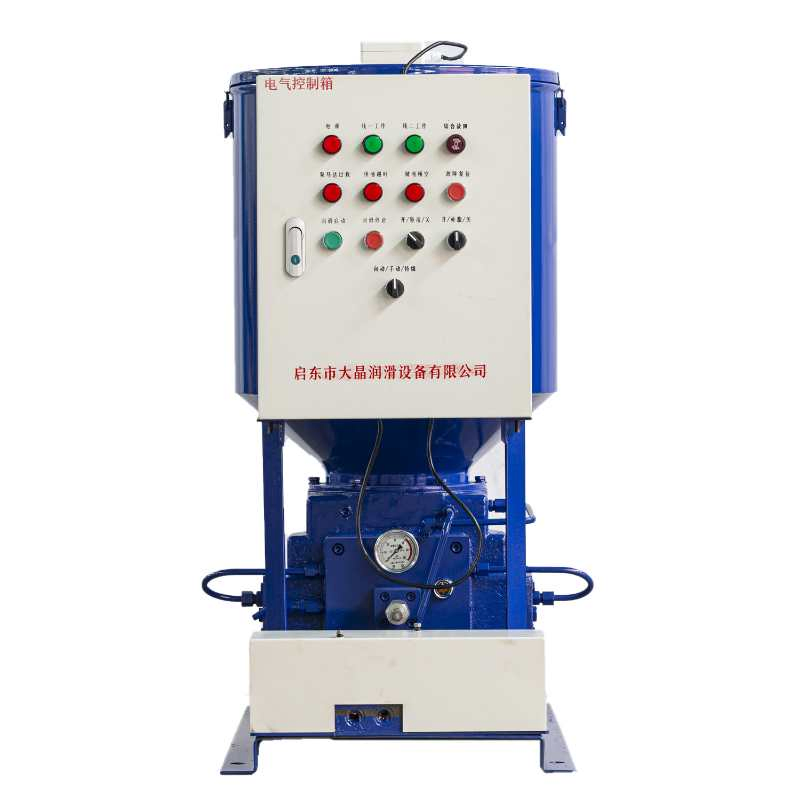

ZPU electric grease lubrication pump is designed for demanding industrial applications. It is highly applicable to high lubricant frequency and dense lubrication points. This robust pump is used to supply grease in both 40 MPa pressure dual line and single line centralized lubrication systems.

💡 Versatile Application: Also applicable to low oil frequency, fewer lubrication points, and large oil pump capacity requirements. The unit is easily portable when fitted with wheels, tubes, oil guns, and wires.

Operating Conditions:

  • Lubricants: Grease with penetration of no less than 265 (25°C, 150g) 1/10mm and lubricant oils with viscosity of no less than N68.
  • Temperature Range: From -20°C to 80°C.
⚙️ Technical Parameters
Model Pressure (MPa) Flow Rate (ml/time) Tank (L) Motor (kw) Weight (kg)
ZPU-08G 40 133 40 0.55 76
ZPU-14G 40 233 60 0.75 84
ZPU-24G 40 400 100 1.5 92
🖼️ Product Gallery

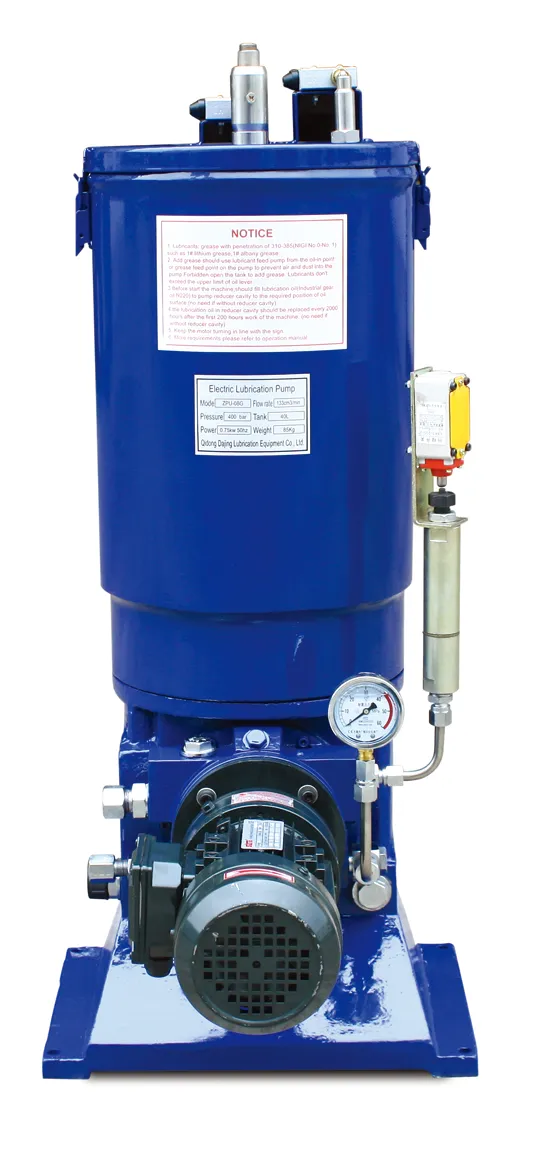

ZPU Pump Detail 1

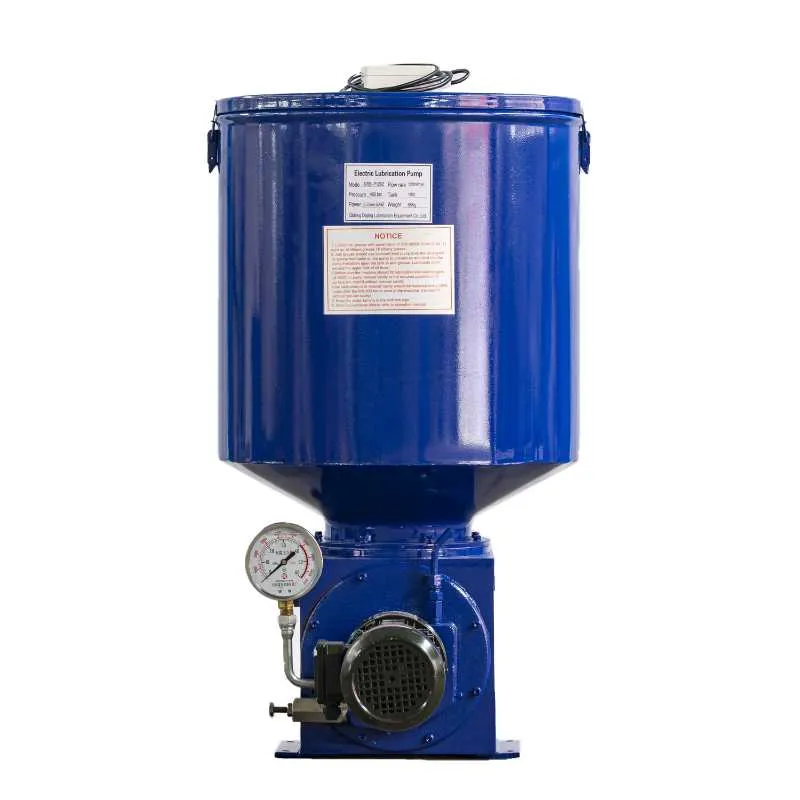

ZPU Pump Detail 2

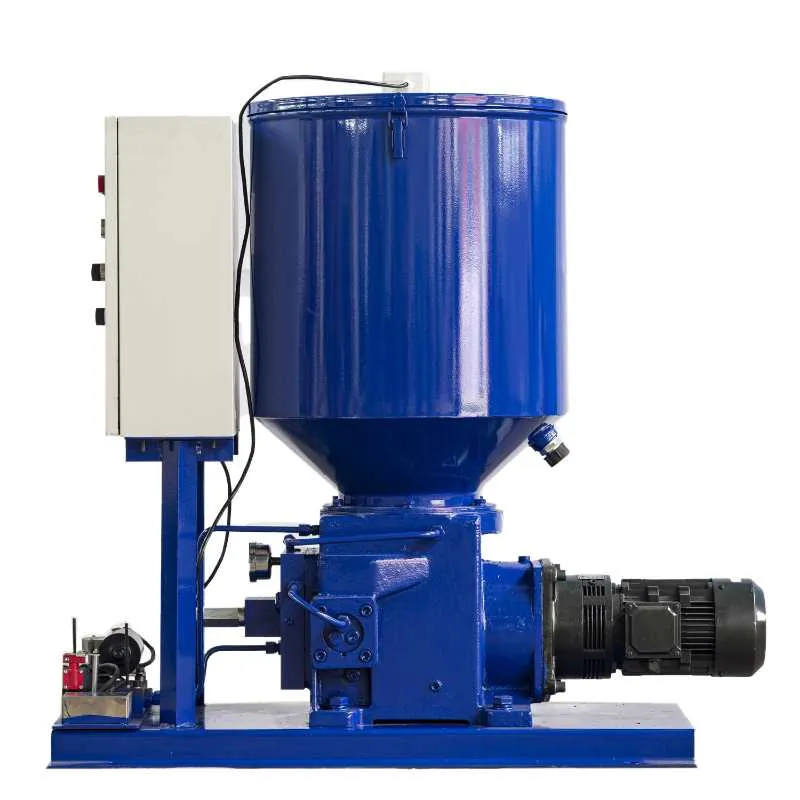

ZPU Pump Detail 3
ZPU Pump Detail 4

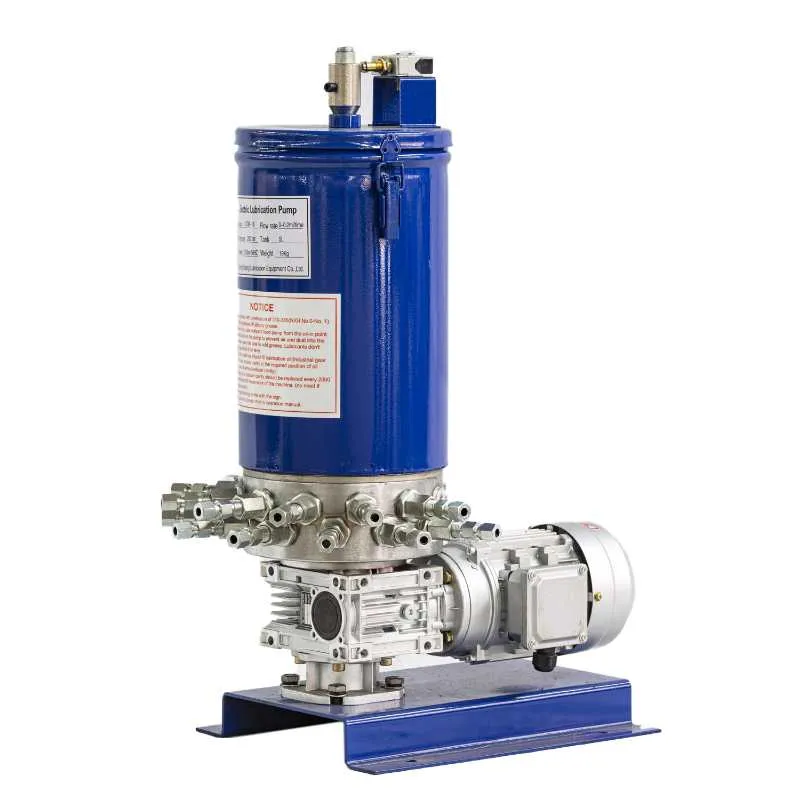

ZPU Pump Detail 5

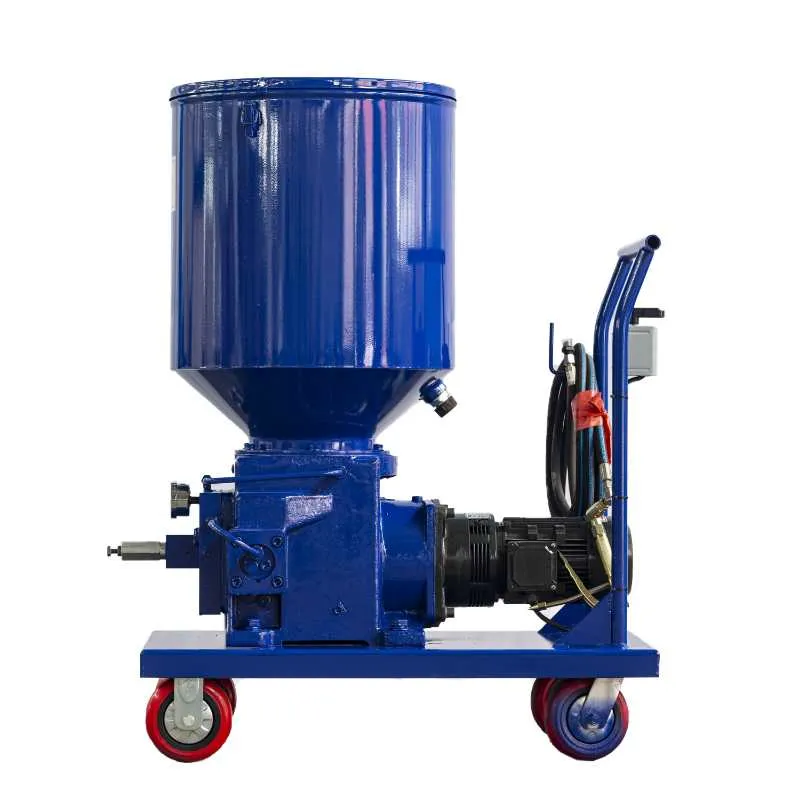

ZPU Pump Detail 6
ZPU Pump Schematic
❓ Frequently Asked Questions
What is the maximum working pressure of the ZPU electric grease pump?
The ZPU series is designed for high-pressure performance, reaching a maximum pressure of 40 MPa.
Can this pump be used for both single and dual line systems?
Yes, the ZPU pump is versatile and can supply grease to both 40 MPa dual line and single line centralized lubrication systems.
What are the available tank capacities for the ZPU series?
Depending on the model, tank capacities are available in 40L (ZPU-08G), 60L (ZPU-14G), and 100L (ZPU-24G).
What type of lubricants are compatible with this pump?
It is compatible with grease having a penetration of no less than 265 (at 25°C, 150g) and lubricant oils with a viscosity of no less than N68.
What is the operating temperature range for the ZPU pump?
The pump is built to operate reliably in temperatures ranging from -20°C to 80°C.
Is the ZPU pump portable?
Yes, it is designed for easy removal and mobility when fitted with wheels, making it suitable for various on-site lubrication tasks.
