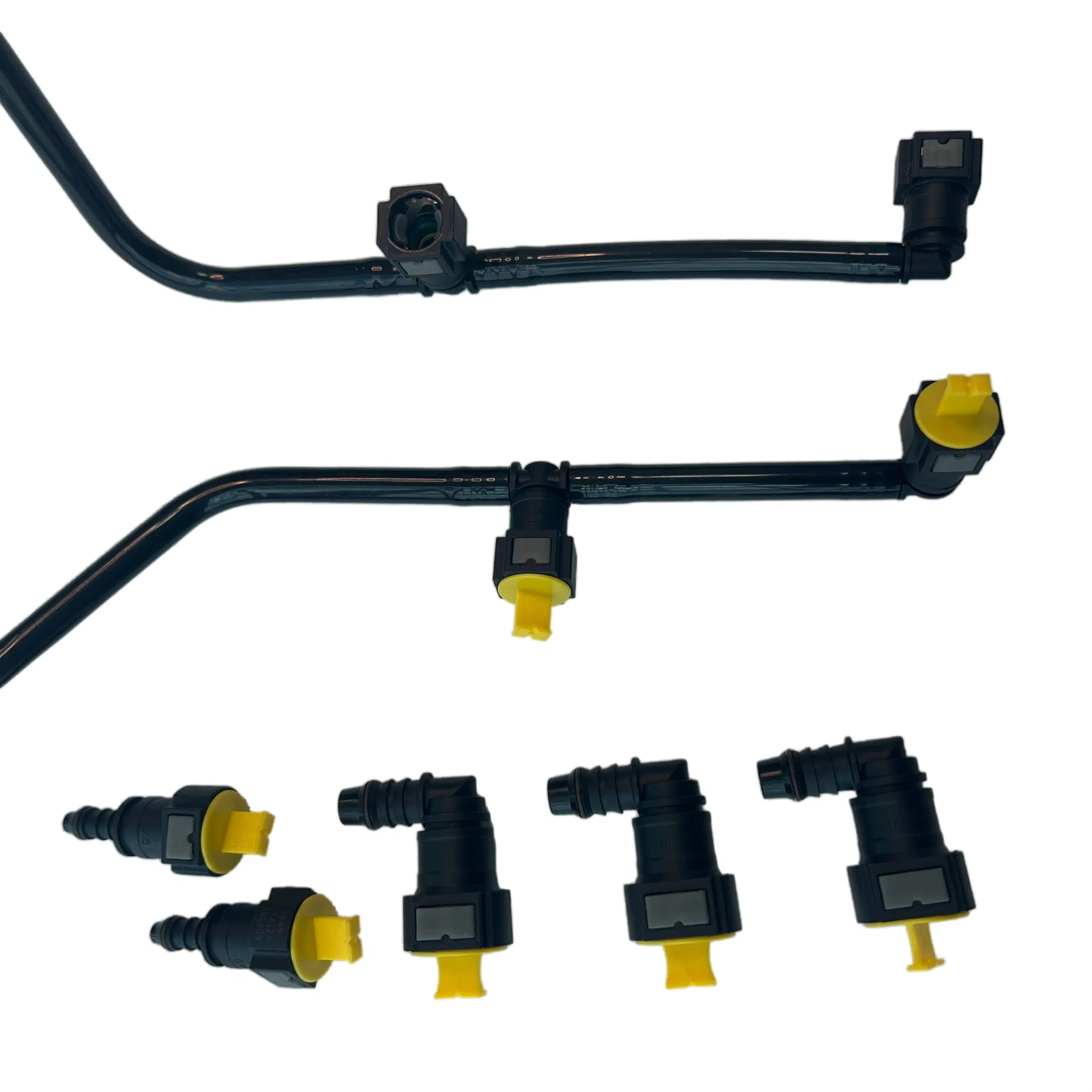

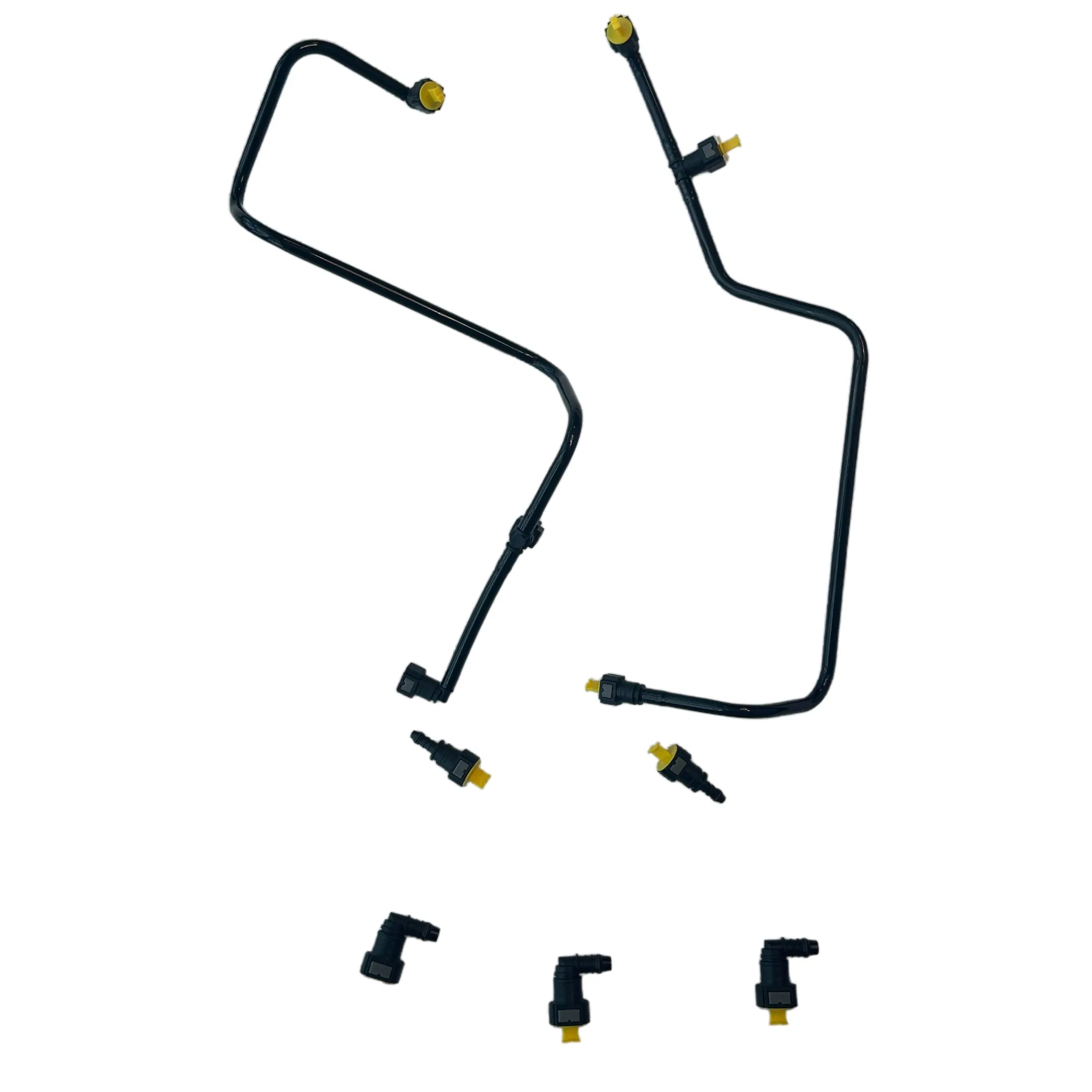

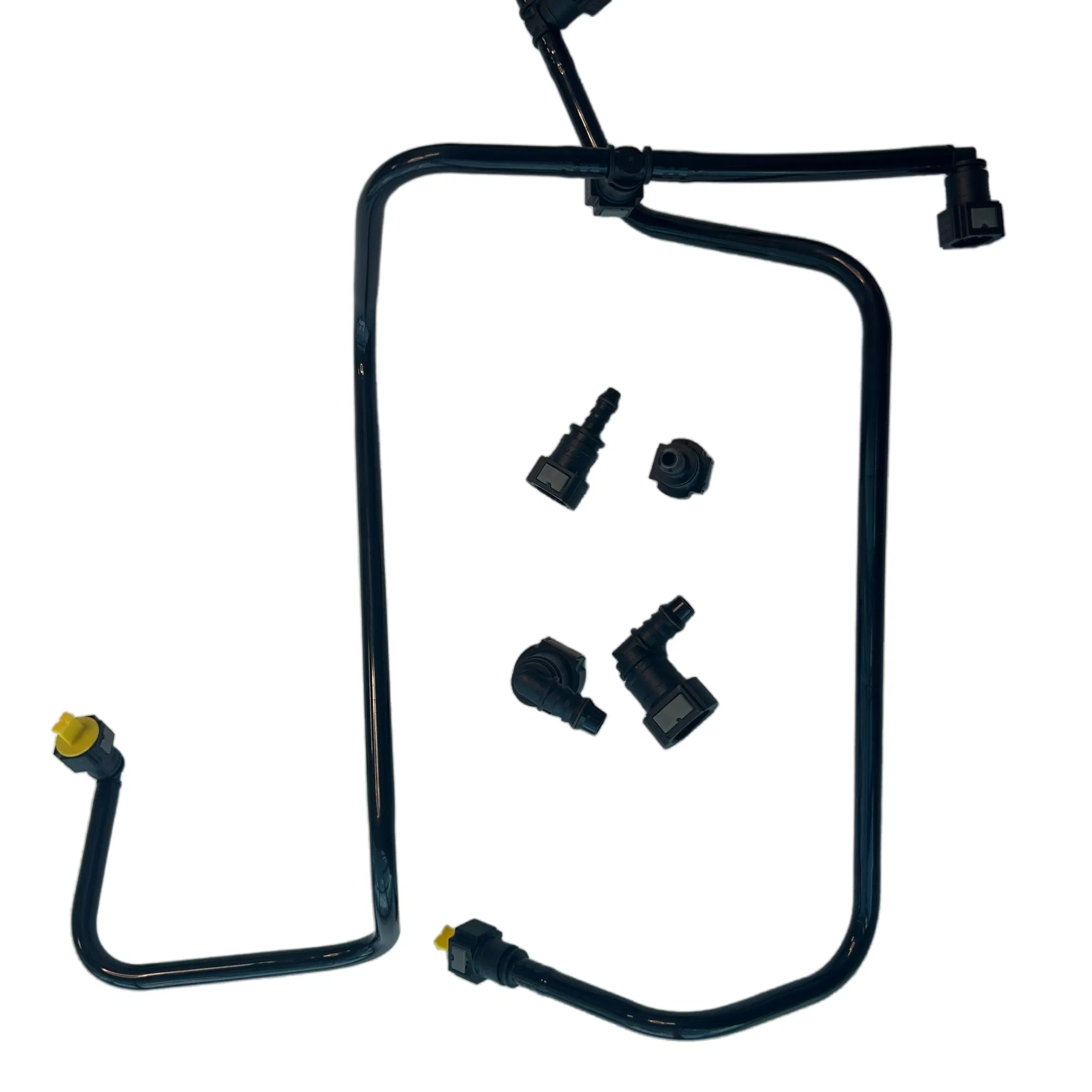

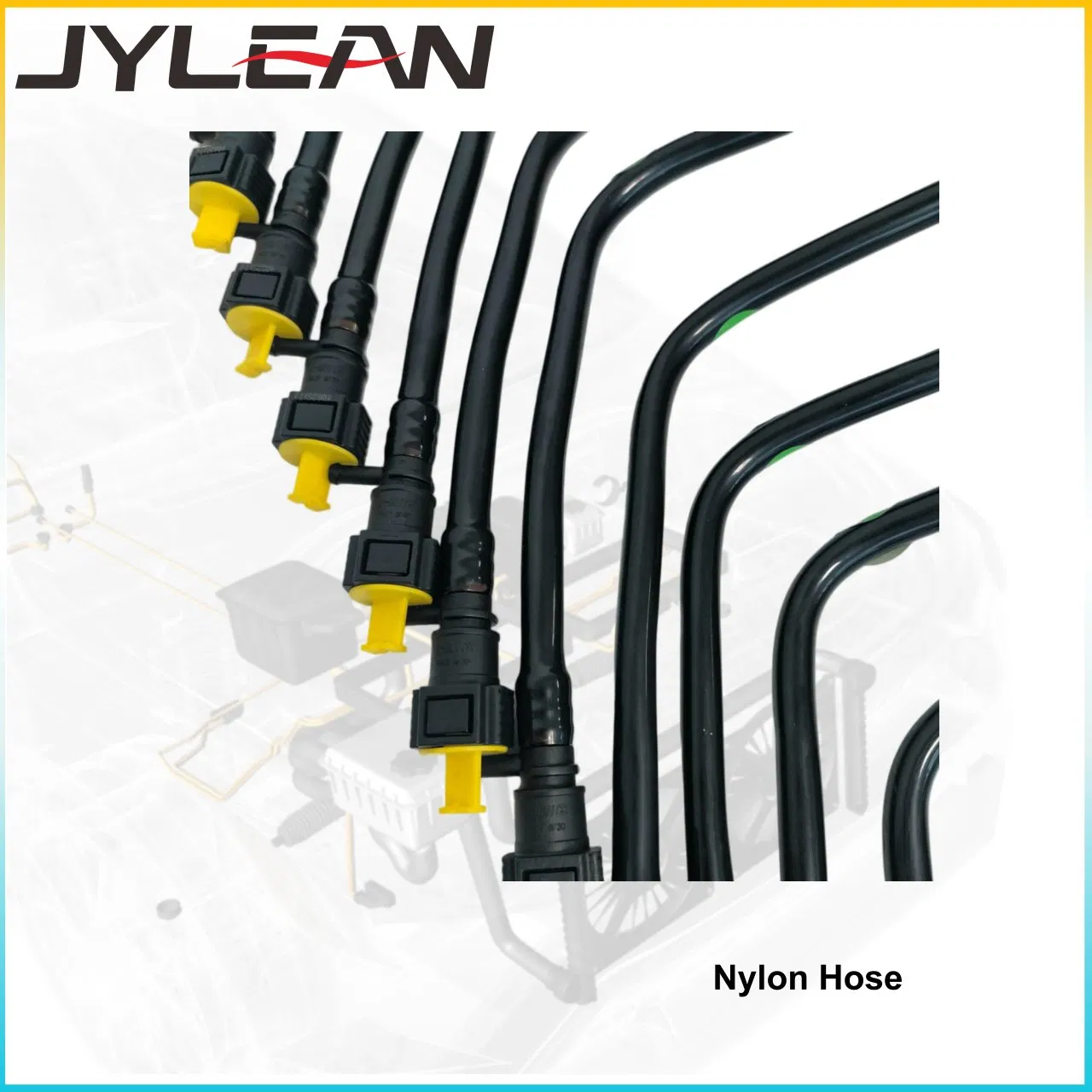

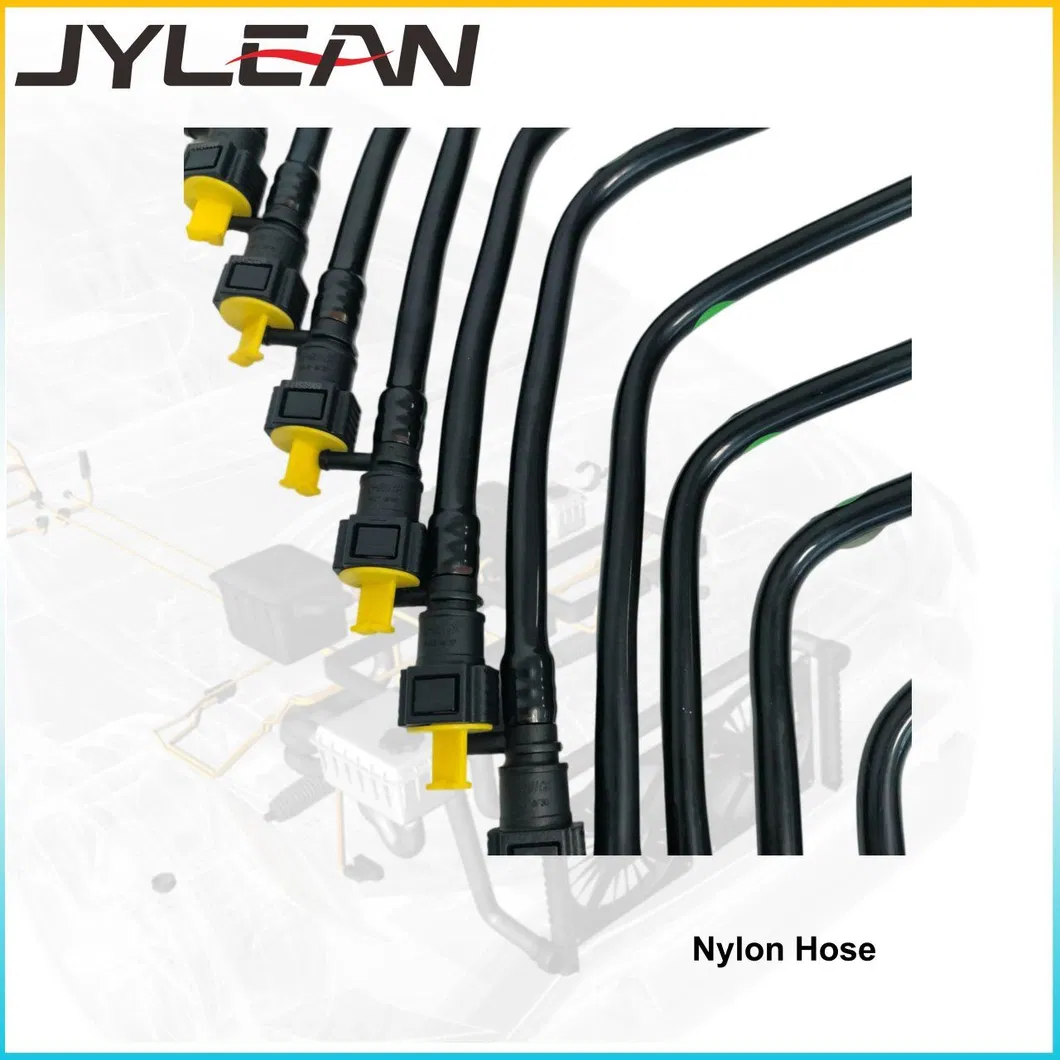

Multilayer nylon tubes are usually made of high-performance nylon materials (such as PA66, PA12, etc.), which have the characteristics of lightweight, high temperature, chemical corrosion resistance, and impact resistance.

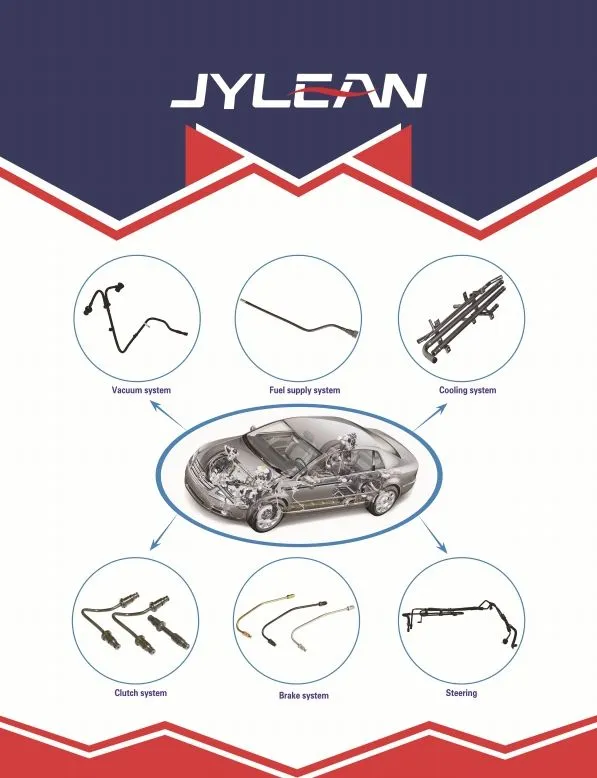

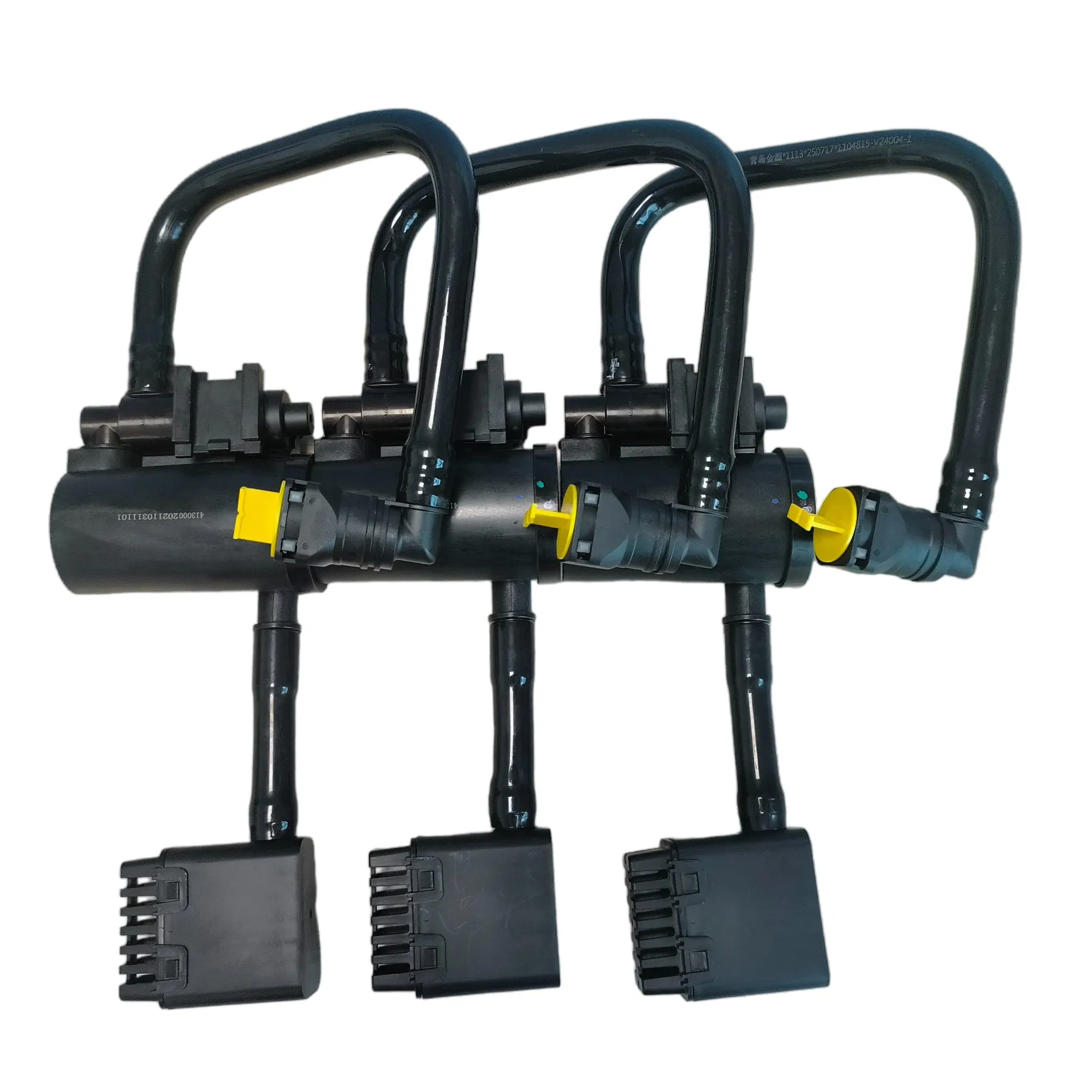

Multilayer nylon tubes are mainly used in industrial scenarios that require complex performance combinations. In the automotive field, they are widely used in new energy vehicle fluid pipelines, such as cooling in thermal management systems and battery packaging pipes, to meet lightweight and high-temperature resistance needs.
Multi-layer structure design: Improve overall performance by combining different material layers, such as nylon with rubber or metal. Replacing traditional rubber and metal pipes with nylon pipes in thermal management systems achieves a balance between lightweight and pressure resistance.
| Parameter Name | Description/Value | Parameter Name | Description/Value |
| Product Name | multilayer reinforced nylon pipe (PA12/PA6/PA66) | Working Pressure | 0.5Mpa-20mpa |
| Structure Design | Three-layer: inner (corrosion-resistant) + reinforcement (polyester/aramid) + outer (wear-resistant) | Blasting Pressure | ≥ 2 times working pressure |
| Application Scenarios | Automotive braking, pneumatic tools, hydraulic systems, industrial fluid transmission | Pulse Pressure | ≥ 1 million cycles |
| Inner Diameter (ID) | 4mm / 6mm / 8mm / 10mm (customized) | Operating Temp | -40ºC ~ +120ºC (instant up to +150ºC) |
| Outer Diameter (OD) | 8mm / 12mm / 16mm / 20mm | Brittle Resistance | -40ºC maintains flexibility |
| Wall Thickness | 1.5mm-3.5mm | Medium Resistance | Oil, weak acid and alkali, ethanol |
| Bending Radius | ≤ 4 OD (dynamic) / ≤ 2 OD (static) | Connection Type | Quick insert, threaded, flange |
