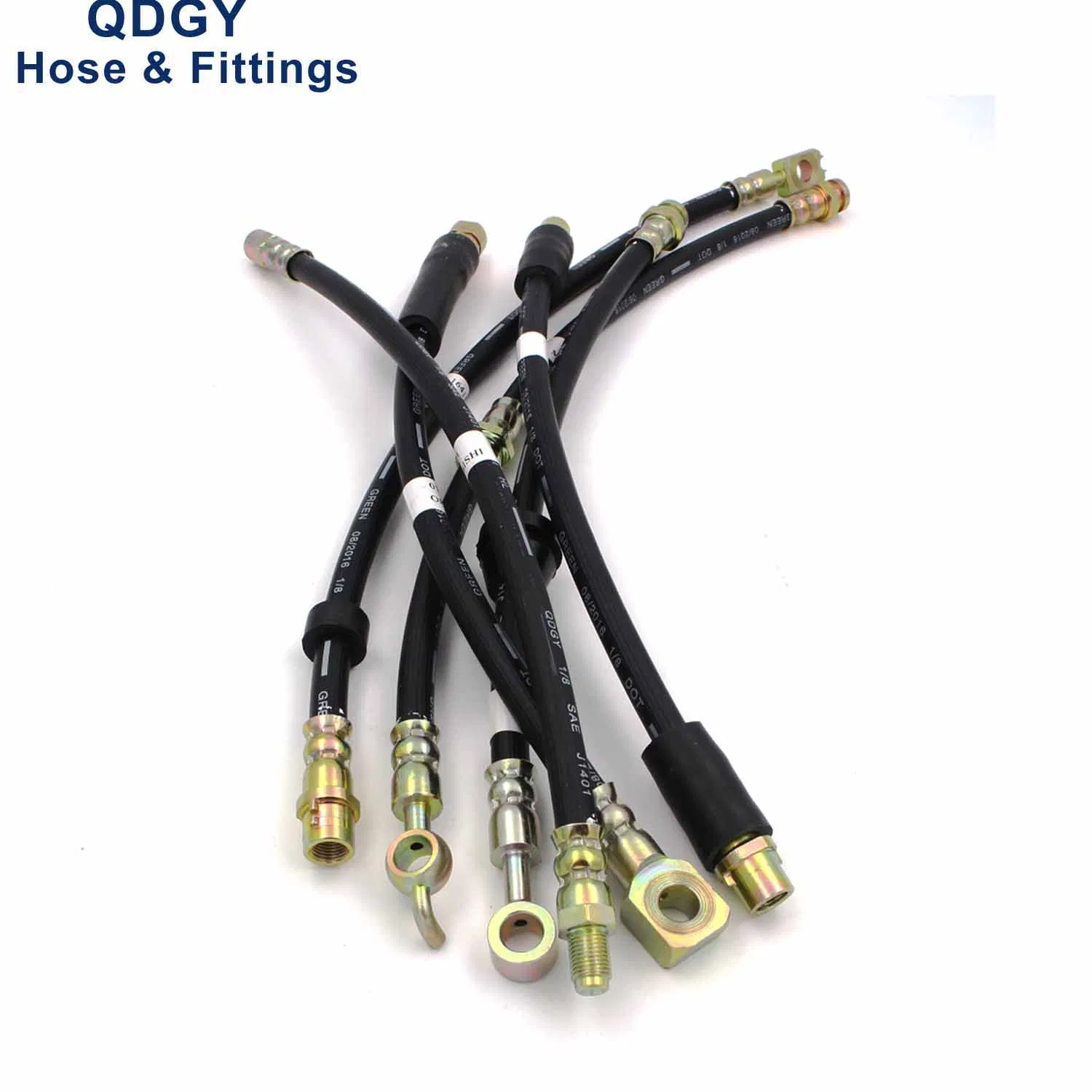

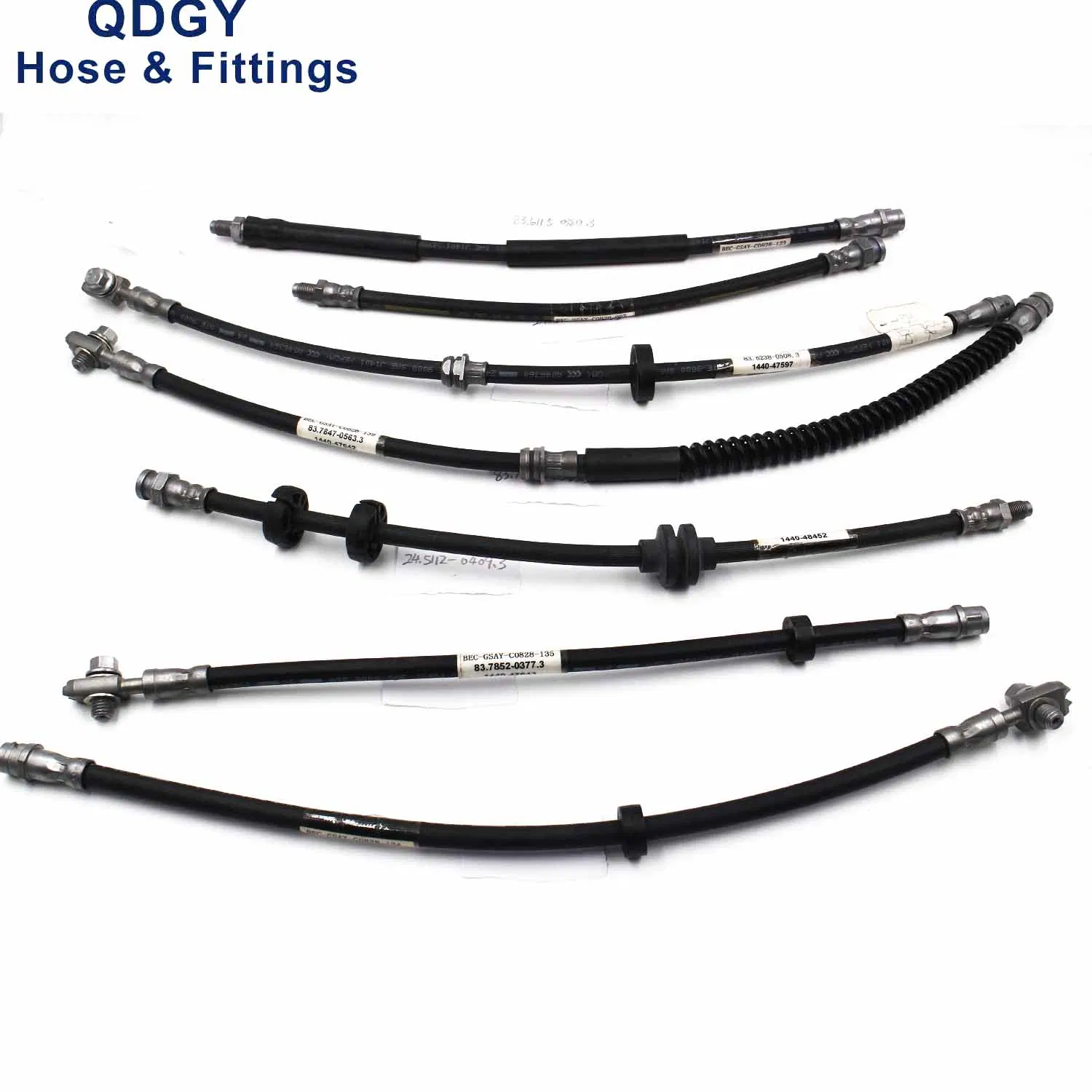

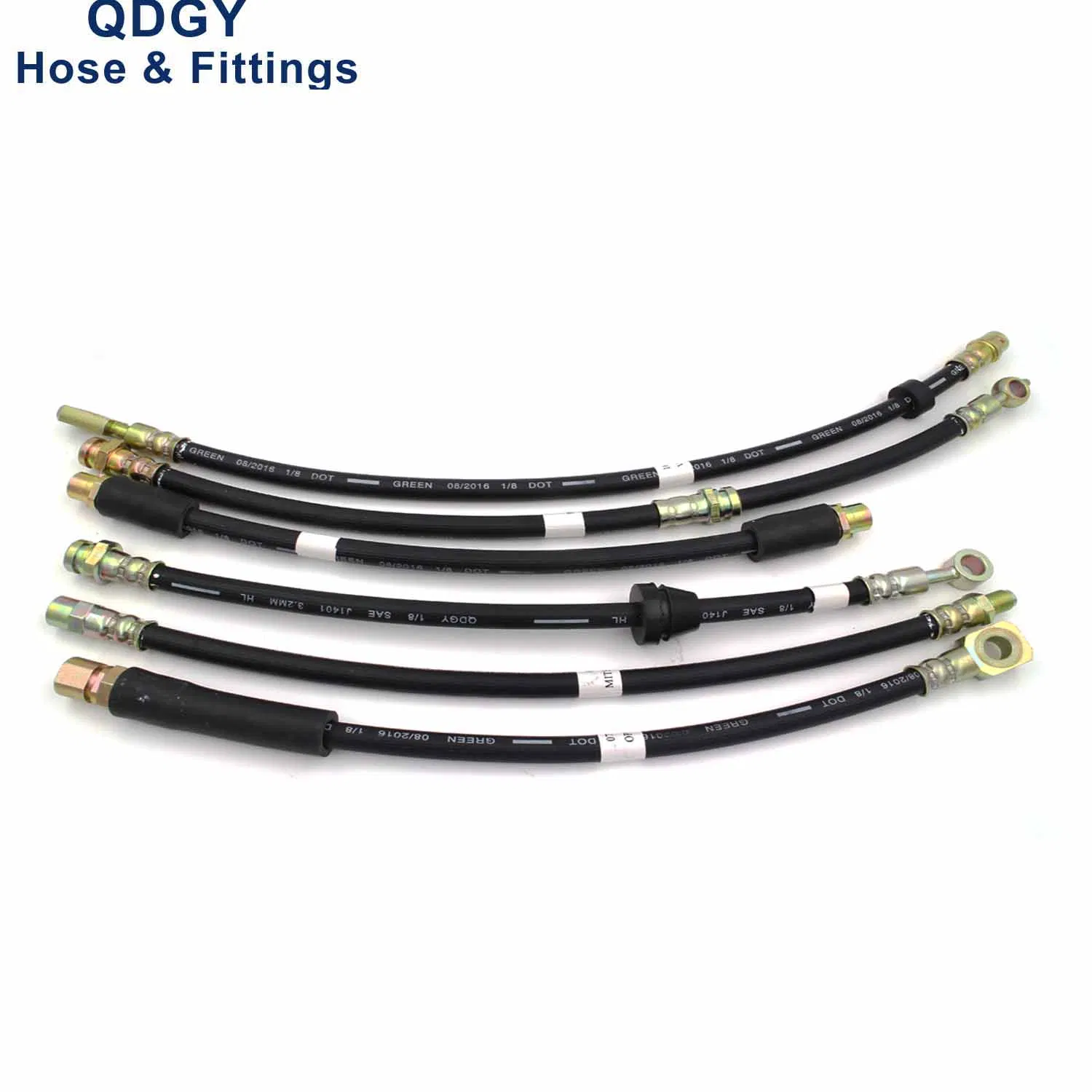

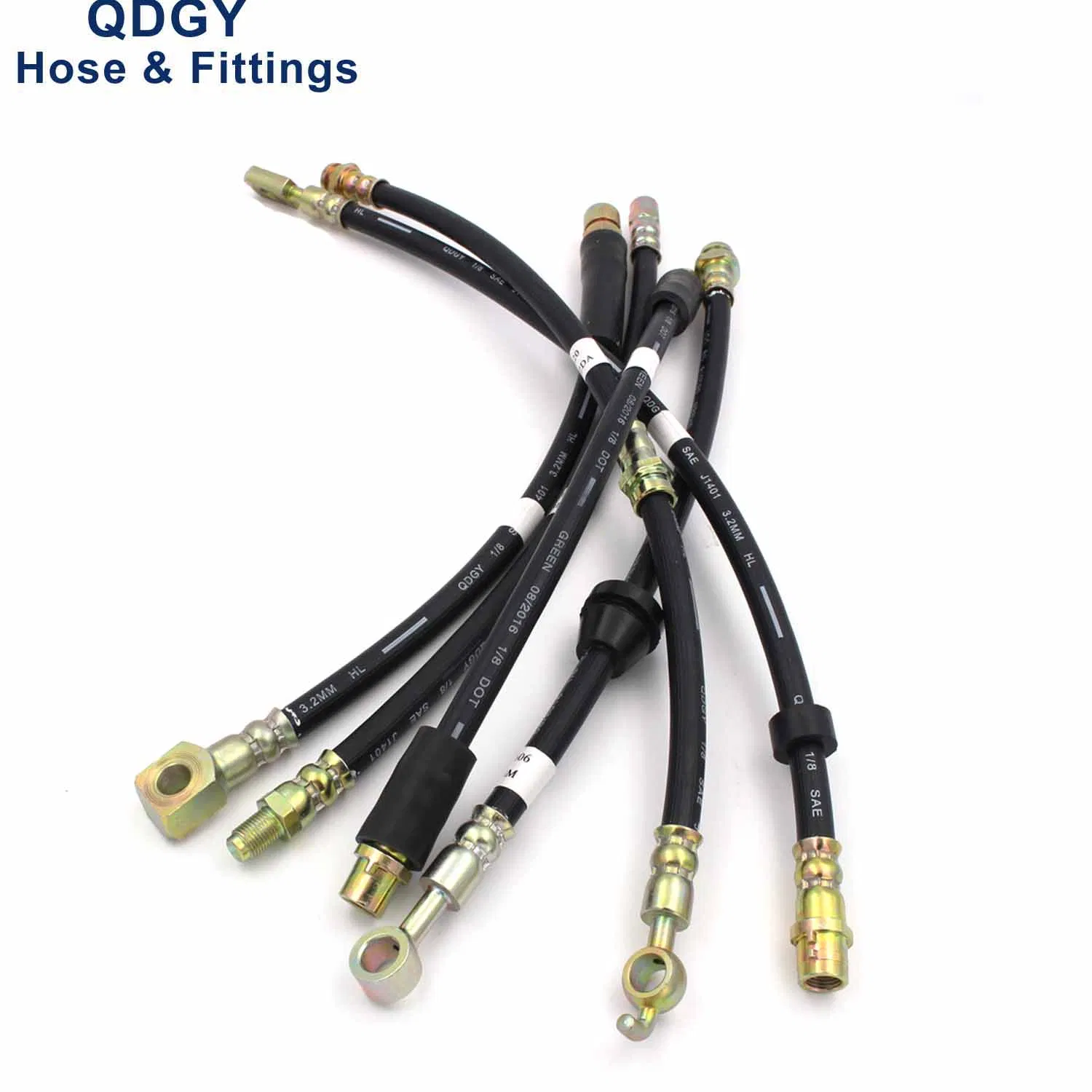

DOT Approved Brake System SAE J1401 Standard: High-pressure flexible rubber hydraulic brake hose assembly, designed for automotive fuel and oil pipe systems. These hoses can be produced according to OEM numbers, samples, or drawings to ensure precise fitment for vehicle braking systems.
| Reference OEM Numbers | |||
|---|---|---|---|
| 893611707 | 171611701L | 29603-87301 | 8D0 611 707B |
| 34321159890 | 52007587 | 4E0 611 775F | 1H0 611 775 |
| 1J0 611 701 | 90049-22047 | 443 611 775 A | 34321159881 |
| Inner Diameter | Outer Diameter | Outer Layer | Reinforcement | Inner Layer |
|---|---|---|---|---|
| 1/8" (3.2mm) | 0.413" (10.5mm) | EPDM | PVA/PET Double Braid | EPDM |
| 3/16" (4.8mm) | 0.492" (12.5mm) | EPDM | PVA/PET Double Braid | EPDM |
| Test Items | Standard | Test Result |
|---|---|---|
| Expansion (1000psi) | 0.33cc/ft max | 0.14~0.16cc/ft |
| Burst Pressure | >7000 psi | >10500 psi |
| Tensile Strength | >1446 N | 2400 N |
| Cold Bend (-45°C) | No Cracking | Passed |
| Salt Spray | No red rust (24h) | Passed |

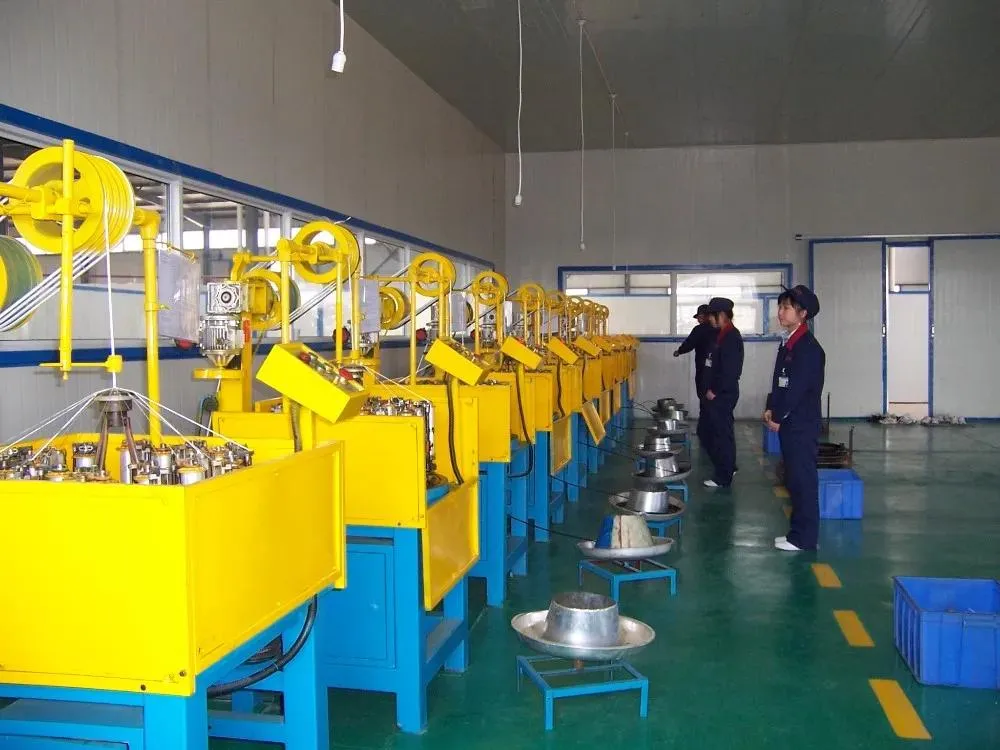

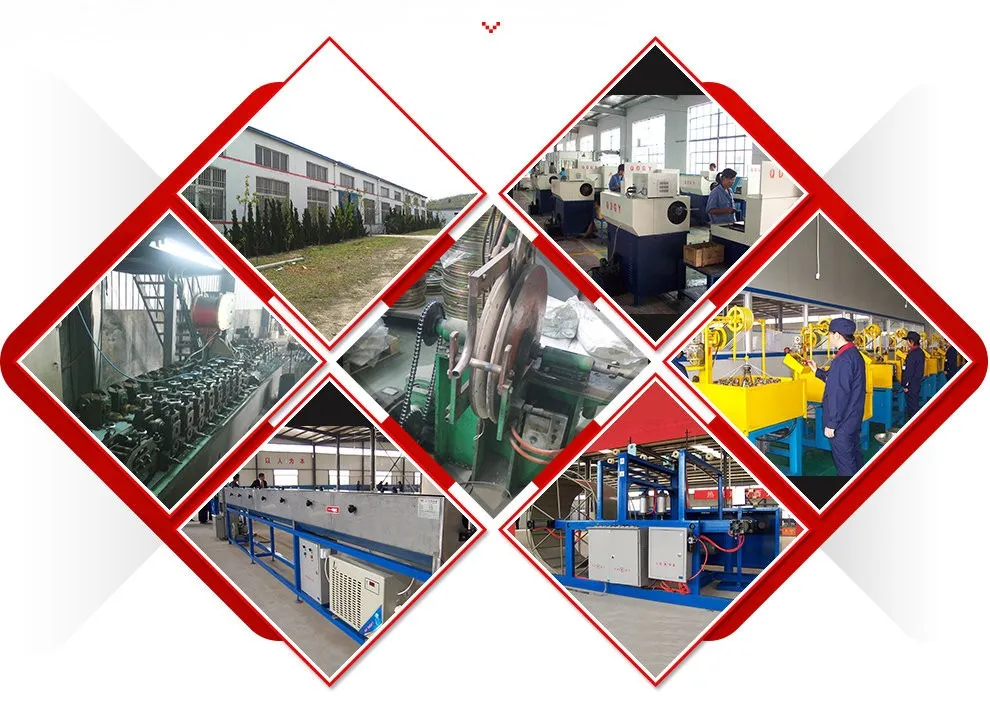

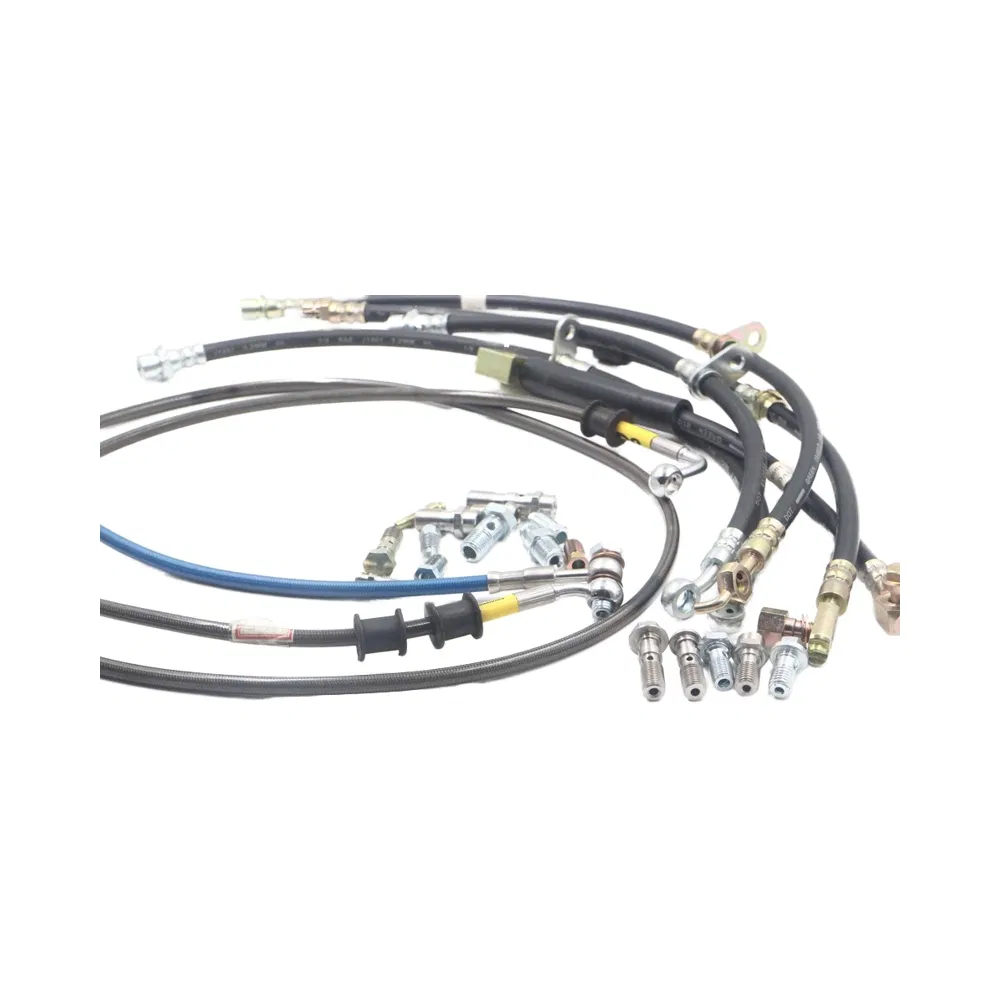

Established in 1998, the facility specializes in manufacturing SAE J1401 standard OEM brake hoses, hydraulic brake lines, and stainless steel braided PTFE hoses. With an expansive 20,000 square meter production base and over 300 dedicated staff, the manufacturer utilizes advanced production lines imported from Japan and integrates American and Italian technical skills.
The product range supports major global automotive brands including Toyota, Nissan, Honda, Mitsubishi, BMW, VW, Ford, and many others, with 90% of products exported to Europe, the USA, and Southeast Asia.
