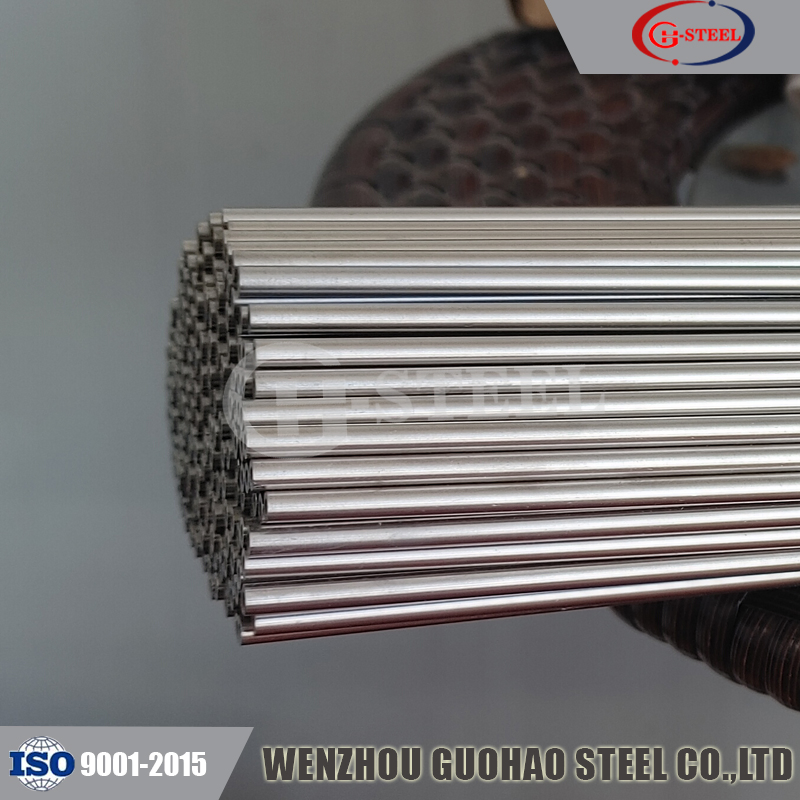

| Product Name | Stainless Steel Seamless Pipes / Tubes (Multilingual support: Pipa Stainless, Труба Нержавеющая, Tubo Inoxidable) |
| Standards & Grades (ASTM) | ASTM A213, A269, A312, A511 Grade: TP304, TP304L, TP304H, TP310S, TP316L, TP316Ti, TP317L, TP321, TP347H, 904L, 254SMO, 253MA |
| GB Standards | GB/T 14976-2025, GB/T 13296-2012, GB/T 21833-2020 Includes S30408, S30403, S31008, S31603, S32168, S32253 (Duplex), S25073 |
| EN & GOST | EN 10216-5 (1.4301, 1.4404, 1.4571 etc.) ГОСТ 9941-2022 (08х18н10т, 12х18н10т, 10х17н13м2т) |
| Duplex Stainless | ASTM A789/A790: S31803, S2205, S32750, S32760 |

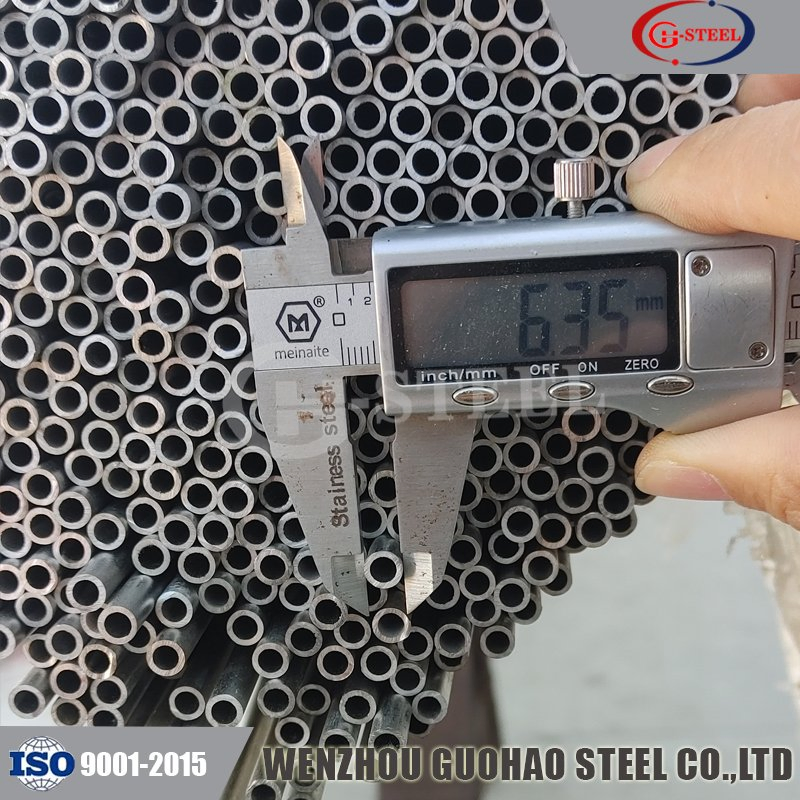

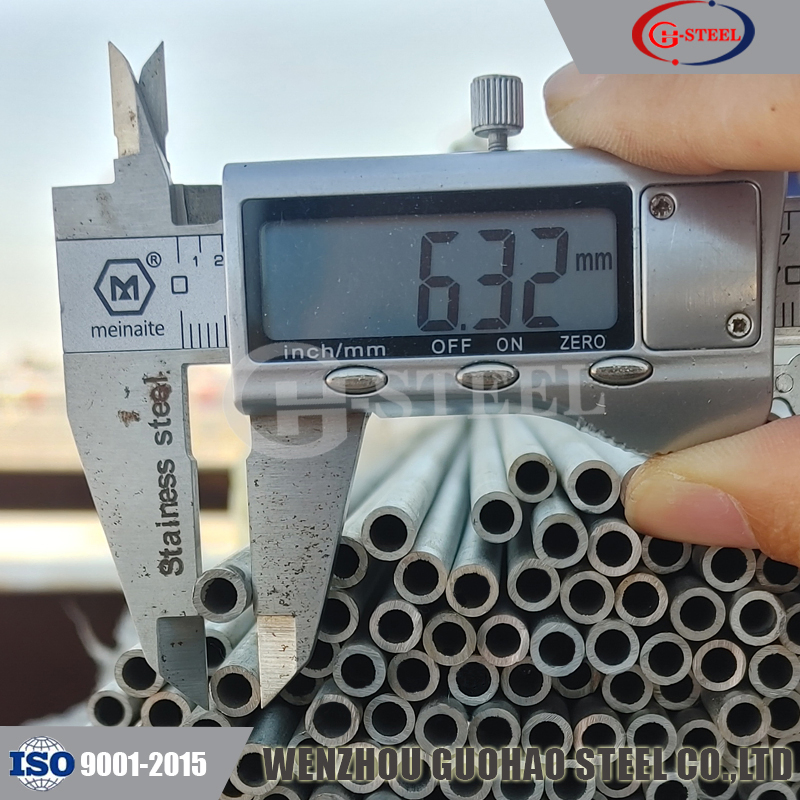

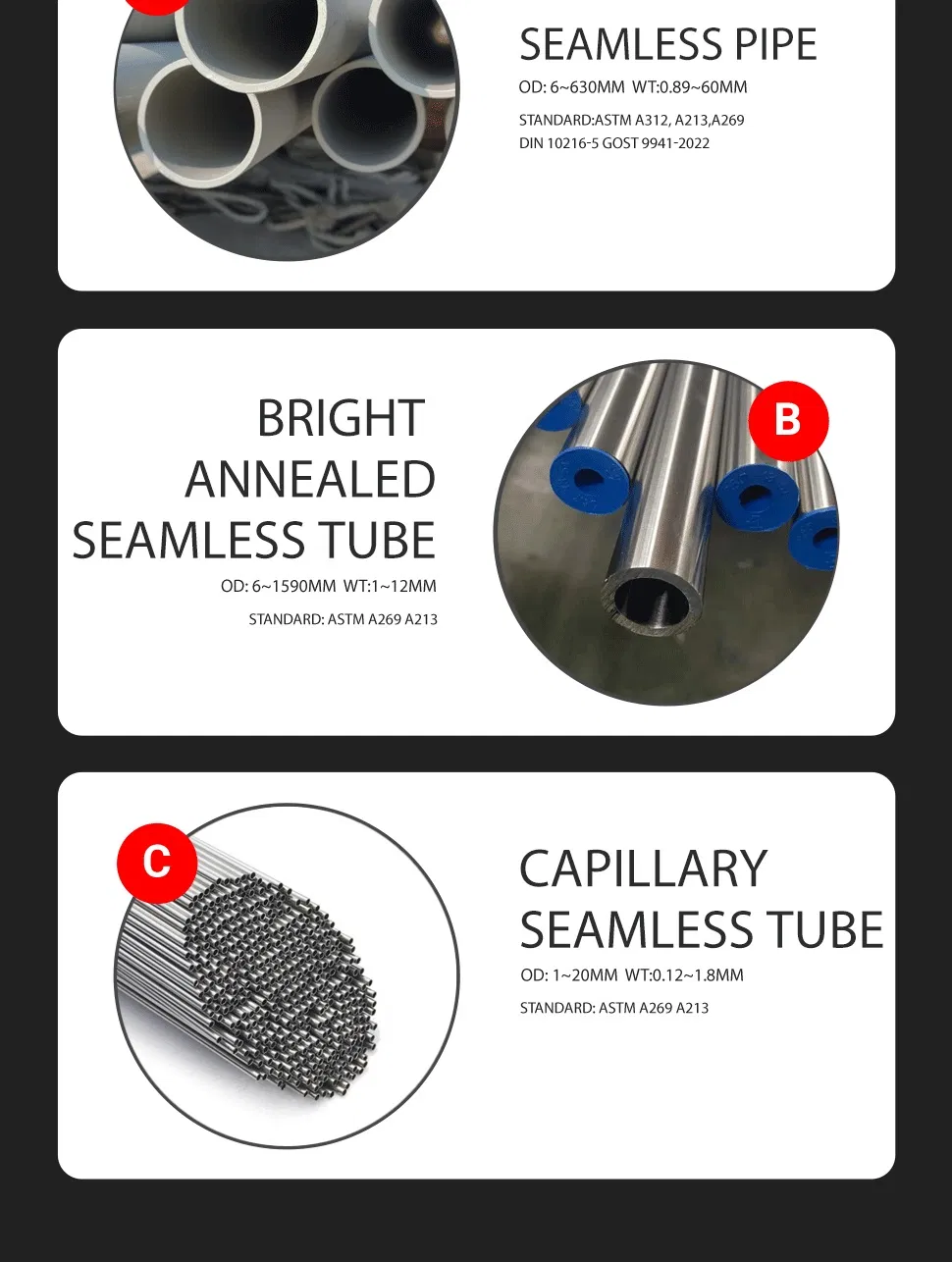

| Size Range | OD: 6mm-630mm (1/8" - 24") WT: 0.89mm-80mm (SCH 10S to SCH XXS) Length: 5-7m Random or Fixed 6m/12m |
| Surface Options | Annealing & Pickling, Polishing, Bright Annealing, Sand Blasting, Shot Peening |

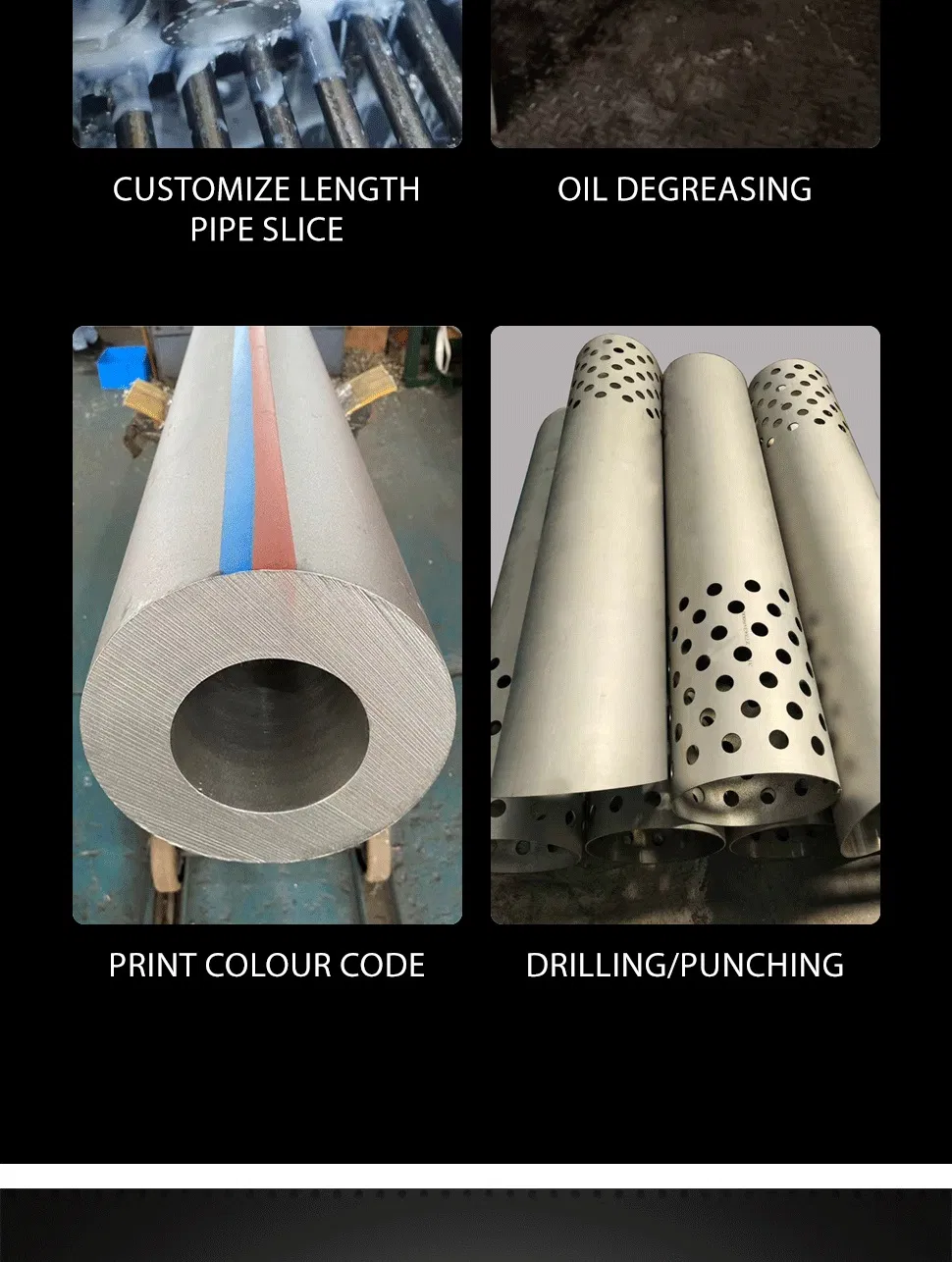

| Value Added Services | Custom Cutting, Bending, Polishing (180#-600#), Drilling/Punching, Oil Degreasing, Colour Coding |
■Markings: Standard markings include NPS or OD, schedule number, wall thickness, heat number, and test status (SML, WLD, or HCW).
■Flattening Test: Conducted on 5% of the lot (minimum 2 lengths) for continuous furnace treated materials.
■Mandatory Testing: Each pipe is subjected to either Nondestructive Electric Test or Hydraulic Test.
■Reference Standards: Compliance with ASTM A262, A370, A999/A999M, A1016, and grain size methods E112.
