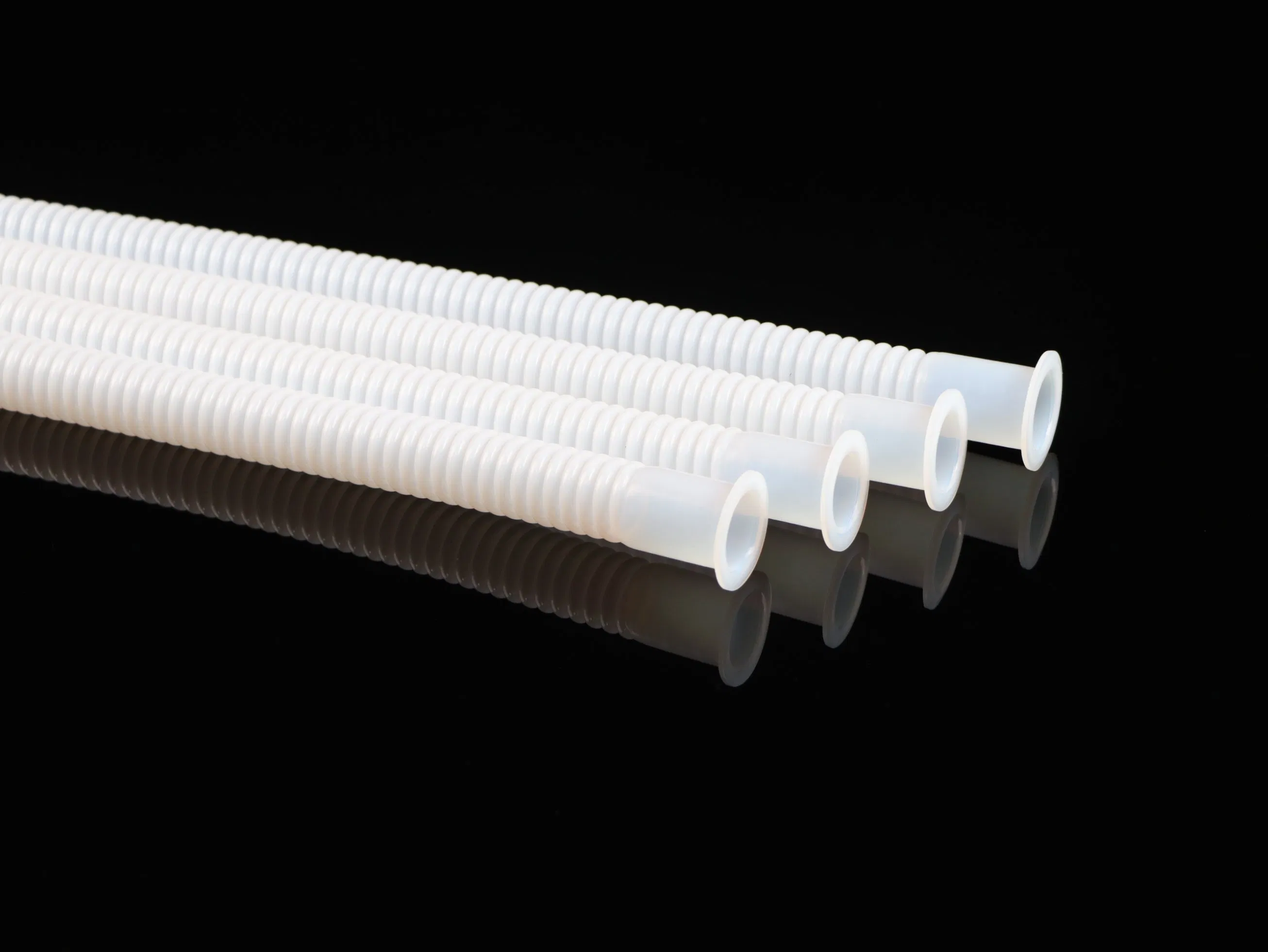

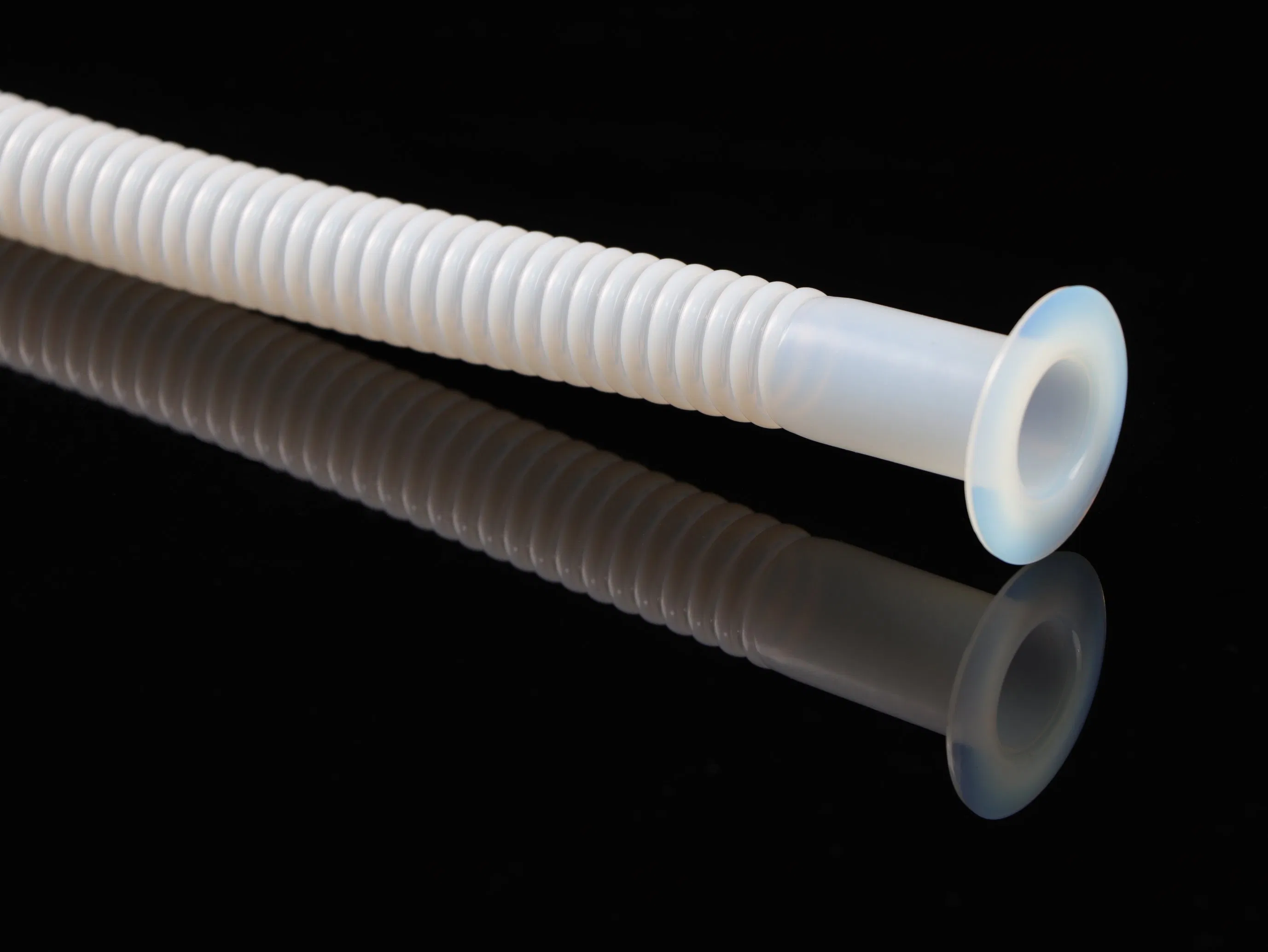

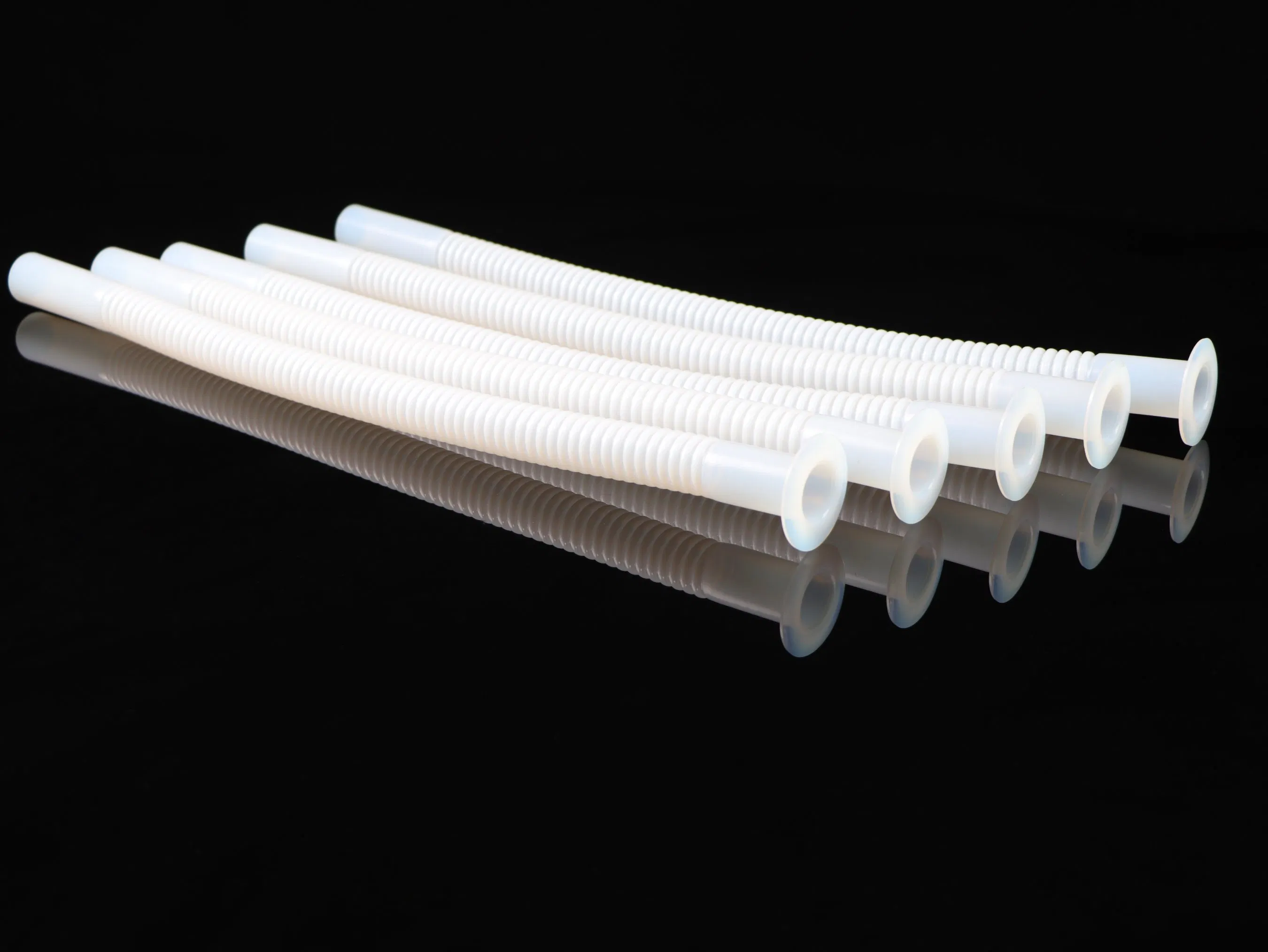

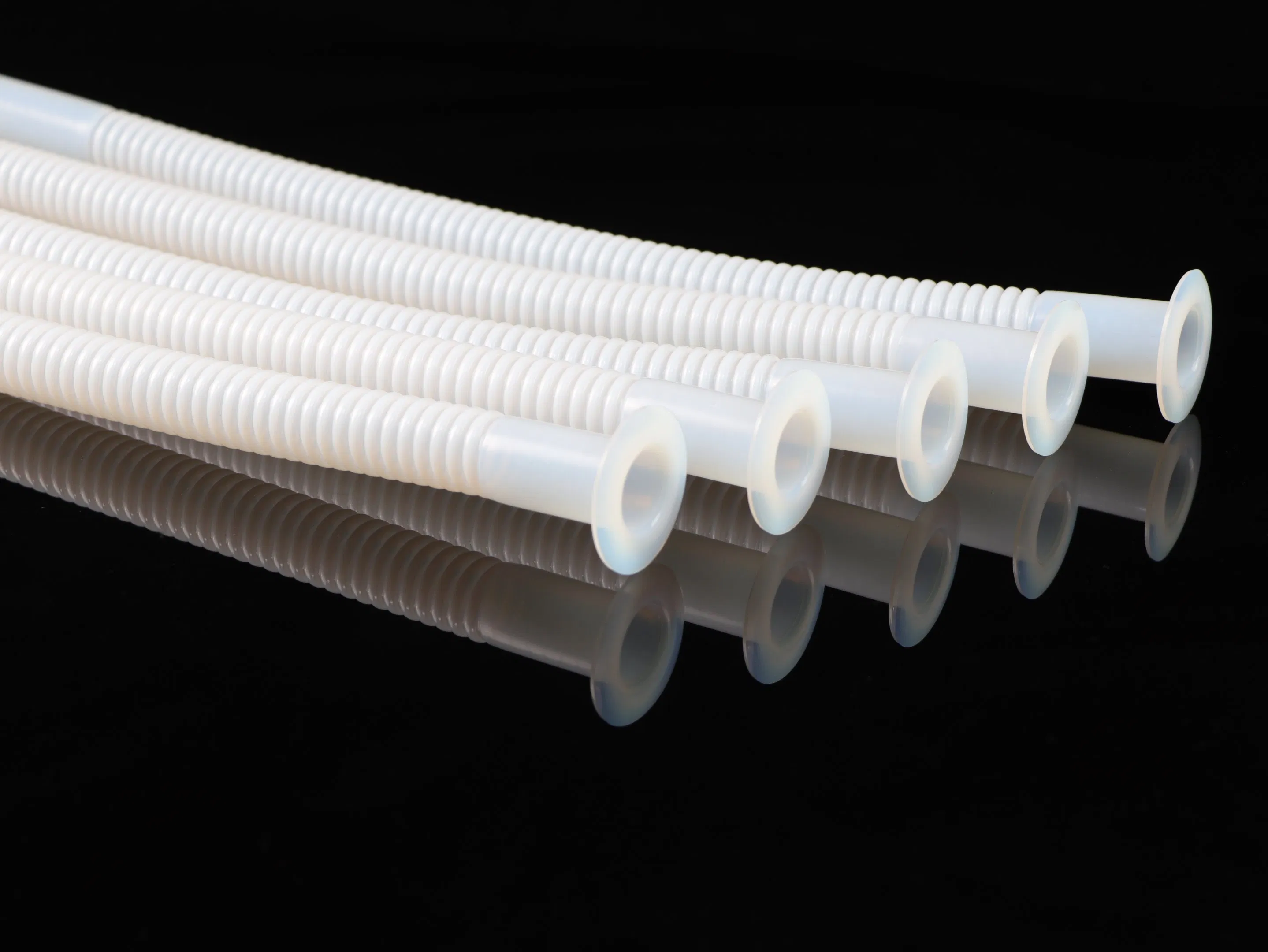

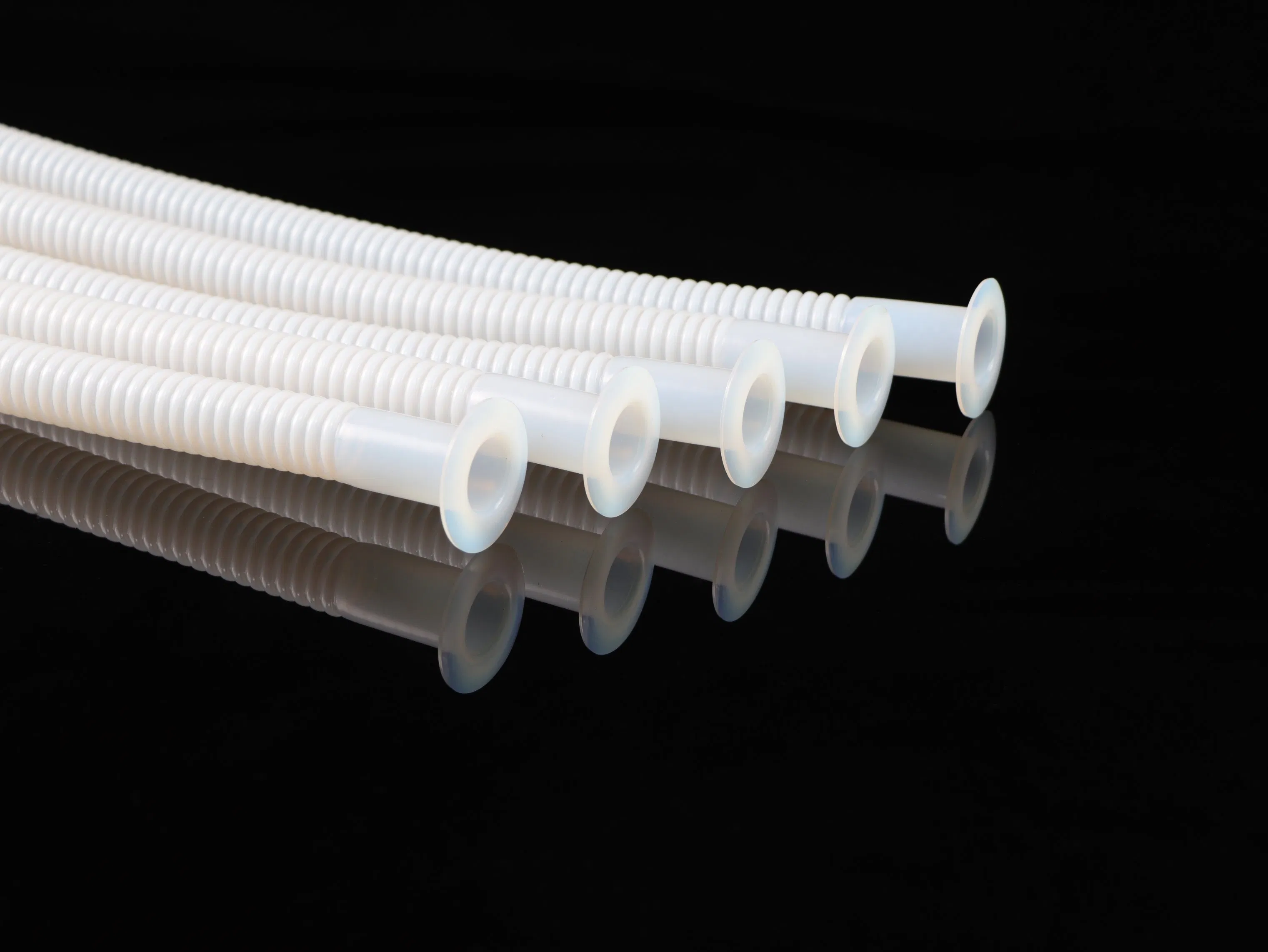

Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
1 / 5
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube
Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube

Versatile PTFE Tubing for Automotive Fluid Transfer Applications Chinese Corrugated Heating Hose Tube

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
DSC02-W-1000
Material
PTFE
Kind
Thermoplastics Pipes
Water Absorption
＜0.01%
Tensile Strength
20-45
Advantages
Insulation, Anti-Corrosion
Working Temperature
-65℃-260℃
Reinforcement
304 & 316 Wire Braided, Aramid Fiber
🚀 Product Description

Versatile PTFE Tubing for Automotive Fluid Transfer Applications

  • Low chemical activity, resistance to all kinds of chemicals
  • Strong weather and corrosion resistance, anti-aging properties
  • Low surface friction coefficient with strong viscous resistance
  • Excellent electrical insulation properties
  • Extreme temperature range: Heat resistance (+260ºC) to Cold resistance (-65ºC)
  • High pressure and low pressure resistance capabilities
No. Specification Inner Diameter Outer Diameter (braided) Min Bend Radius Working Pressure Unit Weight
DN(mm) NB(inch) mm mm mm bar kg/m
161/46.5-6.810.419820.112
285/167.8-8.112.120750.144
3103/89.1-9.314.222600.158
4151/213.1-13.318.828480.223
5185/816.0-16.321.932380.345
6203/419.3-19.82640300.456
725125.0-25.430.456280.511
* Meets SAE 100R14 standards.
* Customer-specific product configurations are available upon discussion.
📸 Detailed Photos

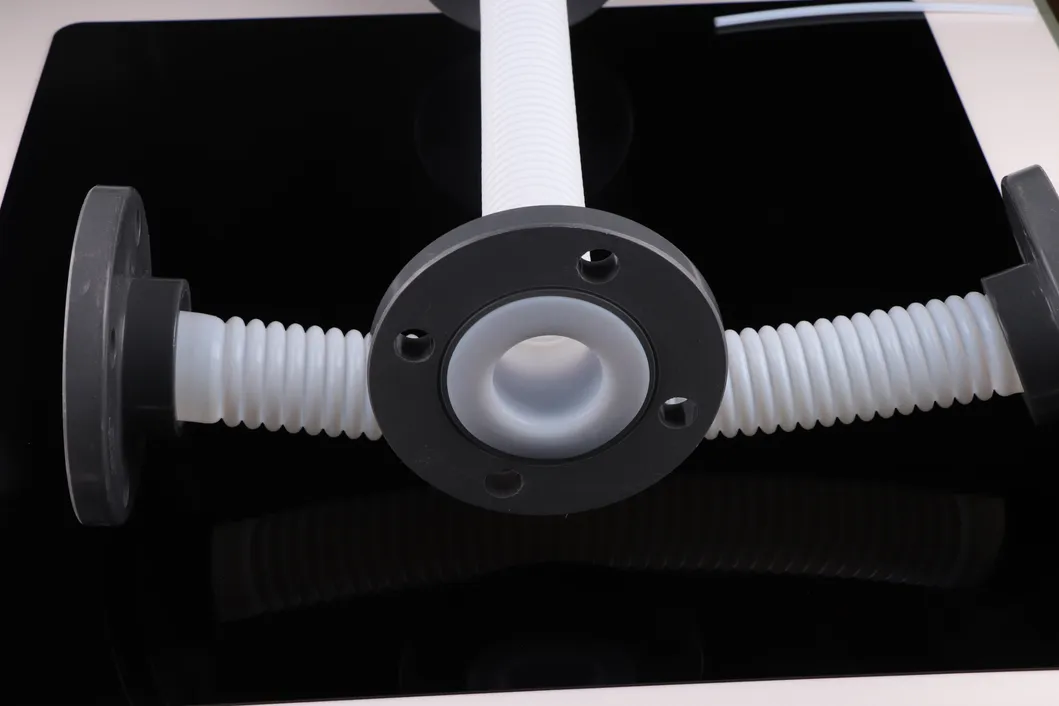

PTFE Tubing Detailed View

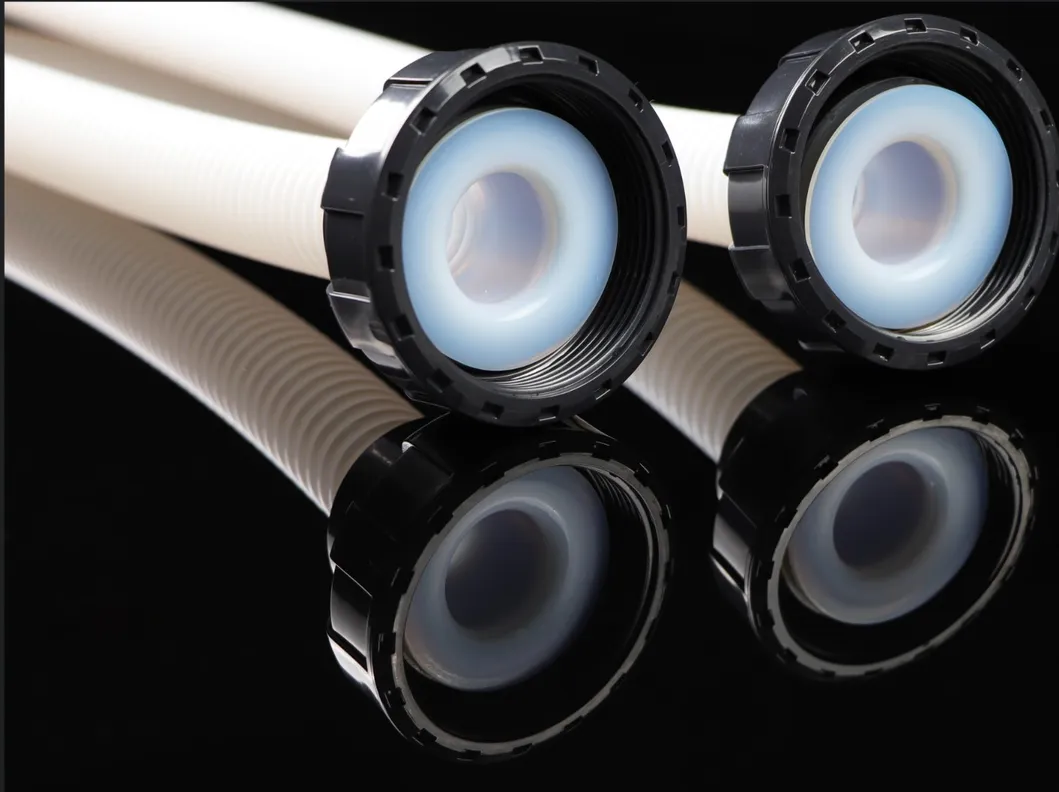

PTFE Tubing Close up

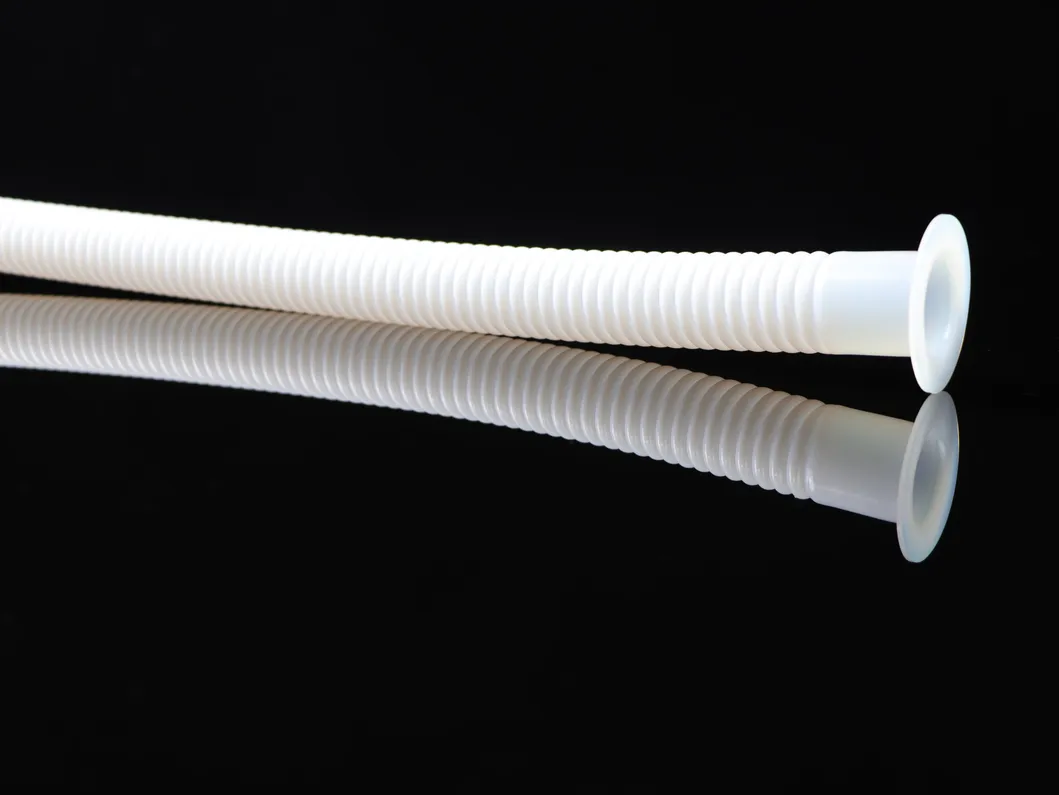

PTFE Tubing Structure

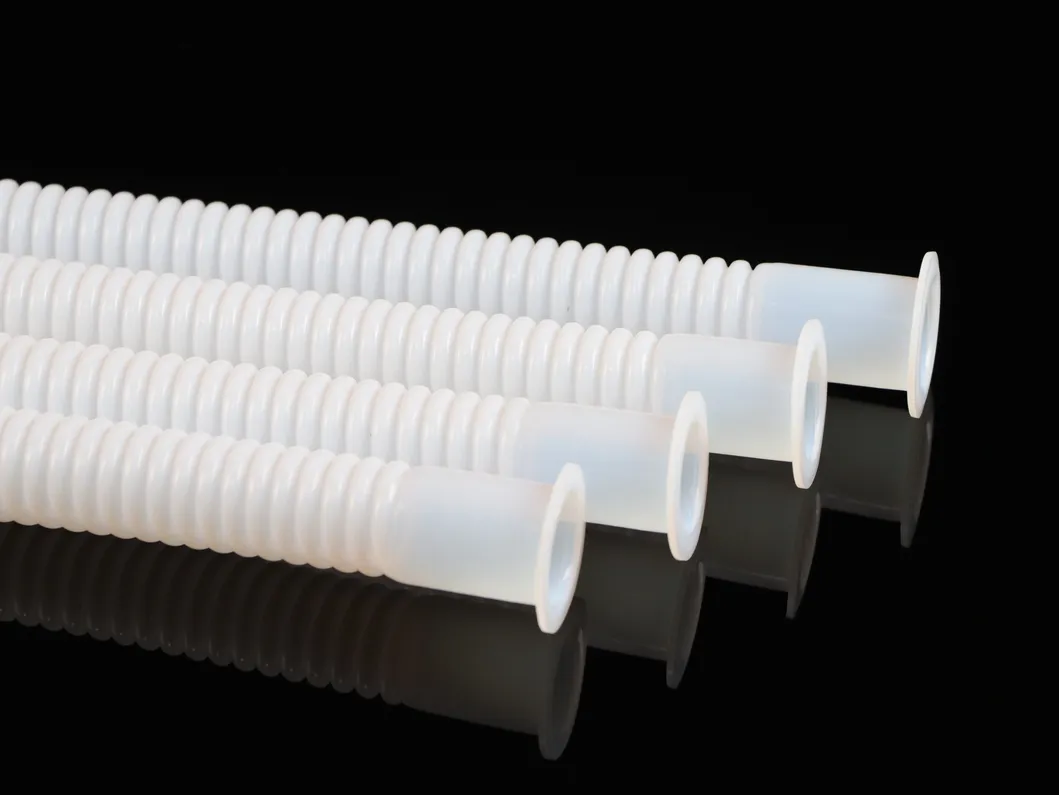

PTFE Tubing Application

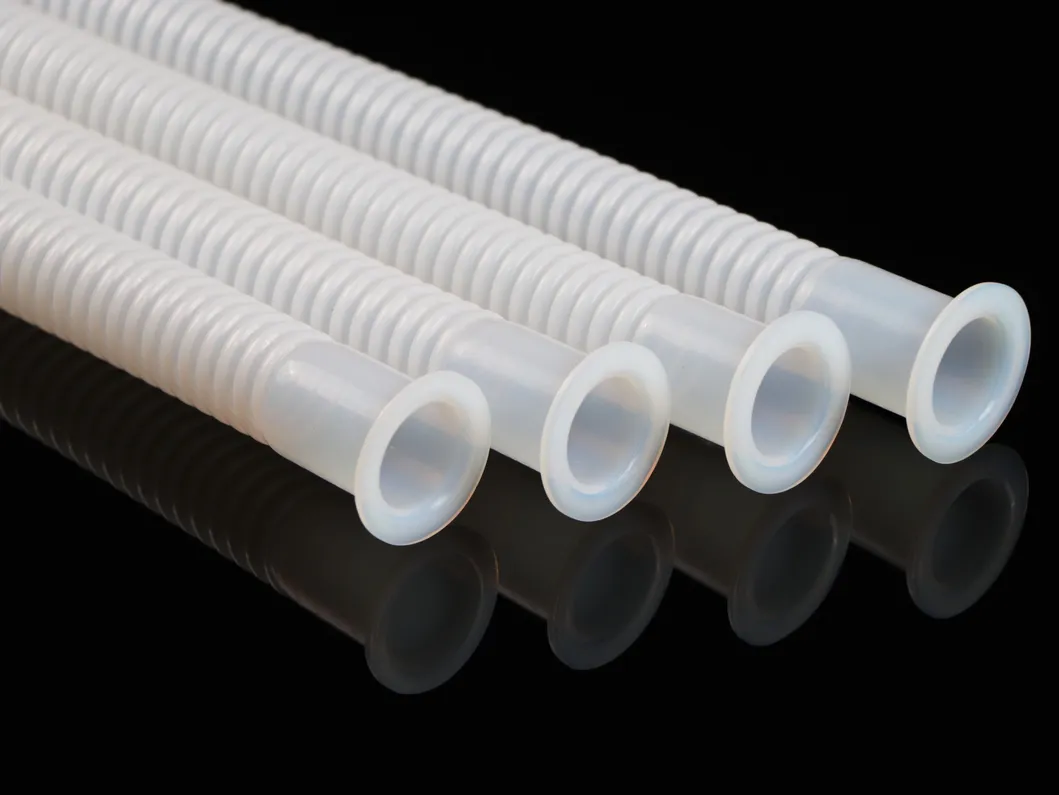

PTFE Tubing Flexibility
📦 Packaging & Shipping
Package Size
80.00cm * 20.00cm * 8.00cm
Gross Weight
0.500kg
Shipping Packaging
🛡️ Certifications & Our Advantages
Product Certifications
Technical Advantages
❓ Frequently Asked Questions
What are your primary product lines?
We specialize in PTFE tubes, hydraulic hoses, PTFE braided hoses, and both smooth bore and corrugated PTFE tubing, along with various compatible fittings.
What size specifications do you offer for PTFE tubes?
Our standard range includes capillary tubes (ID 0.3mm-6mm), inner tubes (ID 2mm-100mm), and braided hoses from 1/8" to 2". Custom sizes are available upon request.
What materials are used for the reinforcement layers?
The outer layers can be constructed from Stainless Steel 304 or 316 wire braid, Nylon or cotton coating, Silicone jackets, or PVC/PU covers.
Do your products comply with international standards?
Yes, our PTFE tubing meets SAE 100R14 standards and our manufacturing processes are ISO9001 certified to ensure consistent quality.
Can you provide samples for independent testing?
Yes, we can provide product samples for your specific testing requirements and welcome third-party audits of our manufacturing standards.
What is the temperature range of your PTFE hoses?
Our hoses are designed to operate reliably in extreme environments ranging from -65ºC up to +260ºC (-85°F to +500°F).
