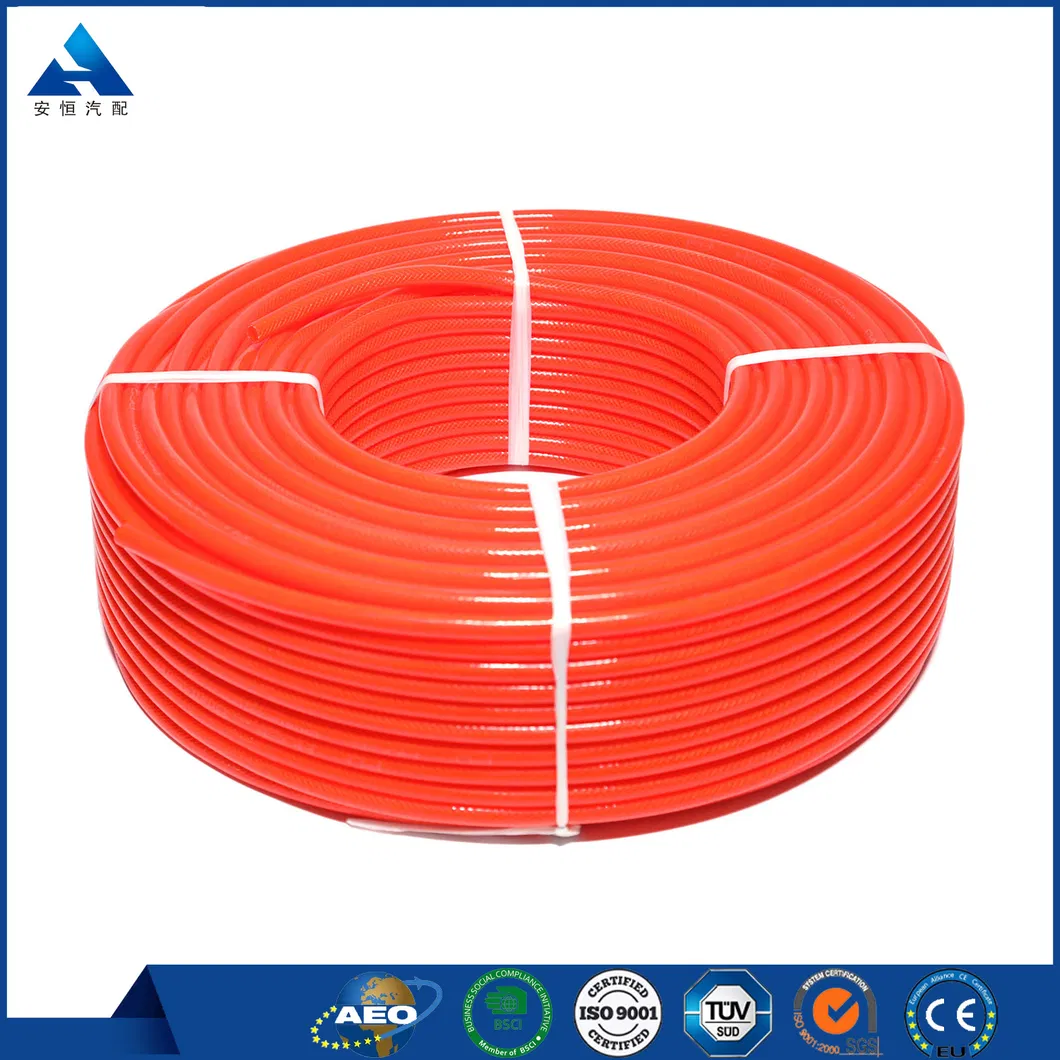

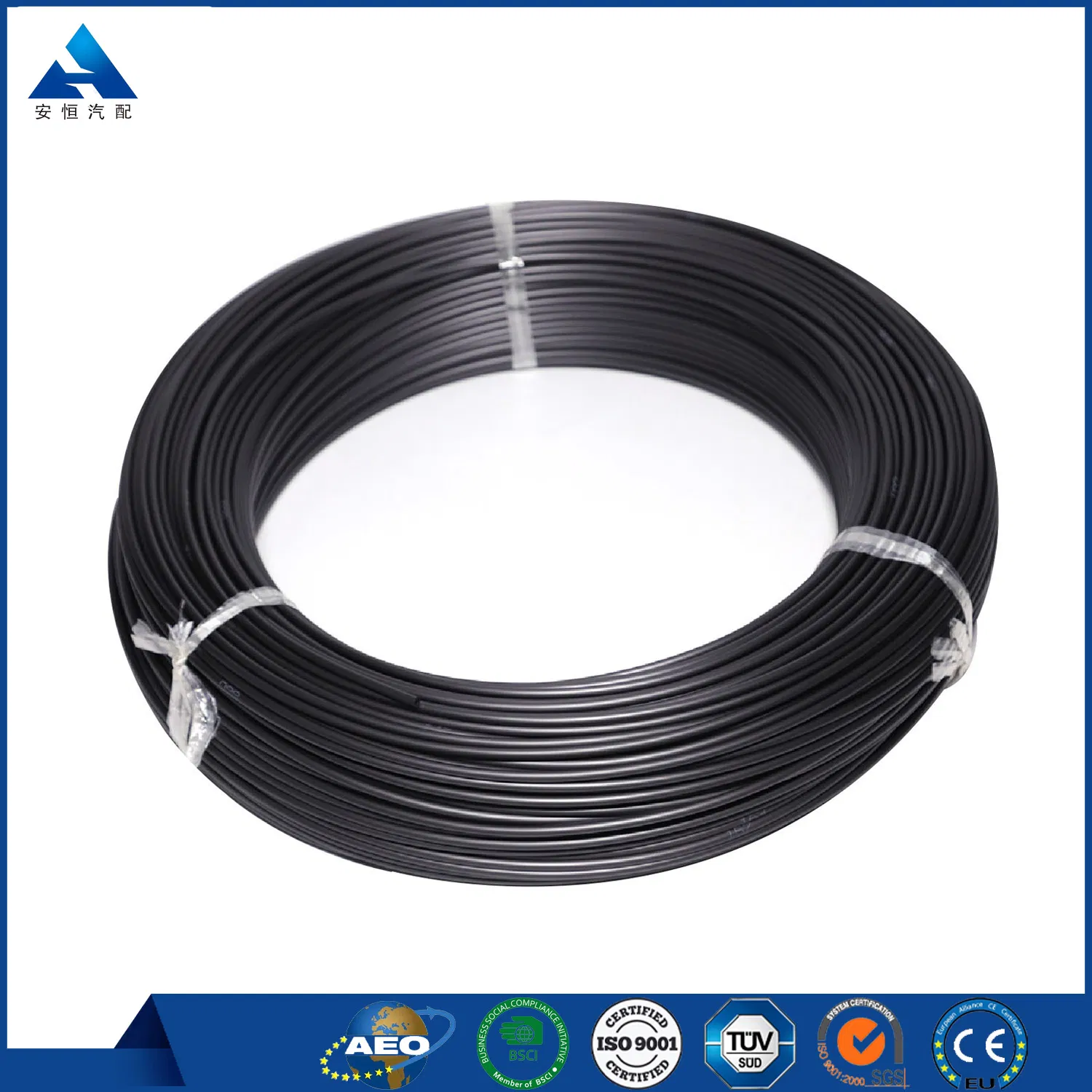

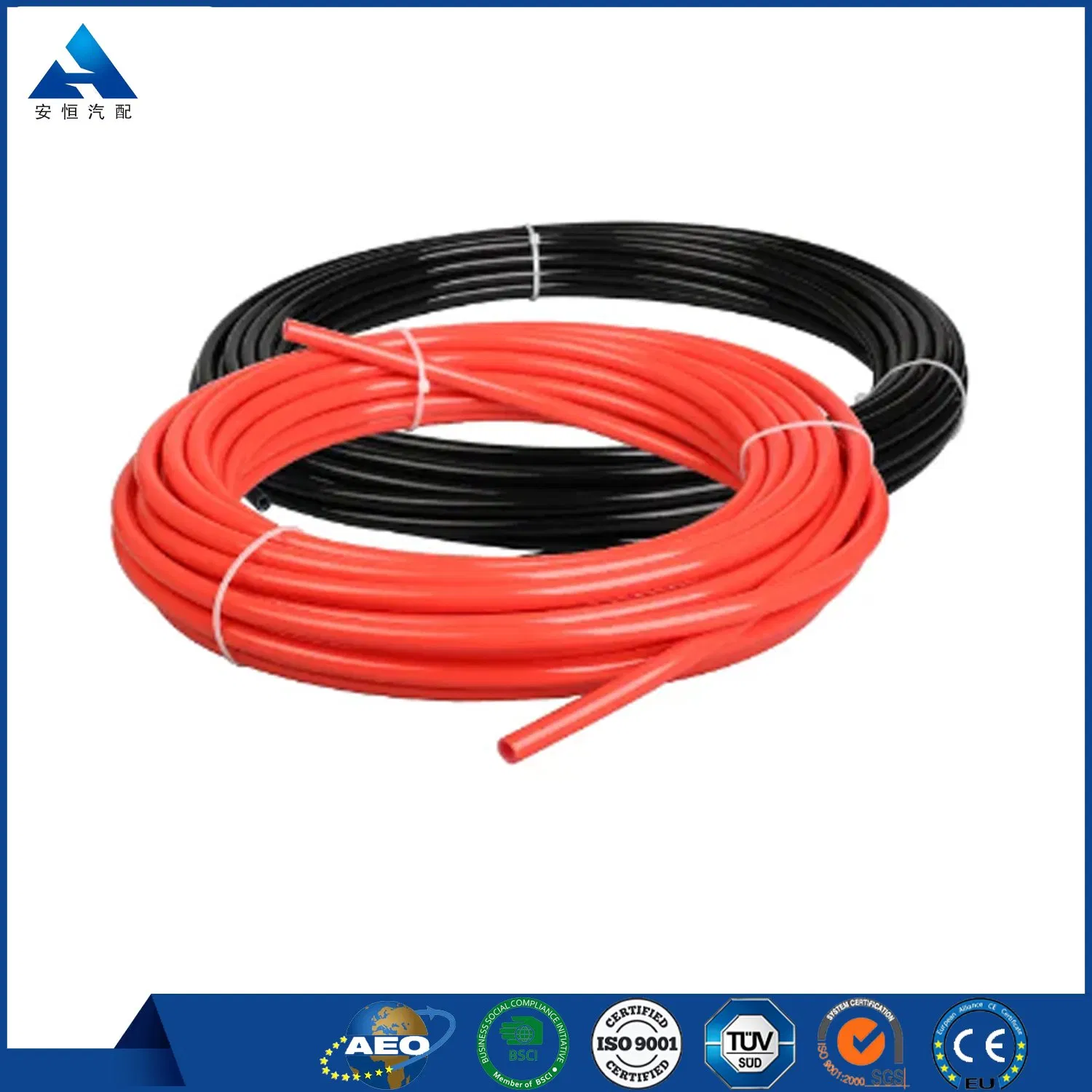

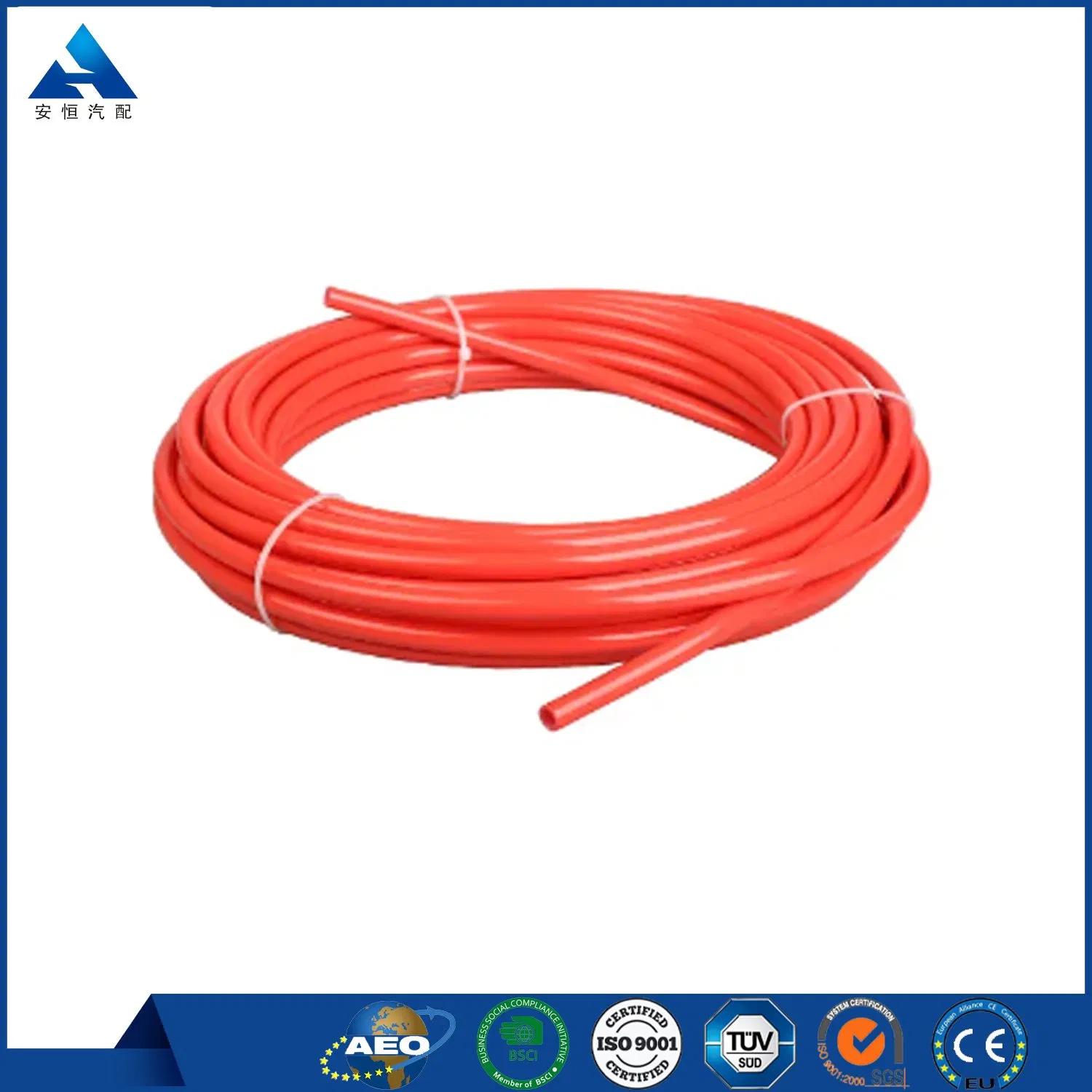

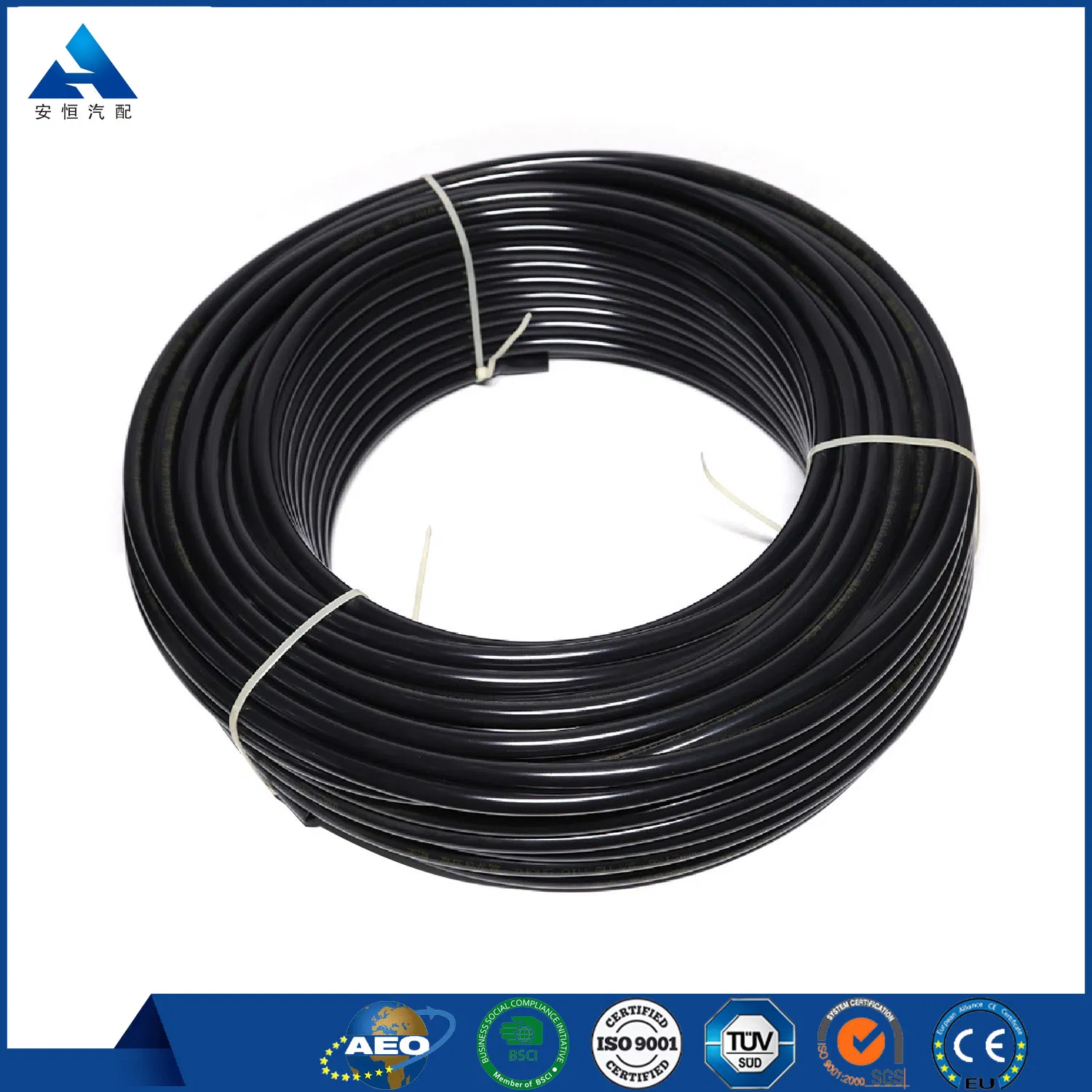

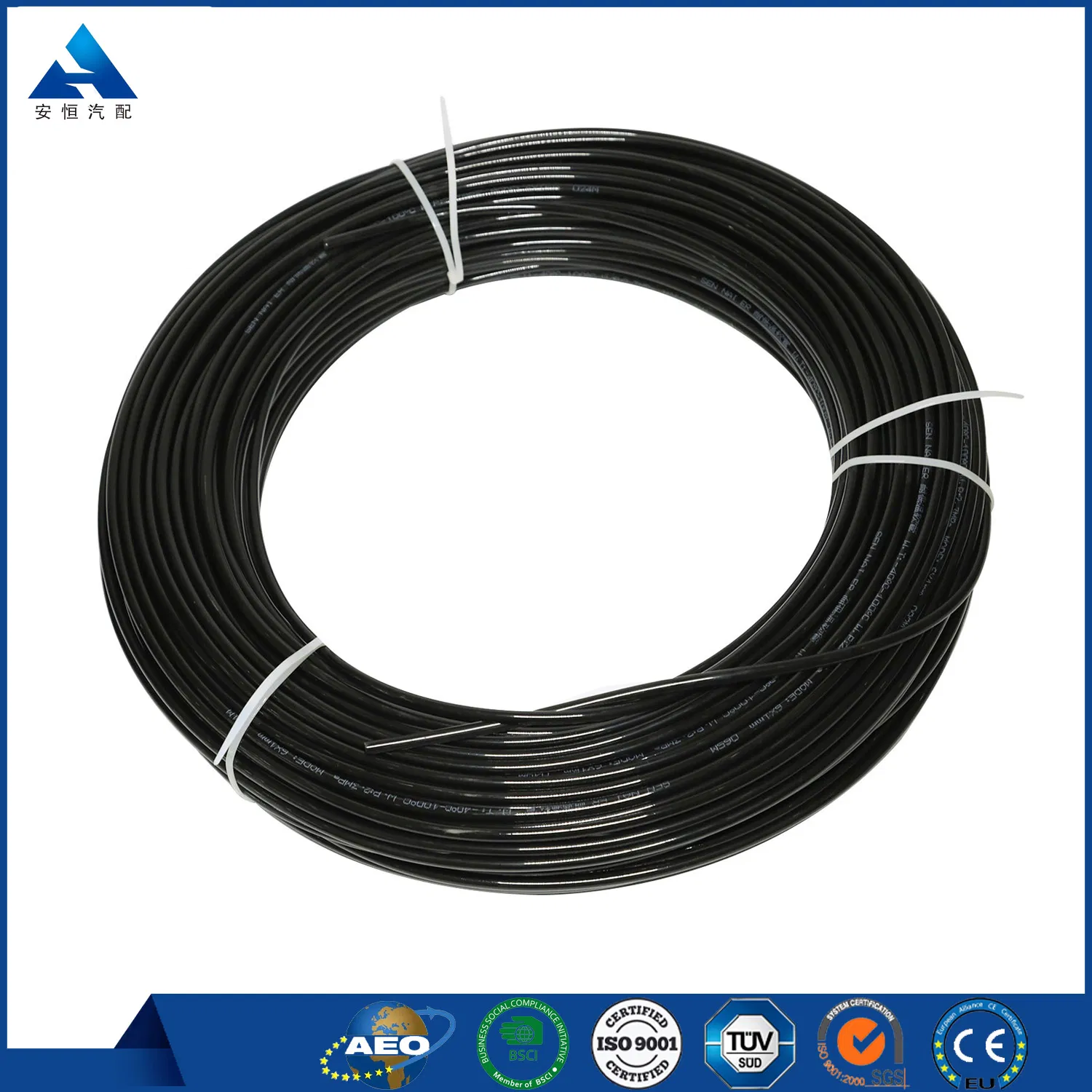

Nylon Tube offers excellent wear ability, a smooth surface, low resistance, anti-rustiness, and anti-scaling properties. It is highly flexible, easily bent into various shapes, and simple to install. With high chemical and hydrolysis resistance, stable dimensions, and minimal penetration, it provides a service life of over ten years.
Designed for high and low temperature resistance (-40°C to 120°C), it is ideal for transferring compressed air, water, oil, and chemical liquids. Applications include light trucks, car hydraulic brake systems, power steering tubes, forklifts, loading trucks, mining vehicles, heavy machinery, ships, and other hydraulic mechanical transmission and control systems, as well as high-pressure paint and liquid resin spraying and air conditioning.
| Specification | O.D (mm) | I.D (mm) | W.P (bar) | B.P (bar) | Min Bend Radius (mm) |
|---|---|---|---|---|---|
| 3x0.5 | 3 | 2 | 30 | 90 | 18 |
| 4x0.75 | 4 | 2.5 | 31 | 93 | 20 |
| 4x1 | 4 | 2 | 45 | 135 | 30 |
| 5x1 | 5 | 3 | 34 | 102 | 35 |
| 6x1 | 6 | 4 | 27 | 81 | 40 |
| 8x1 | 8 | 6 | 19 | 57 | 50 |
| 10x1 | 10 | 8 | 15 | 45 | 65 |
| 10x1.25 | 10 | 7.5 | 19 | 57 | 65 |
| 12x1.5 | 12 | 9 | 19 | 57 | 70 |
| 14x1.5 | 14 | 11 | 19 | 57 | 80 |
| 16x2 | 16 | 12 | 19 | 57 | 130 |
| 18x1.5 | 18 | 15 | 15 | 36 | 155 |
| 23x2 | 23 | 19 | 20 | 33 | 120 |
