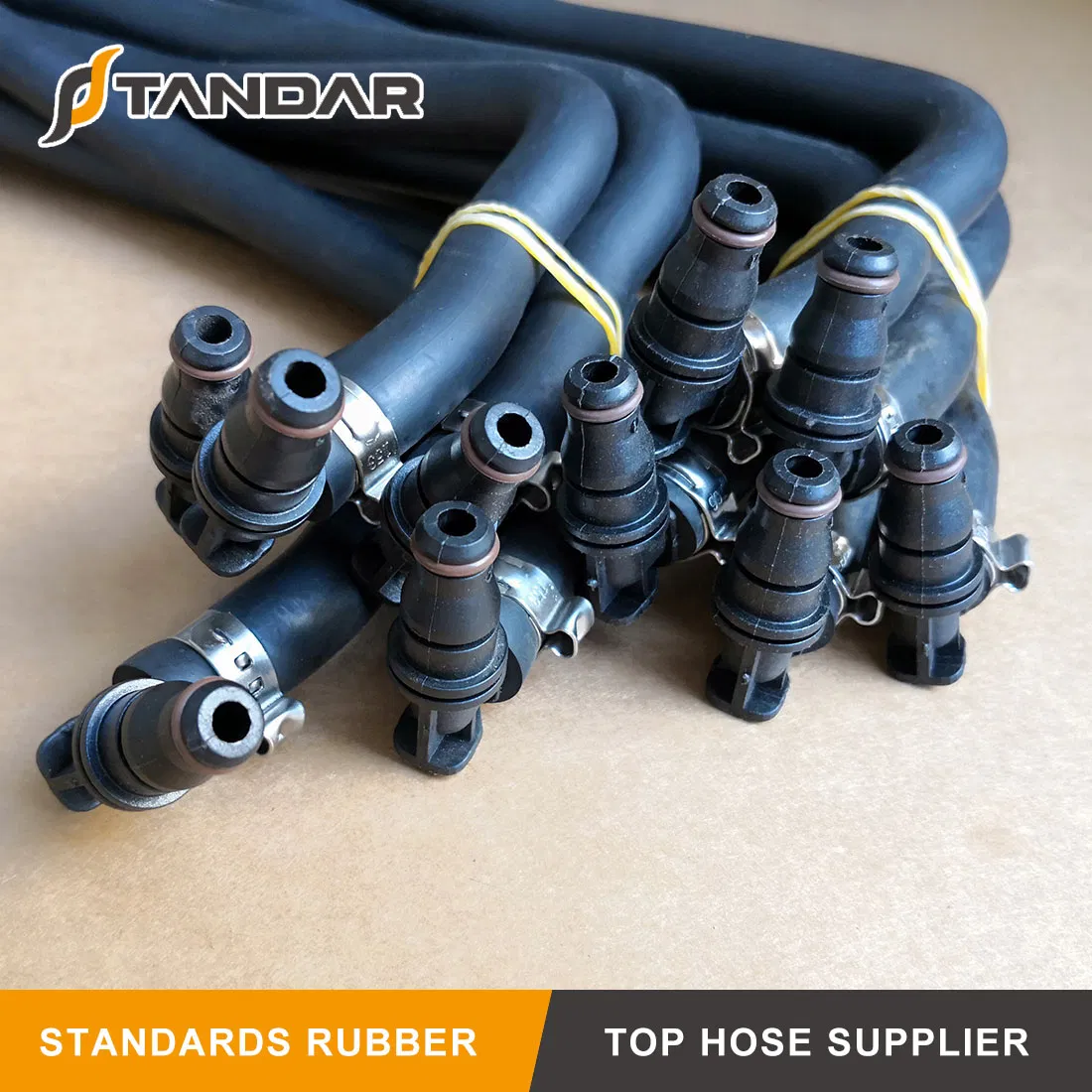

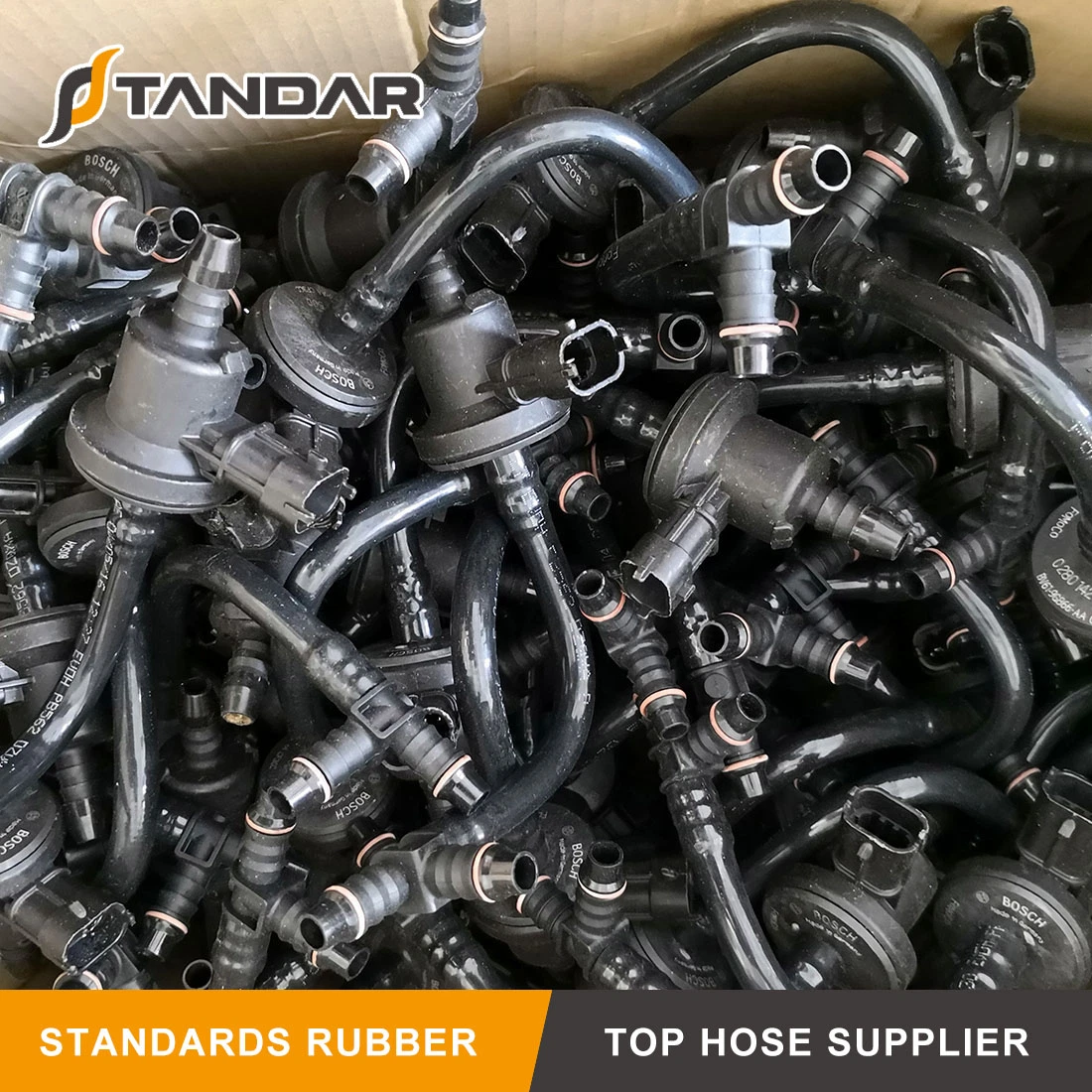

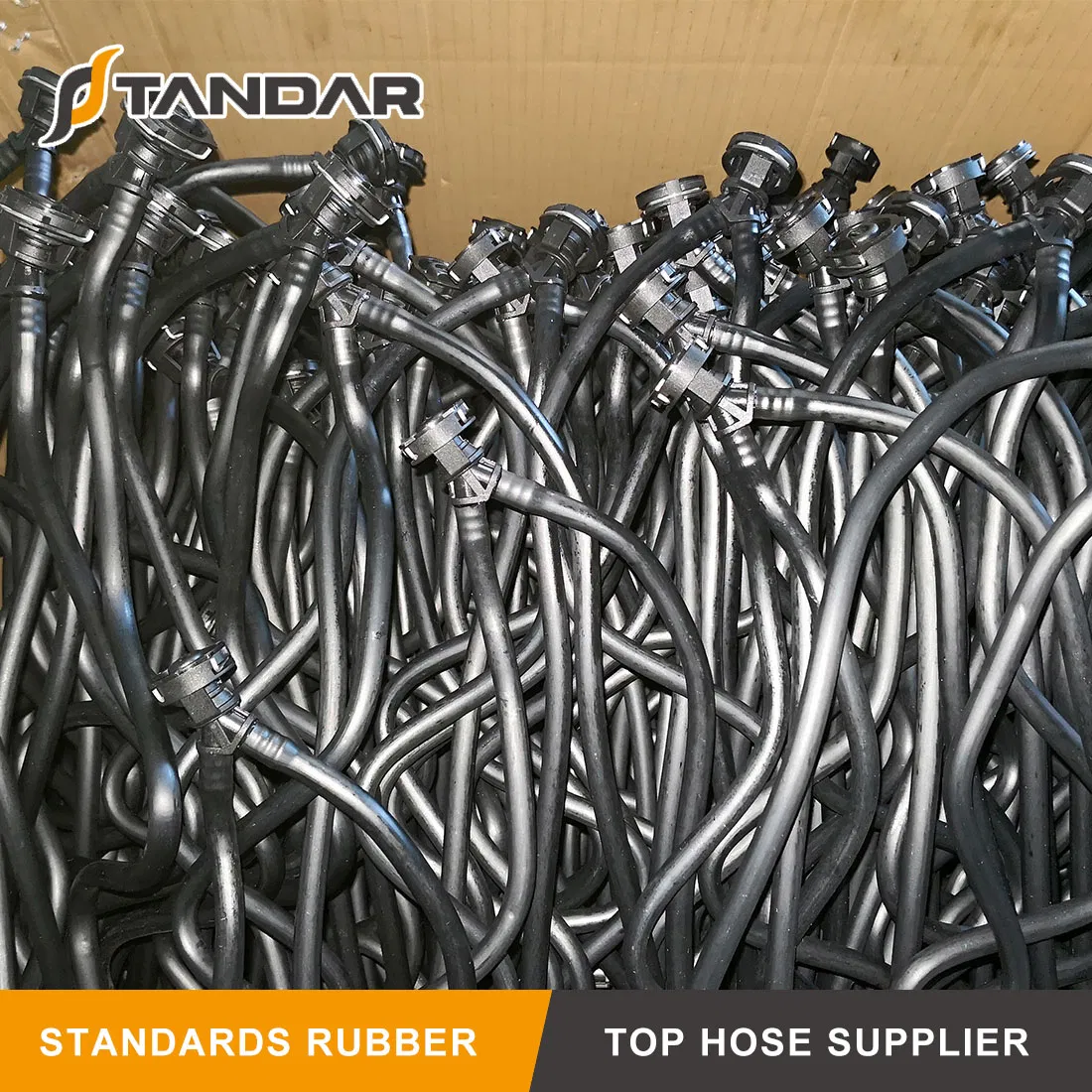

Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
1 / 5
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars
Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars

Low Pressure Nylon Automotive Water Pip Assembly for BMW Cars

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
TB-RH-PC
Connection
Female
Surface
Without Treatment
Head Type
Round
Use
Fuel Line, Water Pipe, Steam Hose etc.
Temperature
-40-115 Degrees Centigrade
Colour
Blue, Yellow, Green etc.
Specification
SAE J2044
HS Code
3917400000
Capacity
3000PCS/Day
Material Specification
Parts Material Supplier Application
Body PA12 GF30 ARKEMA / EVONIK Fuel
PA66 GF30/35 BASF / DUPONT Fuel Steam
PA6/6T GF25 BASF HT Fuel
PA9T GF30 KURARAY HT Fuel
O Ring FKM/FVMQ/HNBR/AEM HUTCHINSON / GMORS Fuel, Steam, Urea, A/C, Power Steering
Product Overview

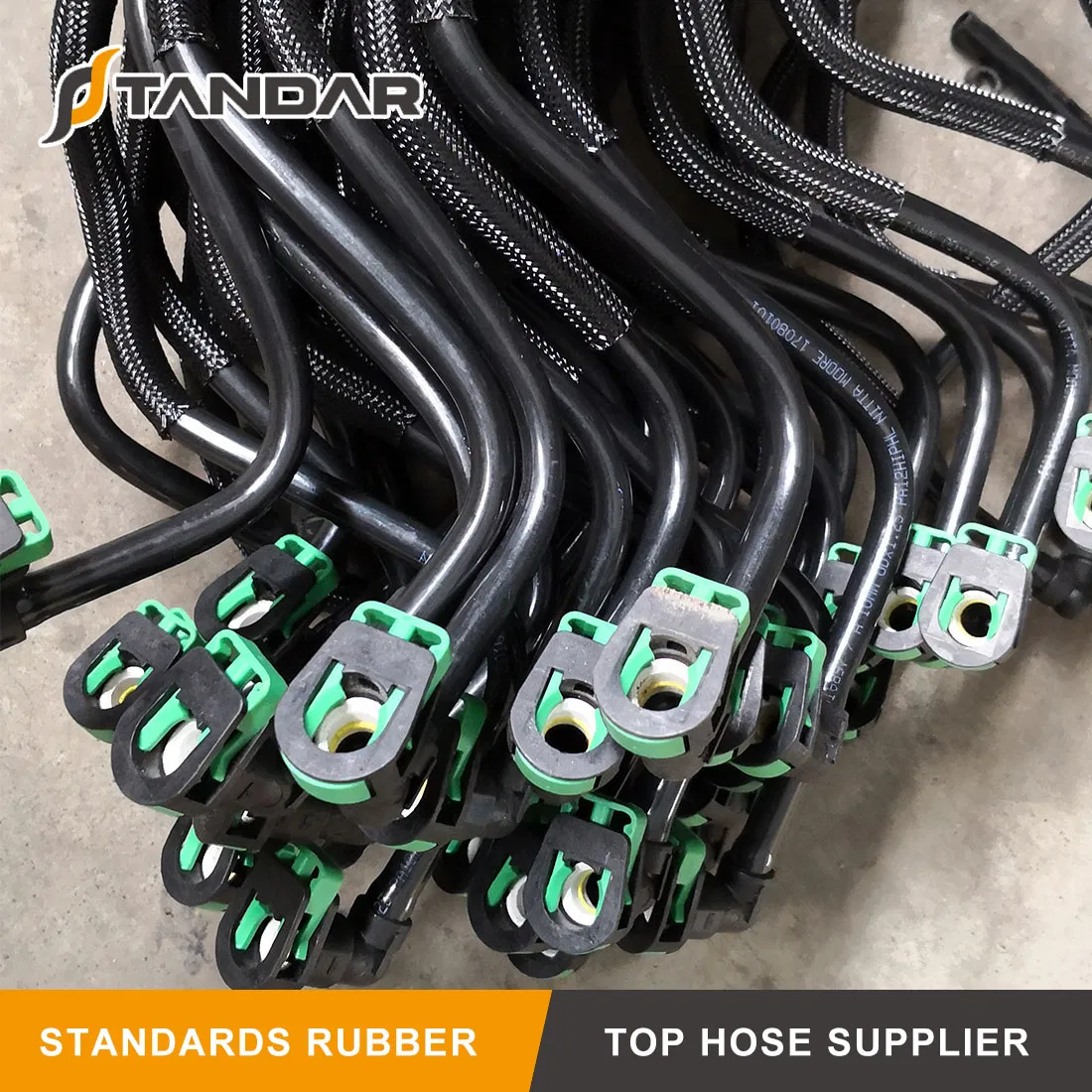

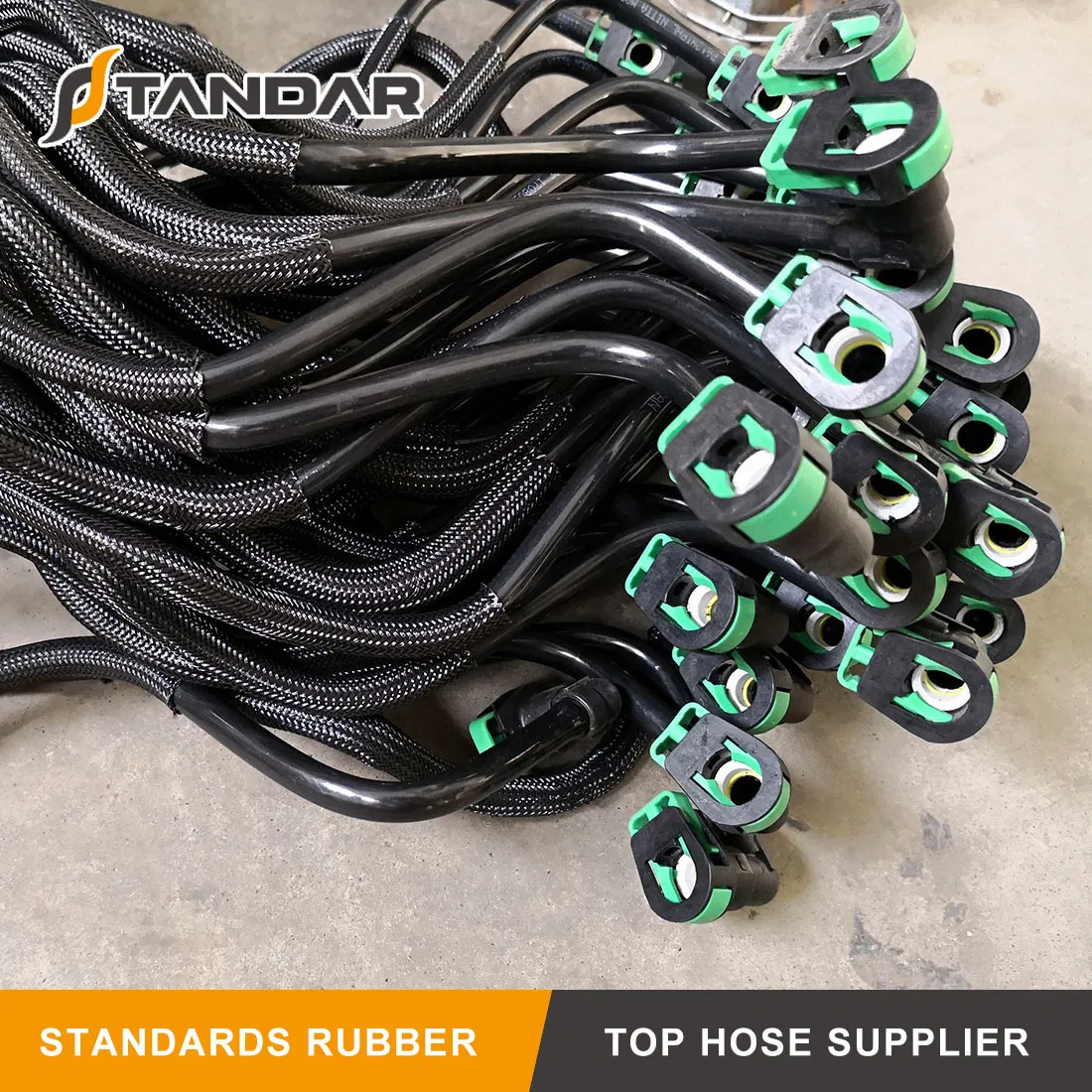

Low Pressure Nylon Automotive Water Pipe Assembly

Our quick connect fittings are made of high-quality synthetic materials suitable for most media-carrying lines, including fuel, oil vapor, water cooling, and air carrying systems. These connectors are specially designed for automotive pipe systems and strictly comply with SAE J2044-2009 standards.

The plug-in and self-locking structure allows for rapid connection and disconnection, requiring only finger-width space on both sides, enhancing design flexibility and high-density arrangement.

Working Environment
Parameter Value
Working Pressure 5 bar (72 psi)
Working Pressure in Vacuum -0.55 bar (-7.2 psi)
Working Temperature -40°C to 115°C (Short time 150°C)
Key Advantages
  • Fast assembly without tools
  • Robot assembly compatible for automation
  • Compact design for close installation conditions
  • Integrated seal for optimal tightness
Applications
  • Fuel feed / return lines
  • Tank breathing & Ventilation
  • Oil cooler lines
  • Vacuum control systems

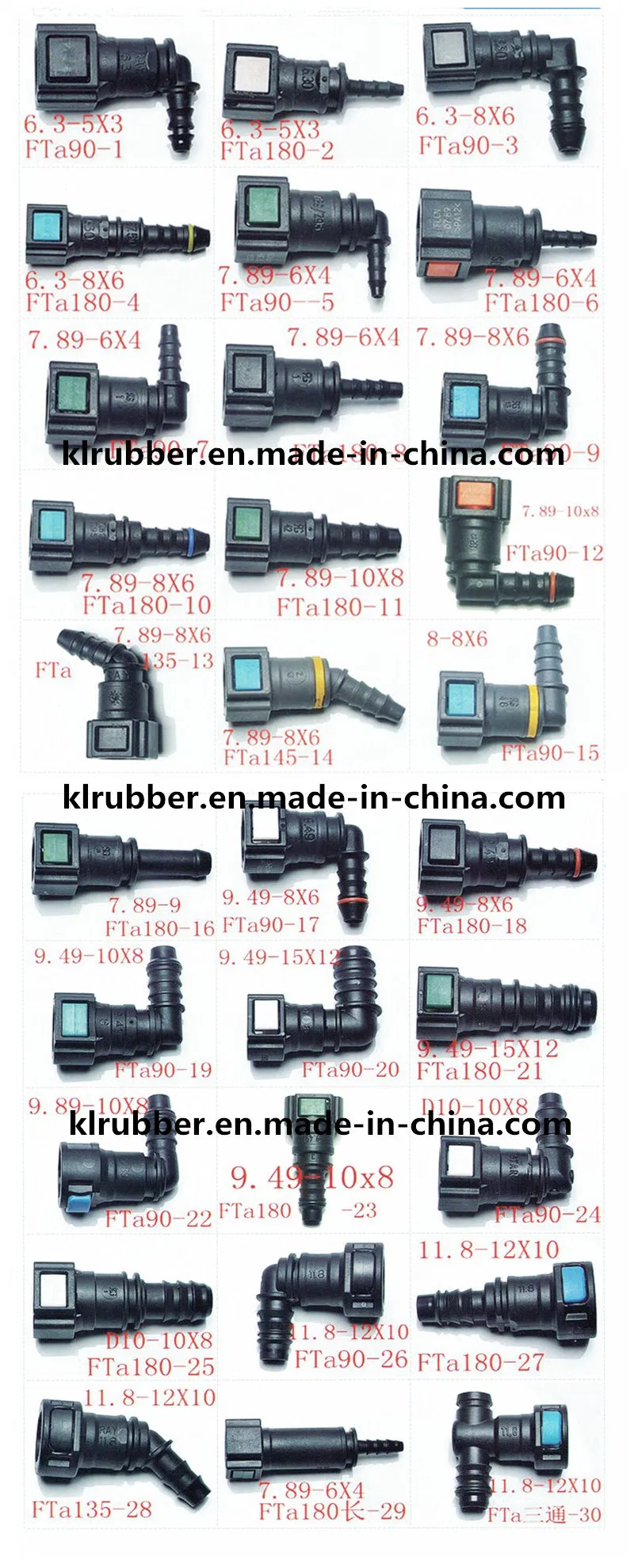

Product Catalog

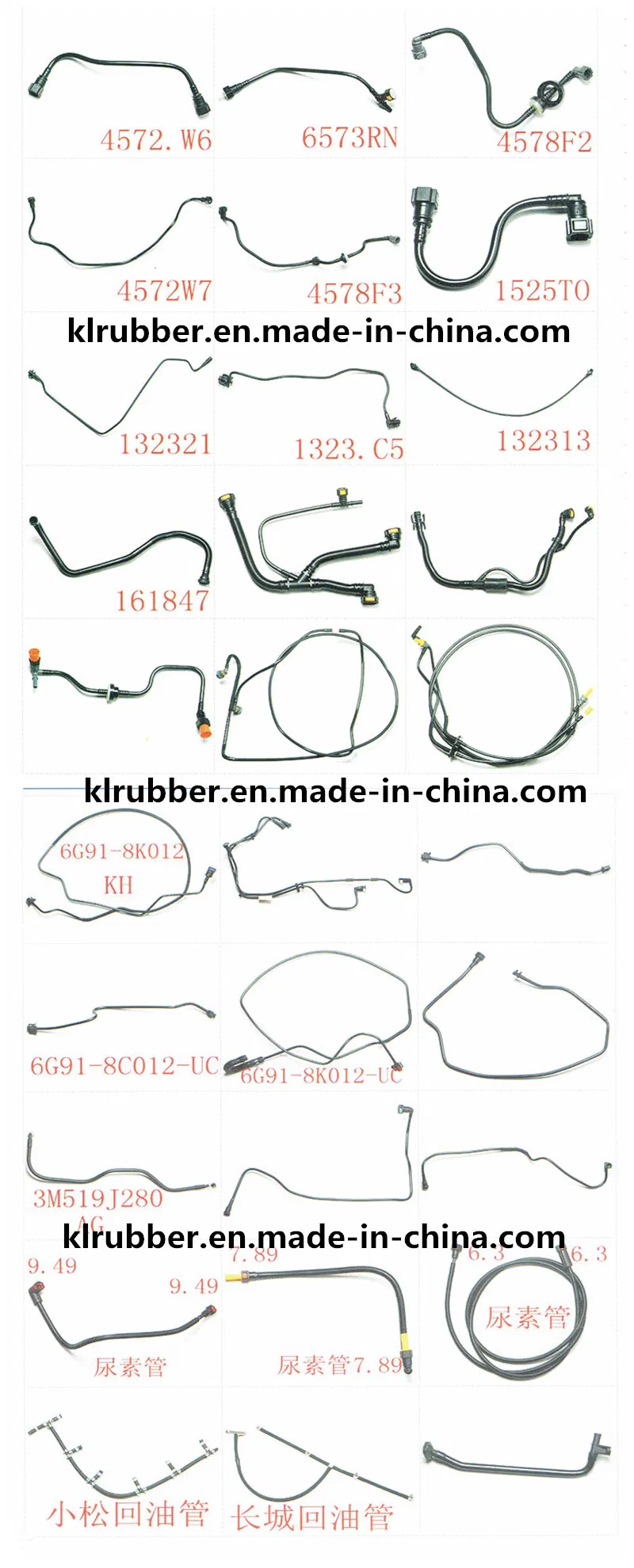

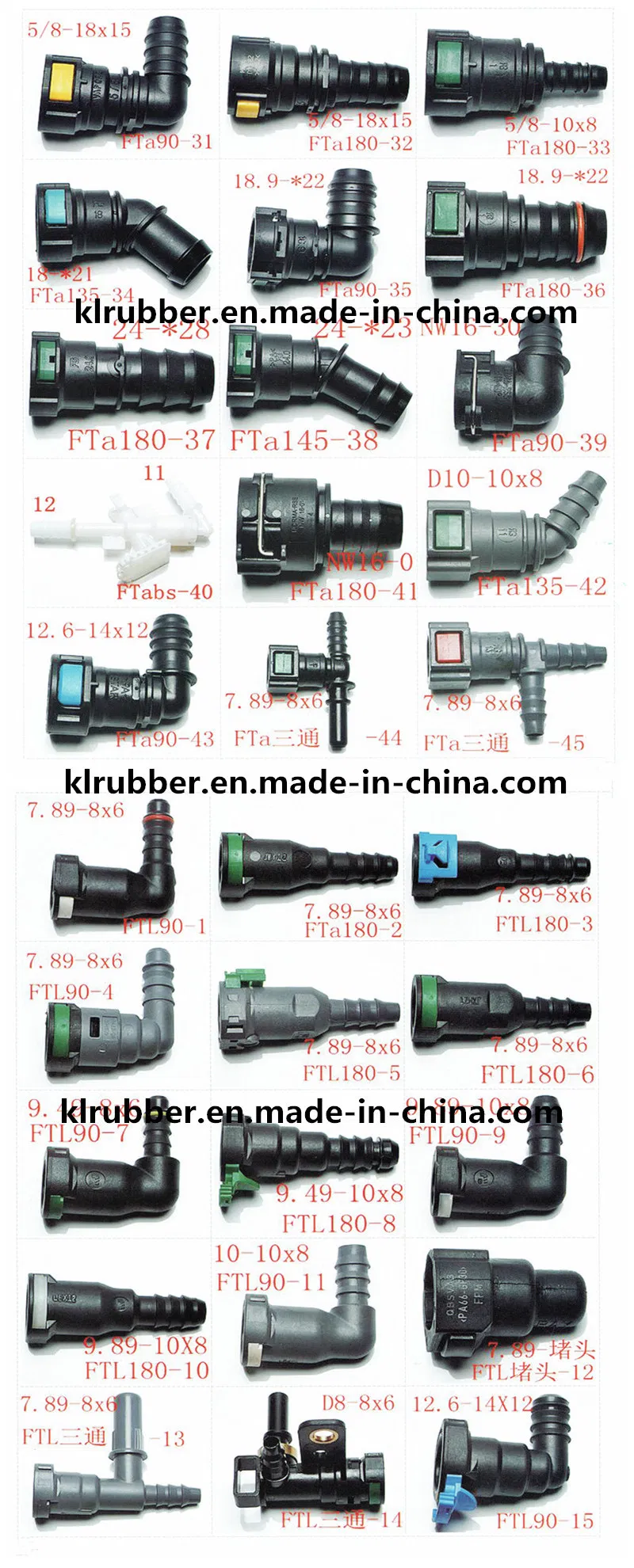

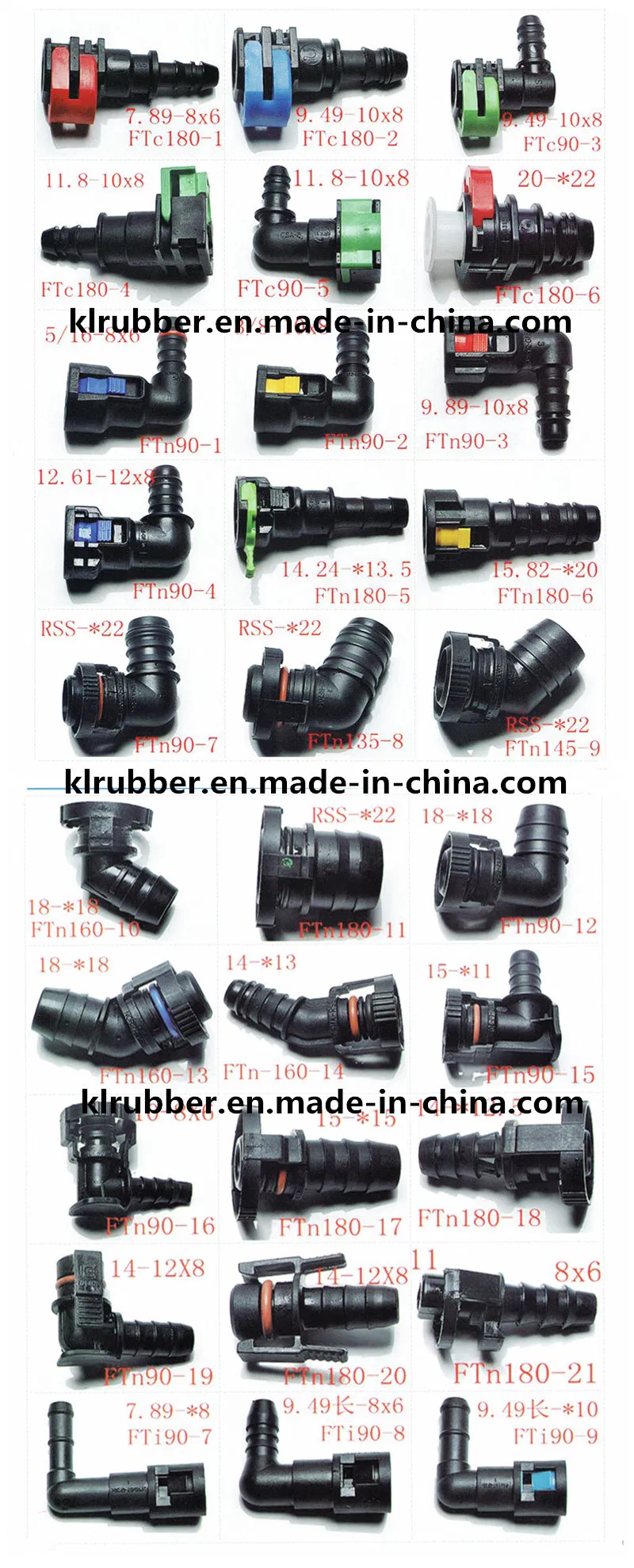

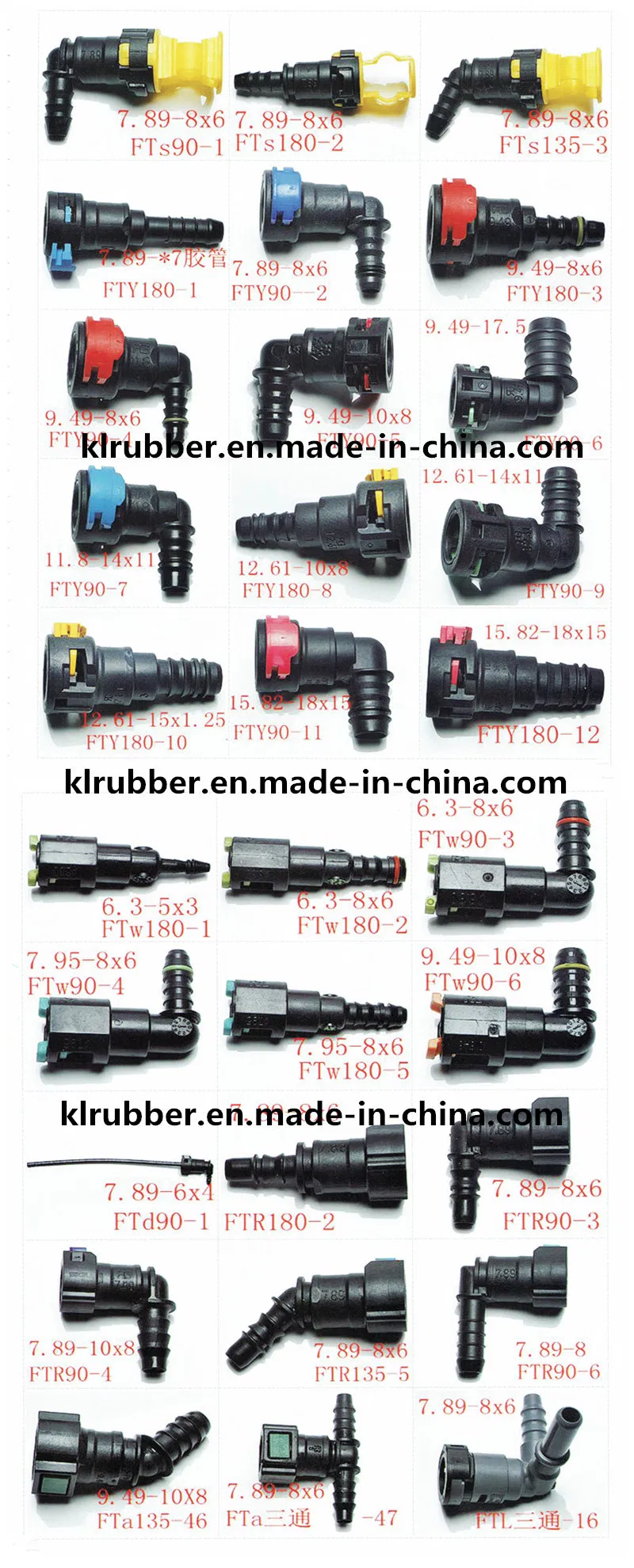

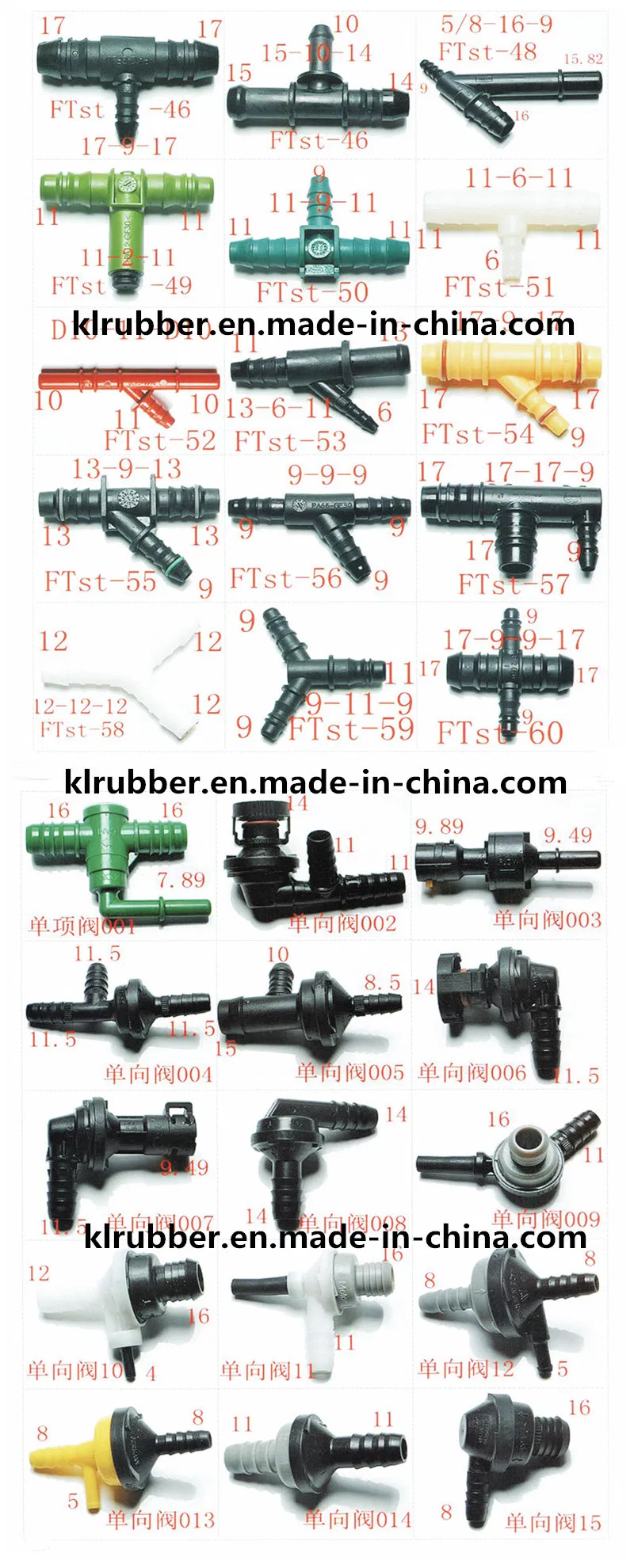

Catalog 1 Catalog 2 Catalog 3 Catalog 4 Catalog 5 Catalog 6
FAQ
What standard do these quick connectors comply with?
Our quick connectors are strictly designed and manufactured in accordance with the SAE J2044-2009 specification for liquid fuel and vapor or emissions systems.
What is the operating temperature range?
The standard working temperature is between -40°C and 115°C, and they can withstand up to 150°C for short periods.
Do I need special tools for assembly?
No, these connectors allow for fast assembly without any tools, which reduces both time and installation costs.
What fluids can these connectors handle?
They are suitable for gasoline, diesel, ethanol, methanol, natural gas delivery systems, as well as oil vapor and water cooling lines.
What materials are used for the sealing rings?
The O-rings are made from high-performance materials such as FKM, FVMQ, HNBR, or AEM, depending on the specific application requirements.
Are these suitable for space-constrained installations?
Yes, the compact building method and the fact that only a finger-width of space is needed for operation make them ideal for extremely close installation conditions.
