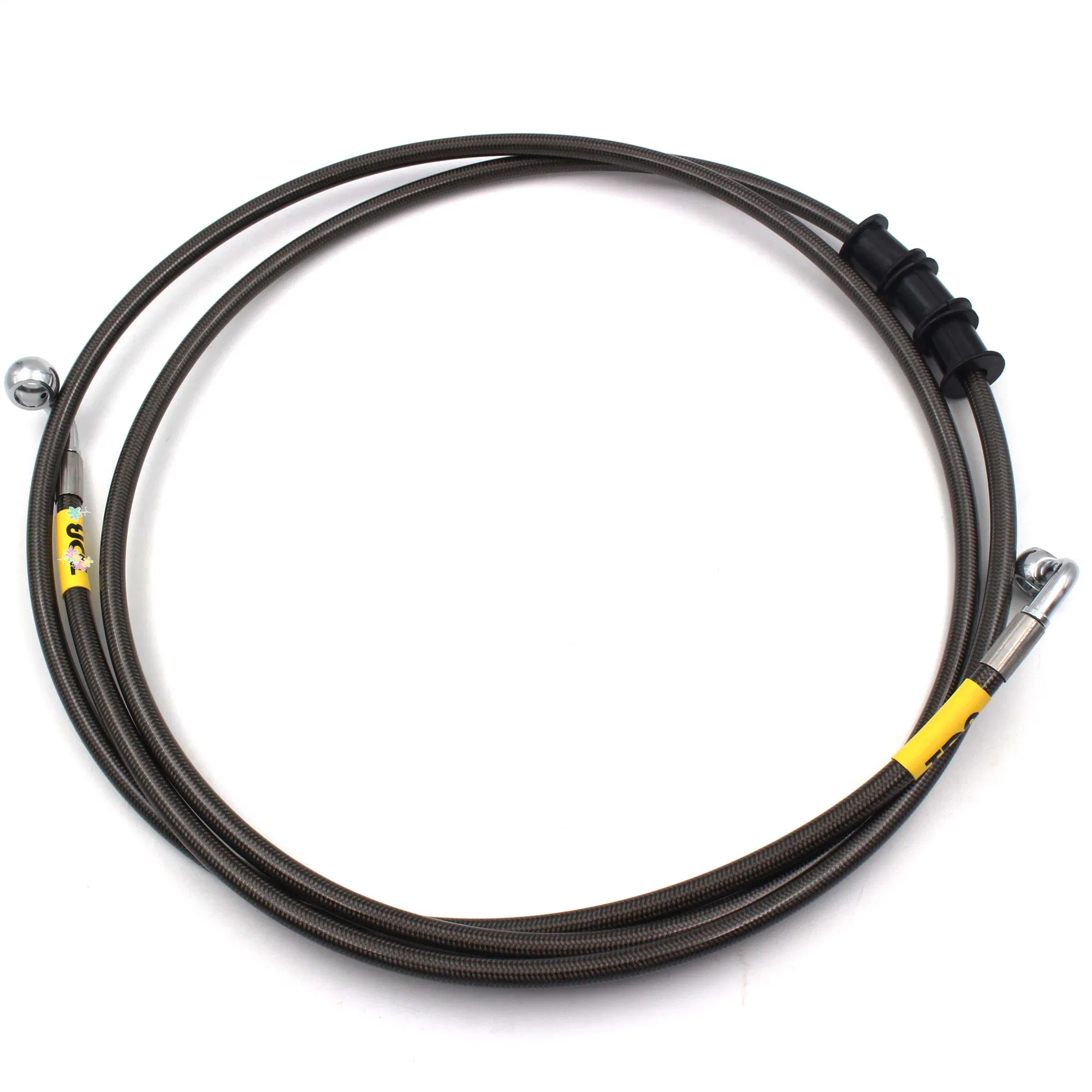

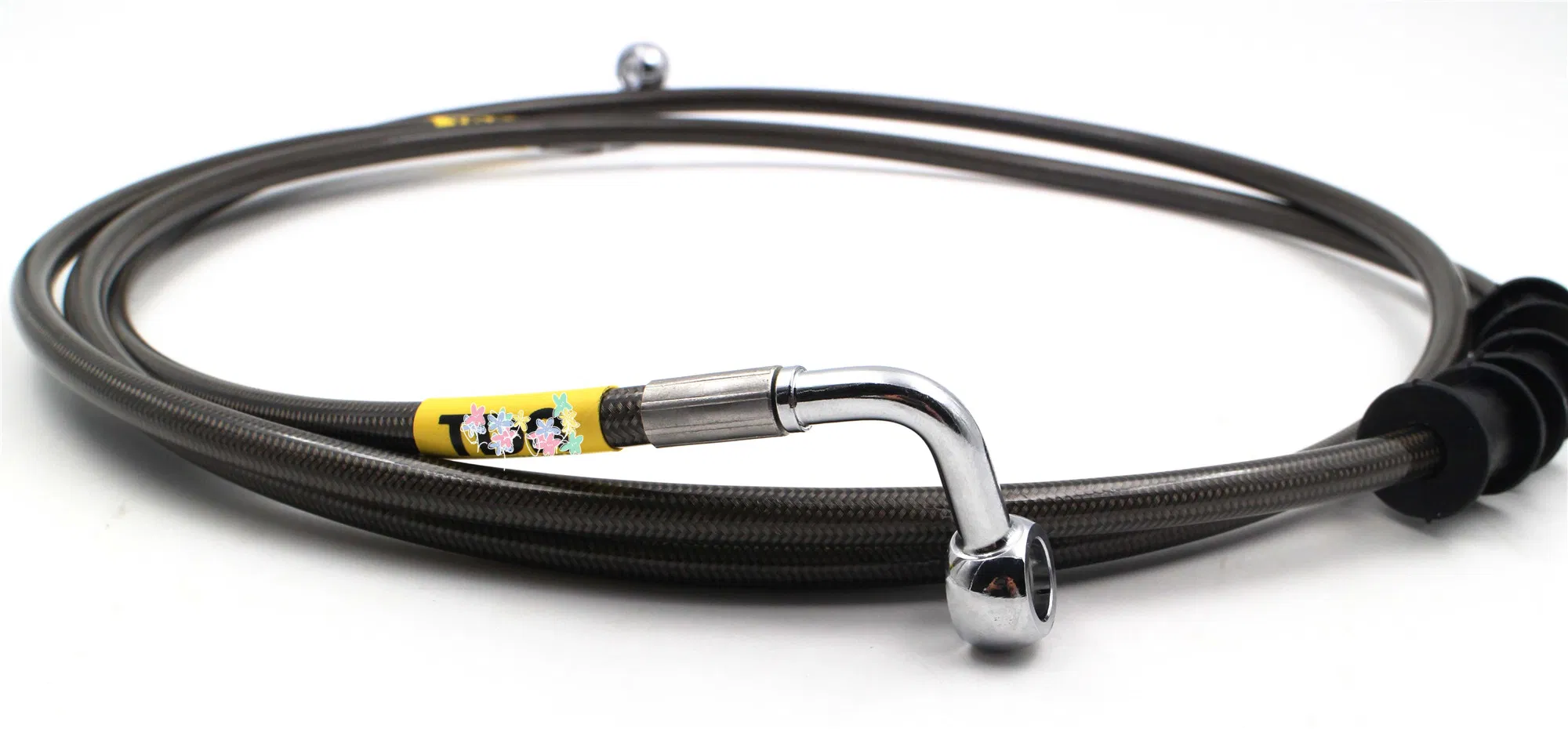

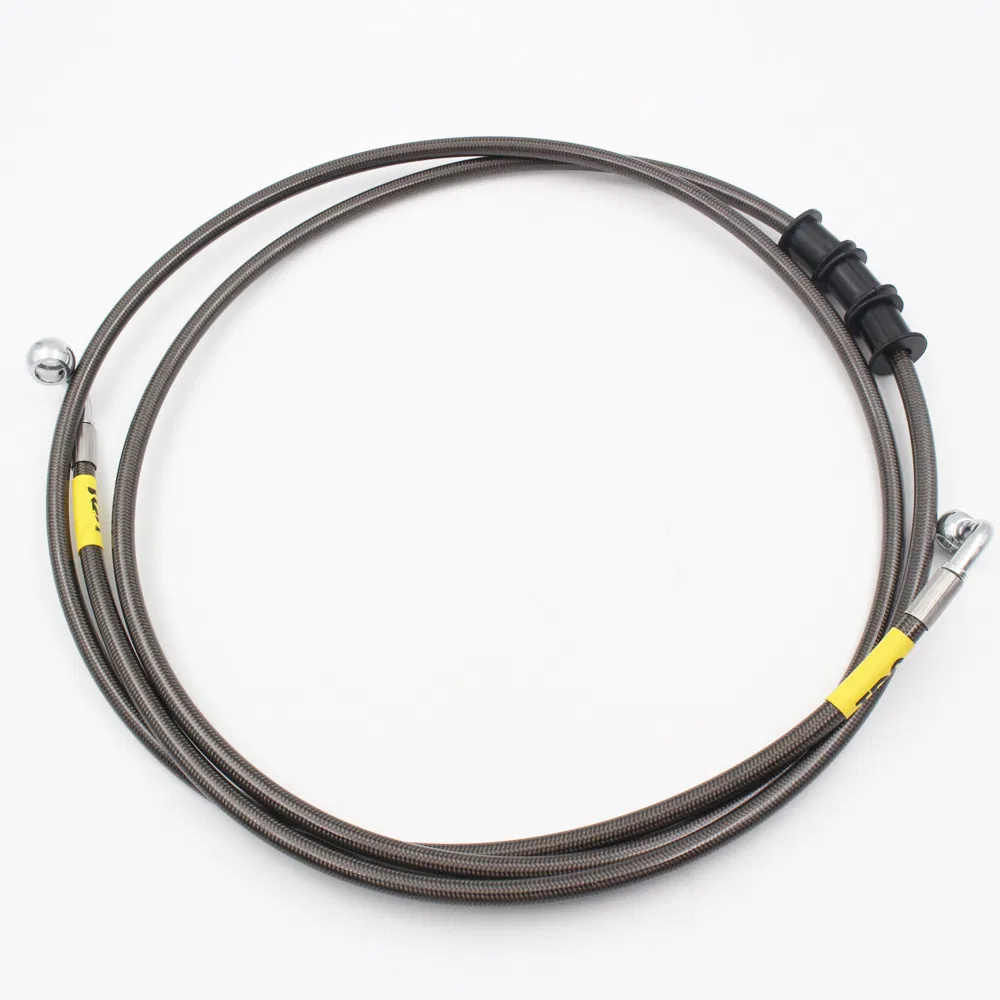

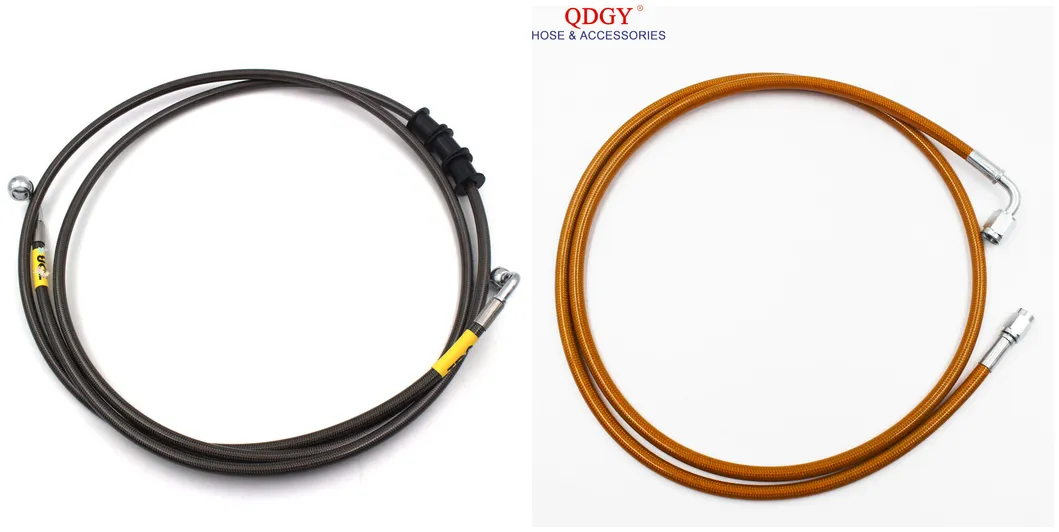

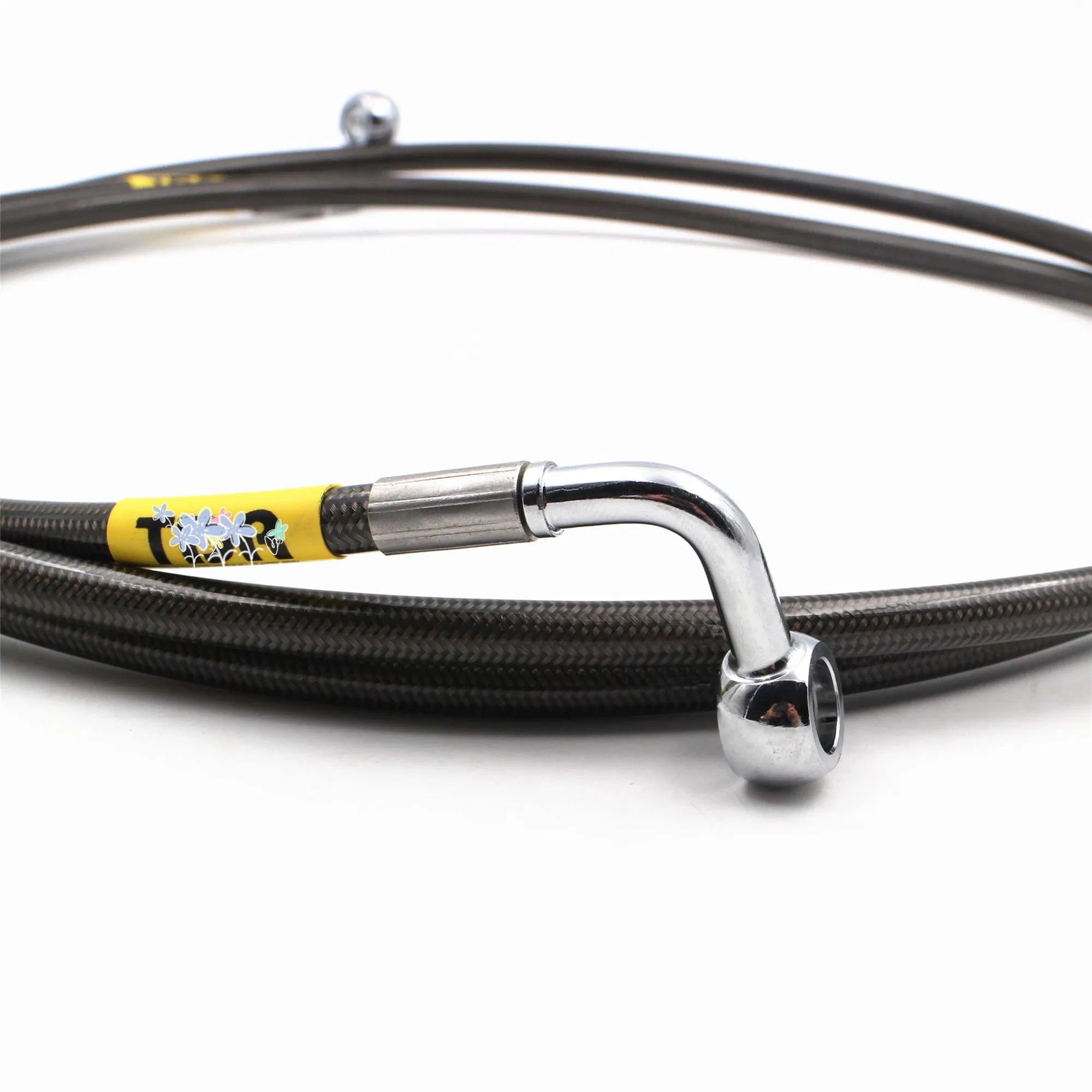

High Speed Performance Stainless Steel Braided PTFE Brake Hose Kits

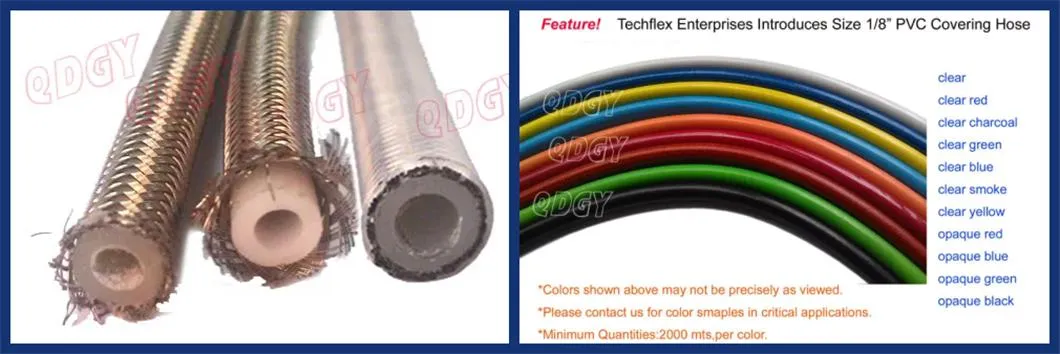

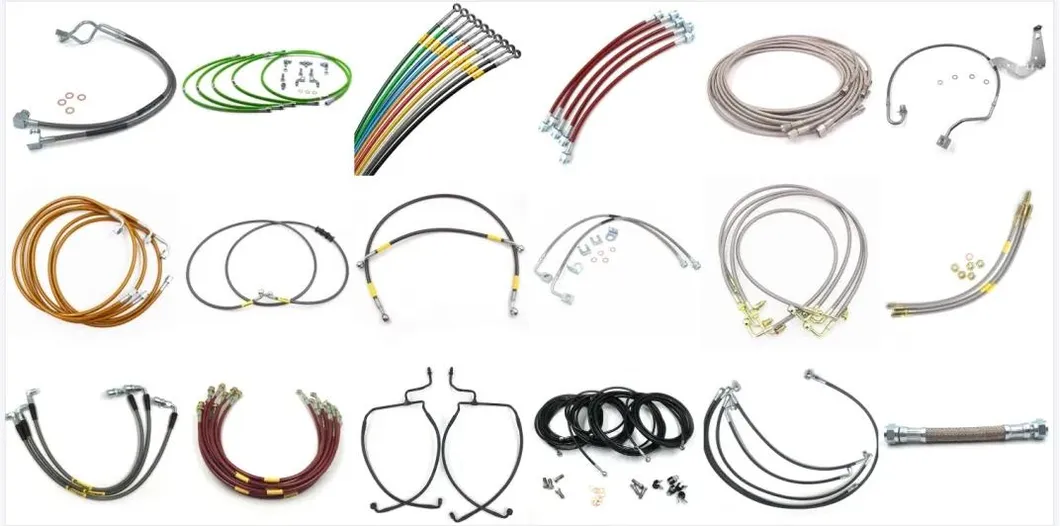

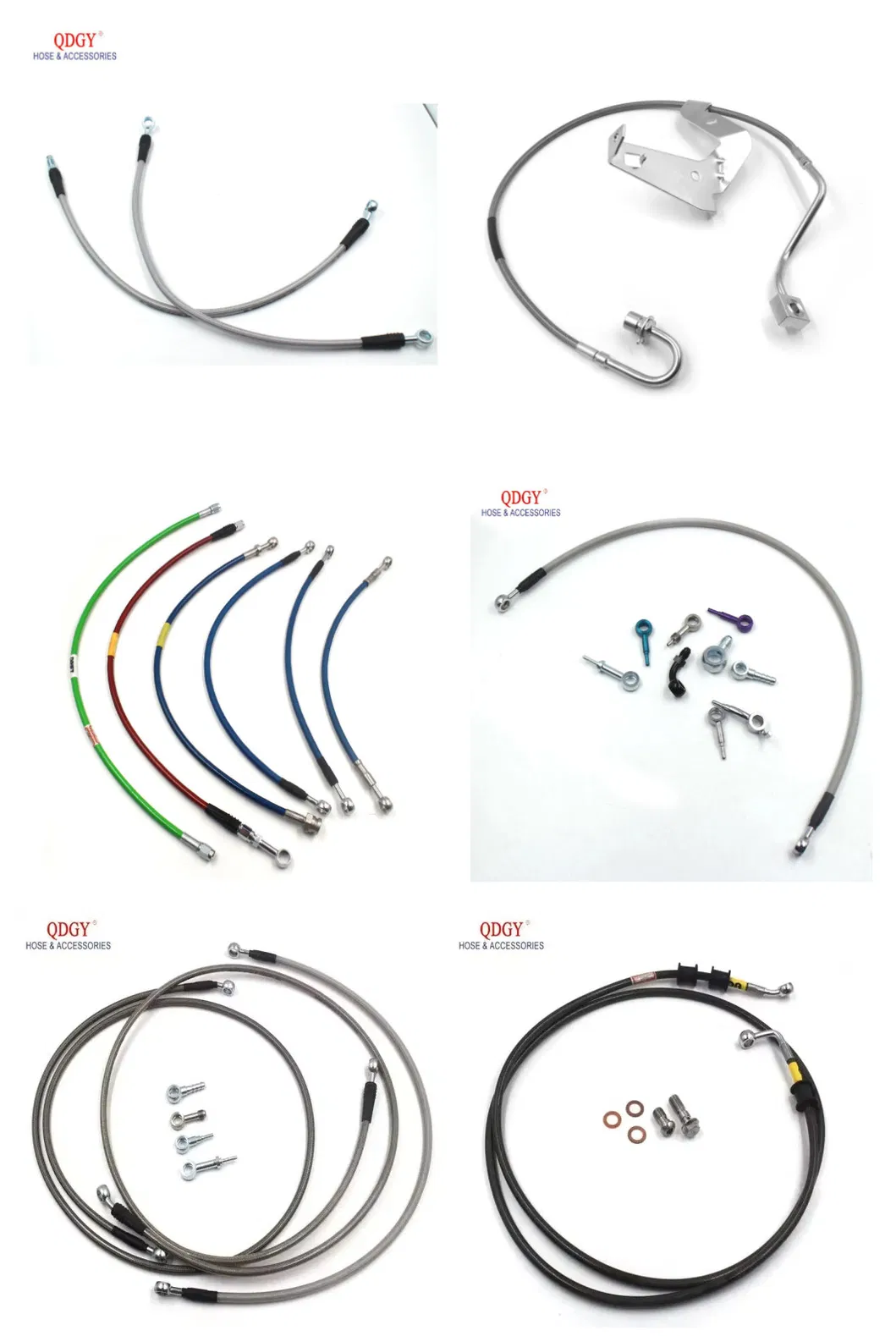

Specifically designed and assembled for high-performance applications. An inner Teflon tube covered with high-quality stainless steel braided weave provides durability and solid pedal feel. All stainless brake lines are covered with a clear or transparent colorful protective hose for a clean look. 6-line sets are available for front and rear assemblies.

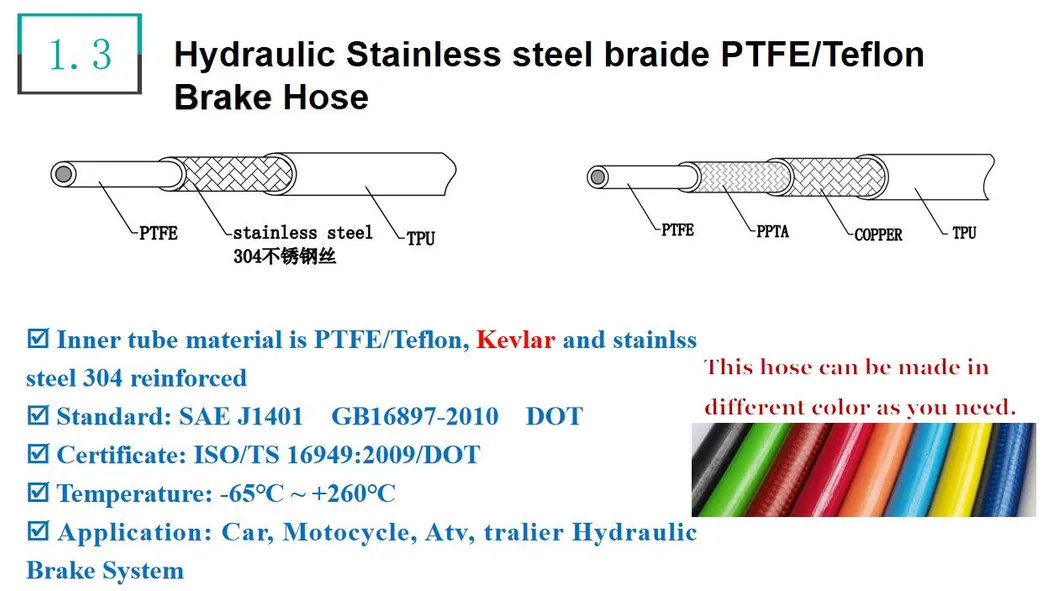

Hose Specifications:
| Part ID | Inner Diameter | Outer Diameter | Outer Layer | Braid Material | Inner Layer |
|---|---|---|---|---|---|
| GSG020 | 1/8" (3.2mm) | 0.295" (7.5mm) | PVC/TPU | 304 Stainless Steel | Teflon/PTFE |
| GSG026 | 3/16" (4.8mm) | 0.354" (9mm) | PVC/TPU | 304 Stainless Steel | Teflon/PTFE |
Automobile brake hoses are critical components used in braking systems to transfer hydraulic or air pressure. They ensure braking force is transmitted effectively to liners or calipers. Hydraulic systems generally utilize disc types suitable for motorcycles, passenger cars, and light trucks.
Key Features:

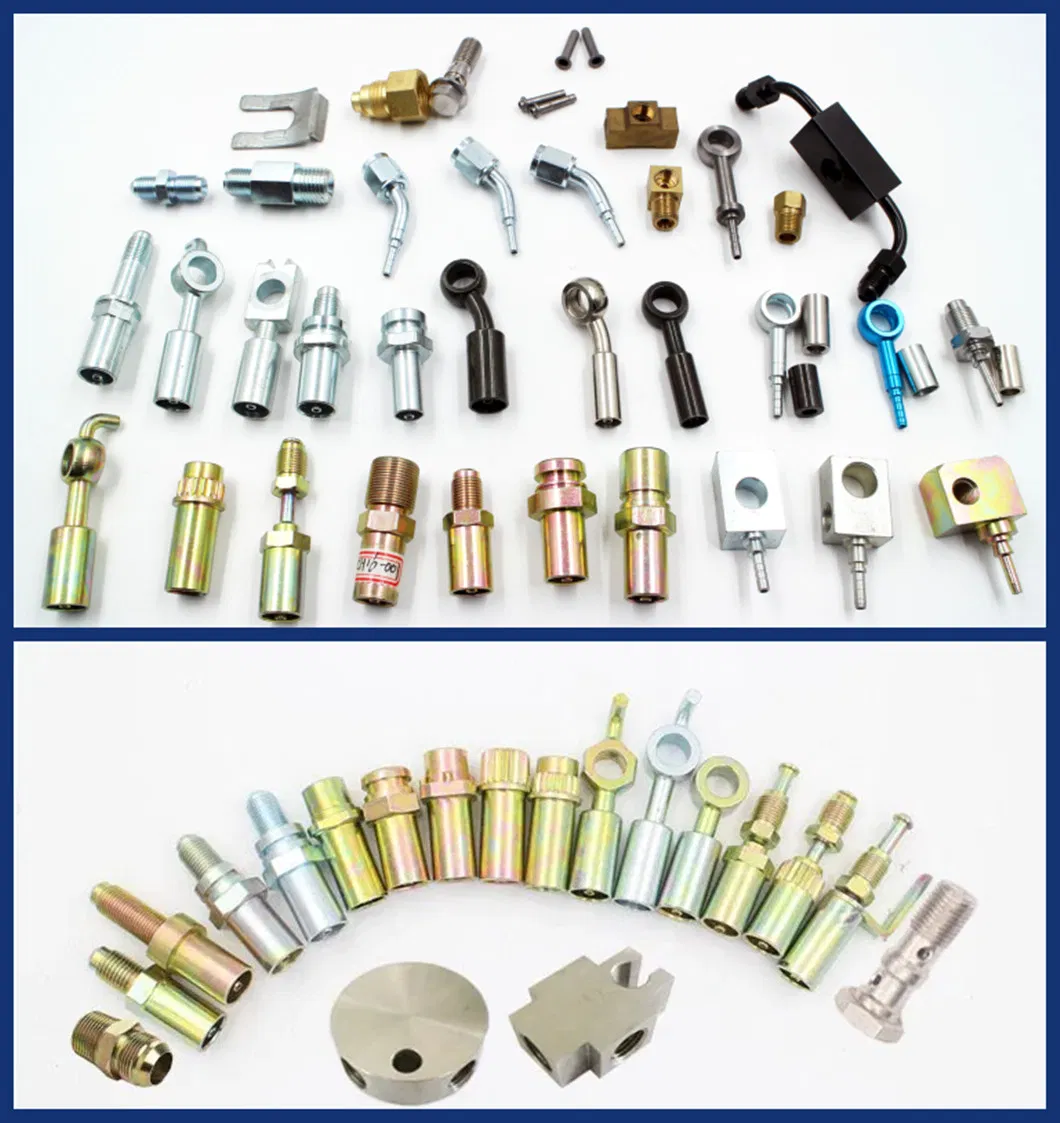

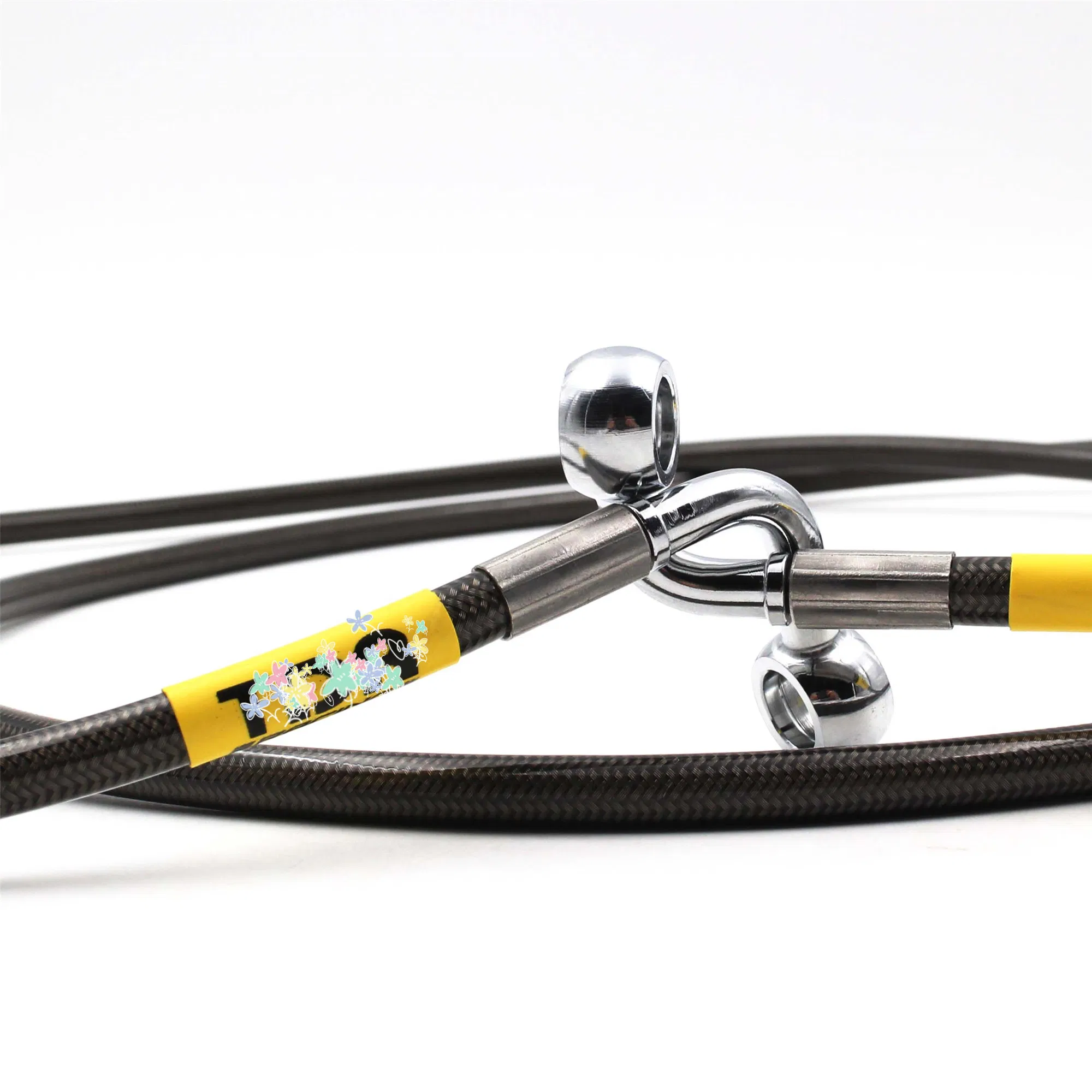

| Fitting Types | Female, Male, Banjo, Bolts/Nuts, Welding, Special Adapters |
|---|---|
| Thread Measures | M10x1, M12x1.25, 1/8NPT, 1/8x28BSPP, 3/8x24, 7/16x20, etc. |
| Material Options | Steel, Stainless Steel, Brass, Aluminum |

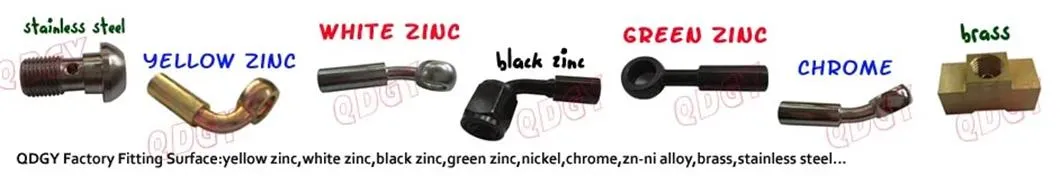

| Surface Finish | Yellow/White/Green Zinc, Nickel, Chrome, Zn-Ni Alloy |
| Test Items | Conditions | Standard Requirement | Test Result |
|---|---|---|---|
| Expansion | 1000psi | 0.33cc/ft max | 0.14~0.16cc/ft |
| Burst Pressure | 4000psi x 2min | >7000psi No seepage | >10500psi |
| Tensile Strength | 218±3mm/min | >1446N | 2400N |
| Cold Bend | -45°C x 72h | No cracking | Pass |
| Salt Spray | 5% NaCl, 24h | No red rust | Pass |
