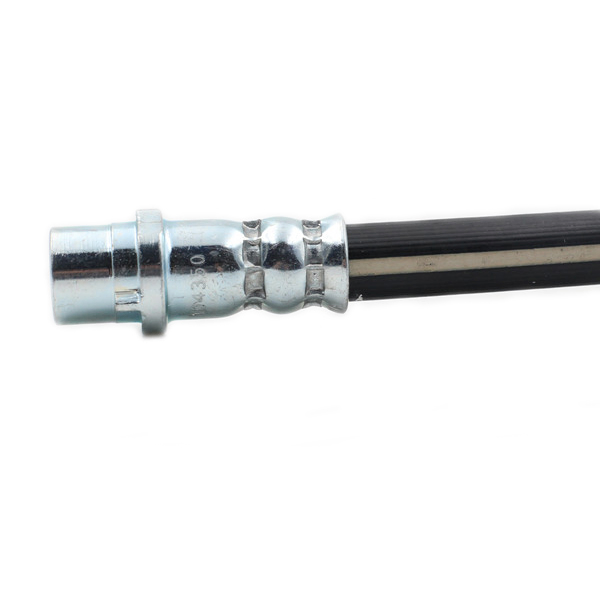

Car Parts Auto Chassis SAE J1401 1/8 Flexible Hydraulic Brake System

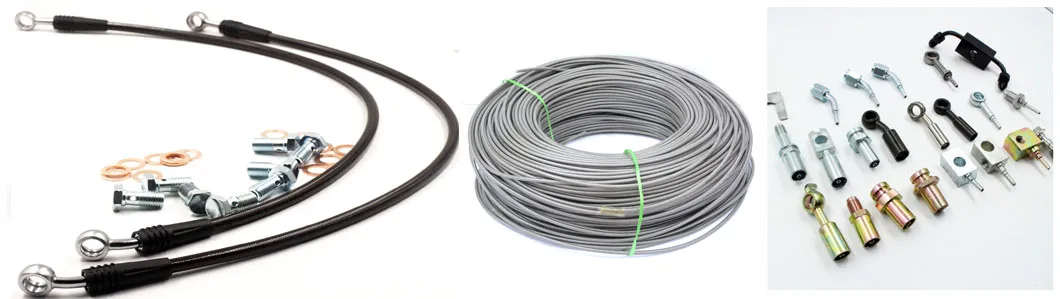

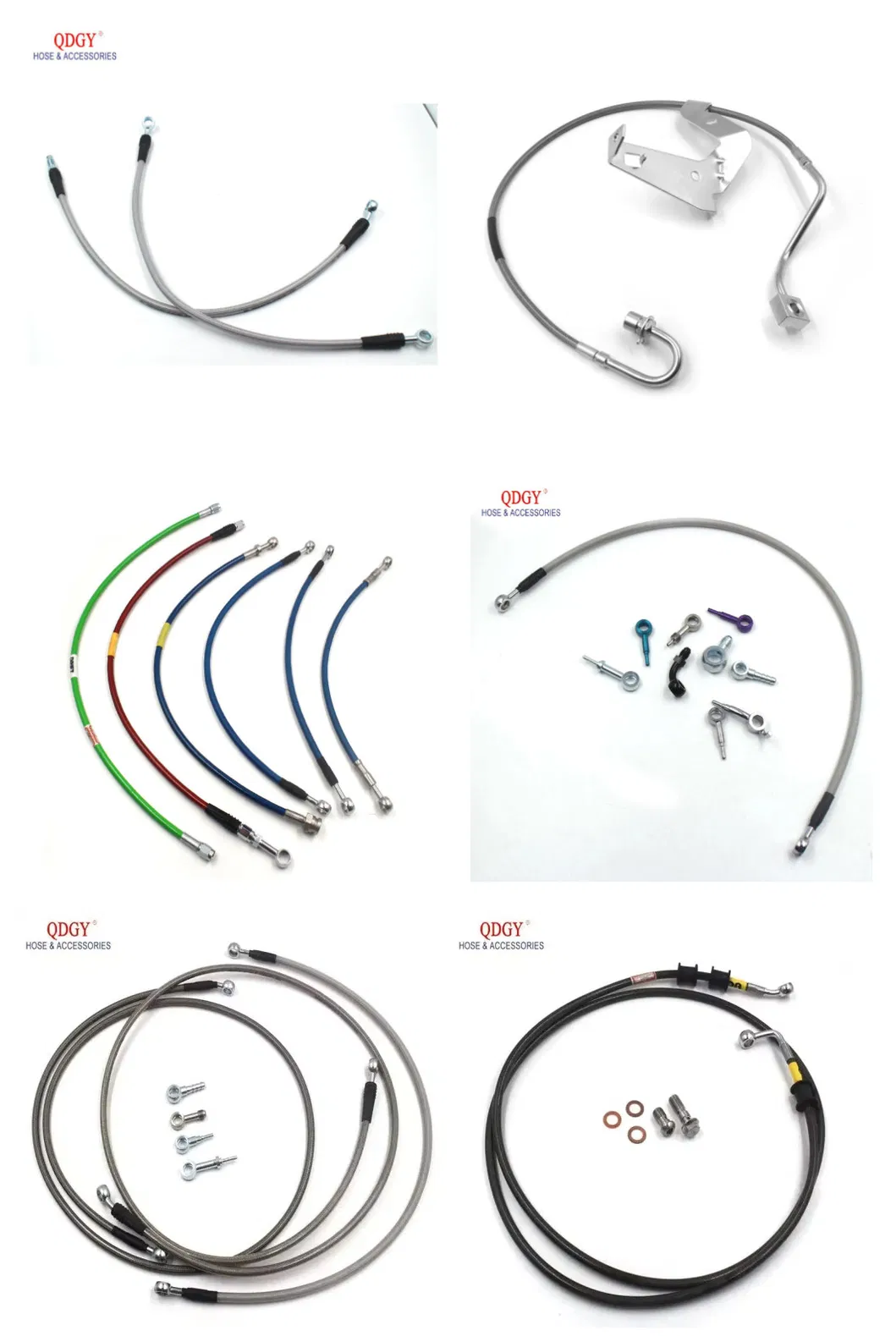

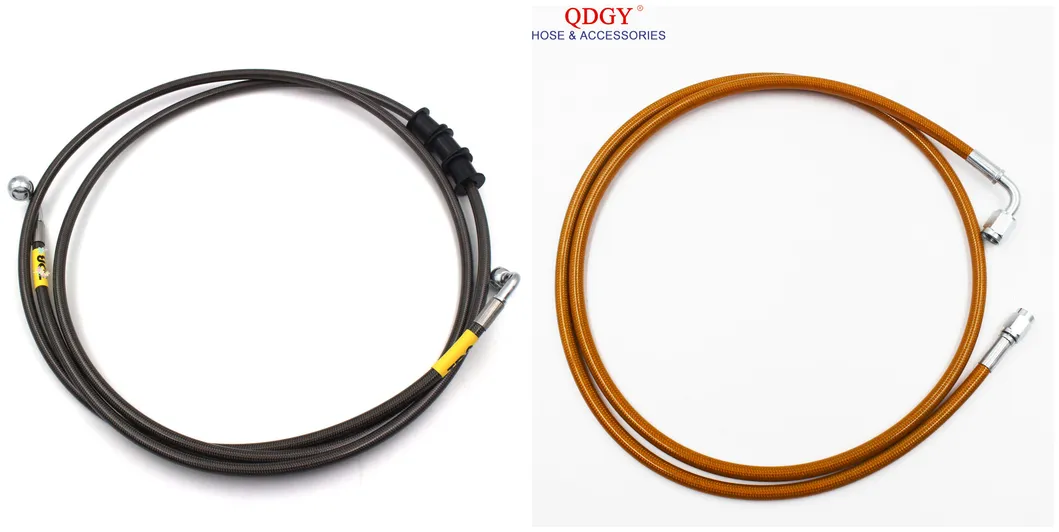

Specifically designed and assembled for vehicles. An inner Teflon tube covered with high-quality stainless steel braided weave provides durability and solid pedal feel. All stainless brake lines are covered with a clear or transparent colorful protective hose for a clean look.

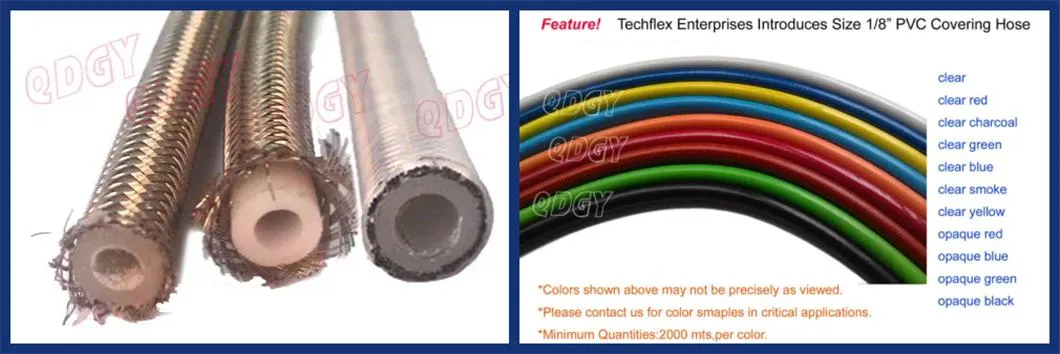

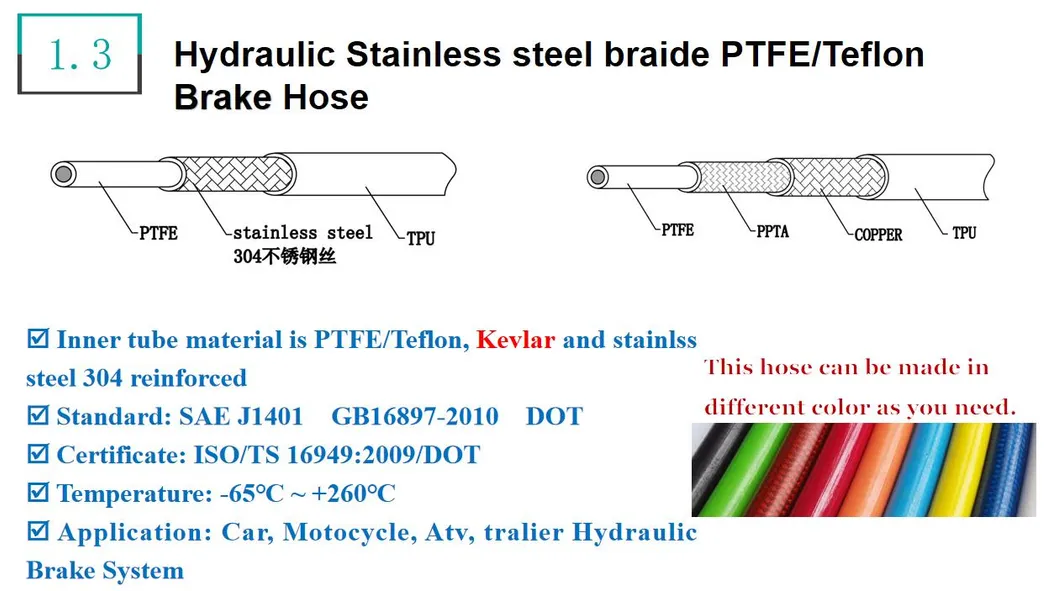

Stainless Steel Braided Teflon Brake Hose Specifications:
| Part NO. | Inner Diameter | Outer Diameter | Outer Layer | Braid Material | Inner Layer |
|---|---|---|---|---|---|
| GSG020 | 1/8" (3.2mm) | 0.295" (7.5mm) | PVC/TPU | 304 Stainless Steel | Teflon/PTFE |
| GSG026 | 3/16" (4.8mm) | 0.354" (9mm) | PVC/TPU | 304 Stainless Steel | Teflon/PTFE |
| GSG028 | 1/8" (3.2mm) | 0.255" (6.5mm) | No covering | 304 Stainless Steel | Teflon/PTFE |
Main Function: Transfer brake medium in the car brake system. Ensure braking force is transmitted to linings or calipers effectively at any time. Hydraulic brakes are mostly disc type, suitable for Motorcycles, Passenger cars, and Trucks.

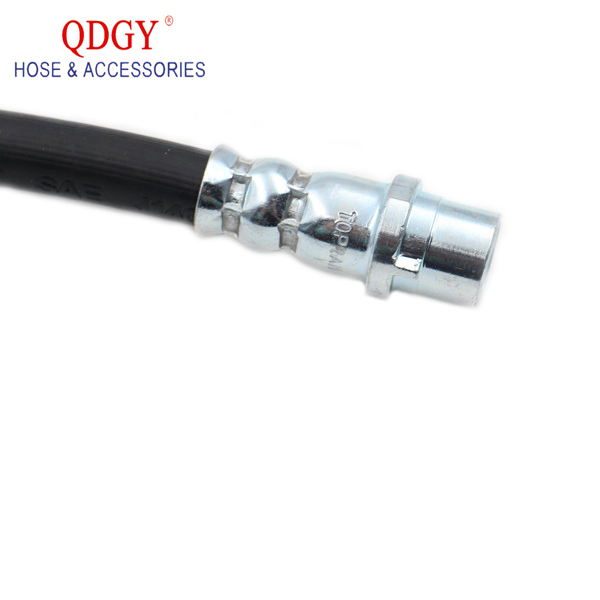

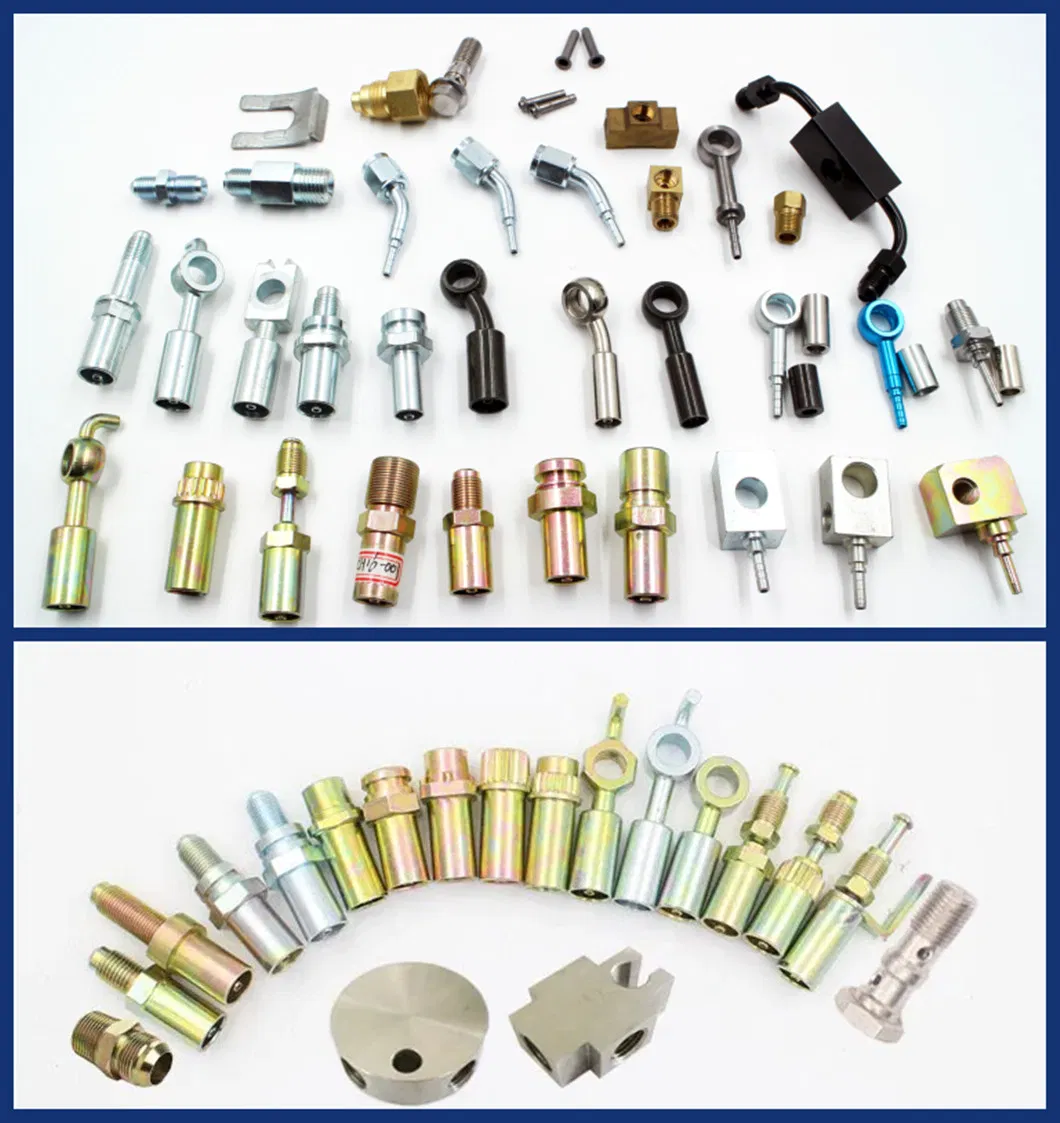

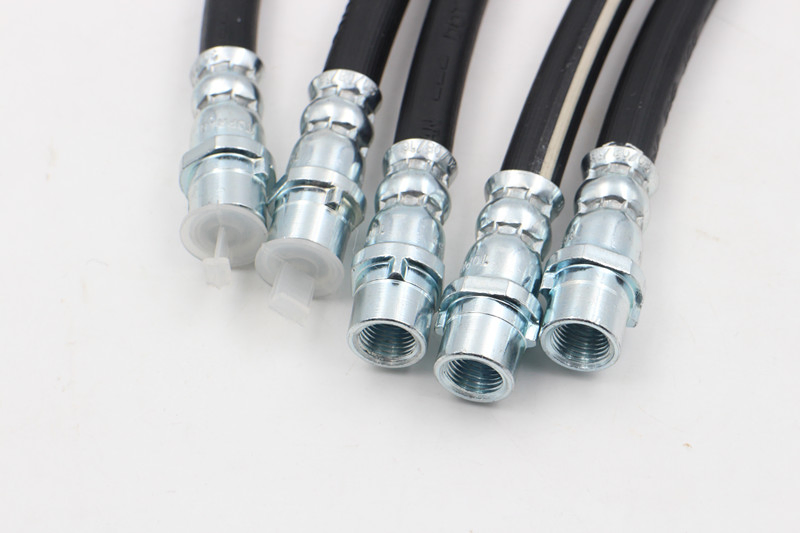

| Fitting Type | Female, Male, Banjo, Bolt and Nuts, Welding, Special adapters |
|---|---|
| Thread Measure | M10x1, M12x1.25, 1/8NPT, 3/8x24, 7/16x24, G1/8, etc. |
| Fitting Material | Steel, Stainless Steel, Brass, Aluminum |
| Surface Treatment | Yellow/White/Green zinc, Nickel, Chrome, Zn-Ni Alloy |
| Test Items | Standard | Test Result |
|---|---|---|
| Expansion (1000psi) | 0.33cc/ft max | 0.14~0.16cc/ft |
| Burst Pressure | >7000psi | >10500psi |
| Tensile Strength | >1446N | 2400N |
| Cold Bend (-45°C) | No cracking | Pass |
| Salt Spray (24h) | No red rust | Pass |

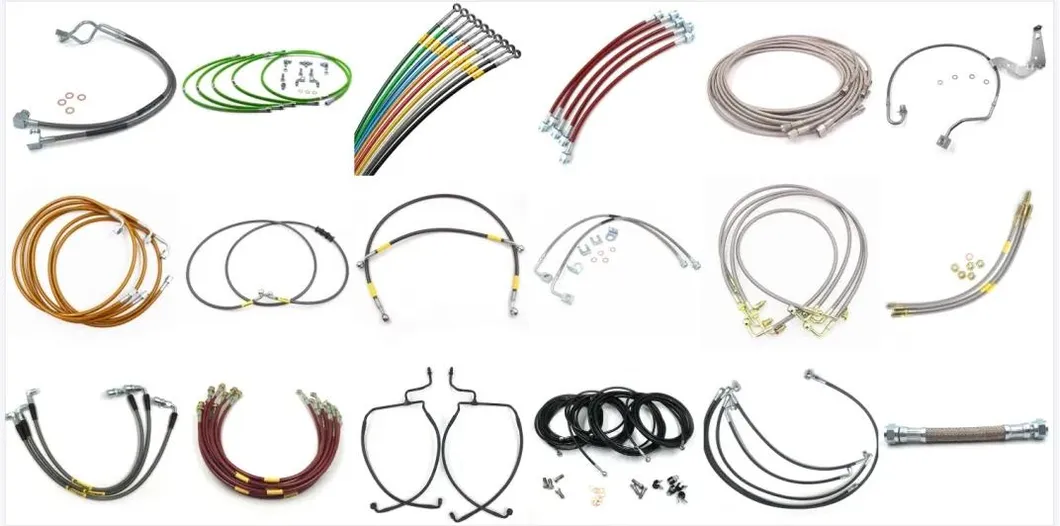

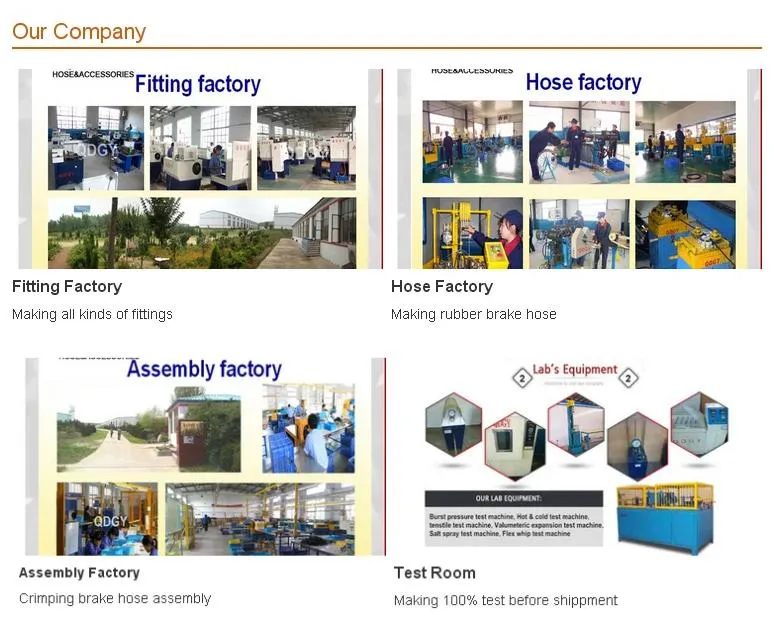

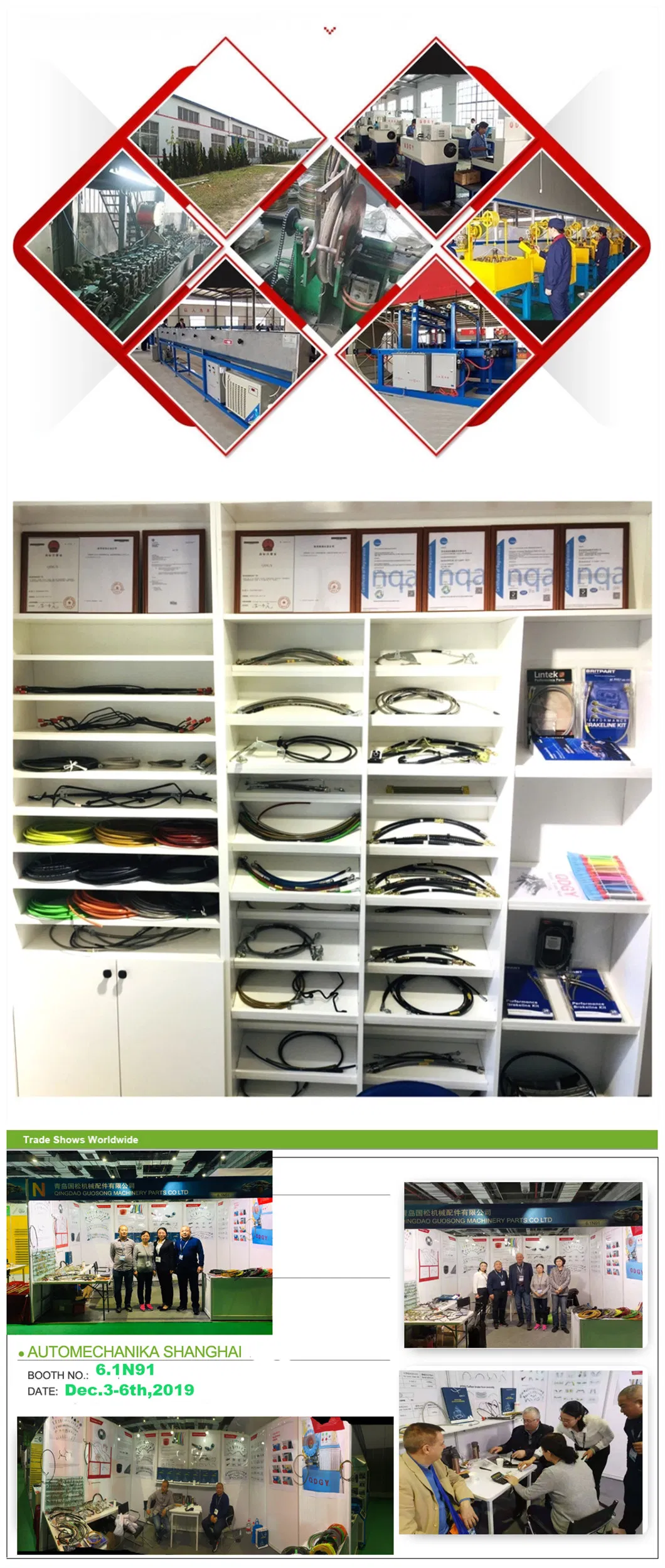

Specialized production in SAE J1401 Standard OEM brake hoses, Custom brake lines, and Hydraulic assemblies. Equipped with advanced testing machinery and a strict quality control system to ensure high-performance output.
