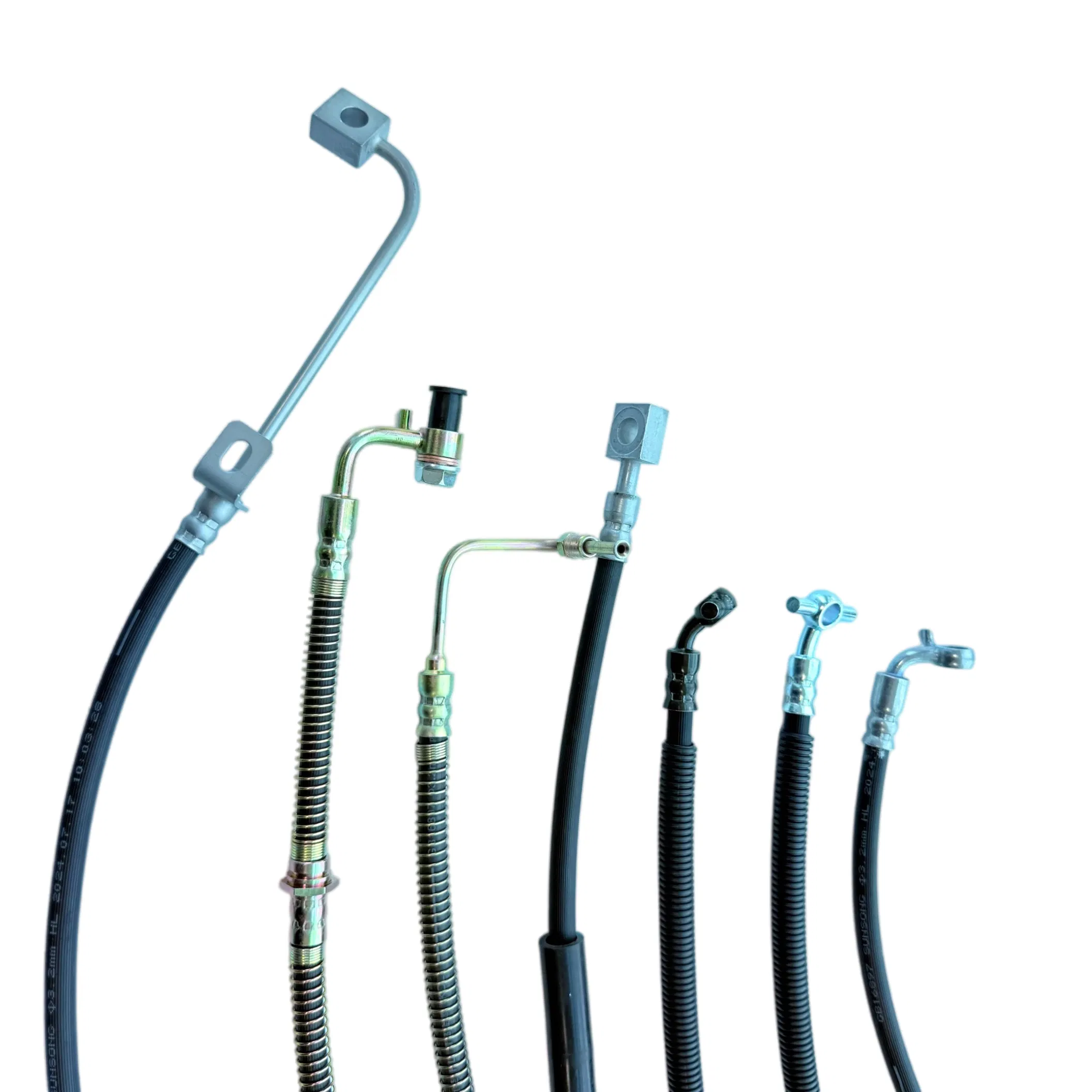

High-Performance Brake Line Systems
We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.
| Category | Type | Material & Construction | End Fittings | Dimensions | Pressure Rating |
|---|---|---|---|---|---|

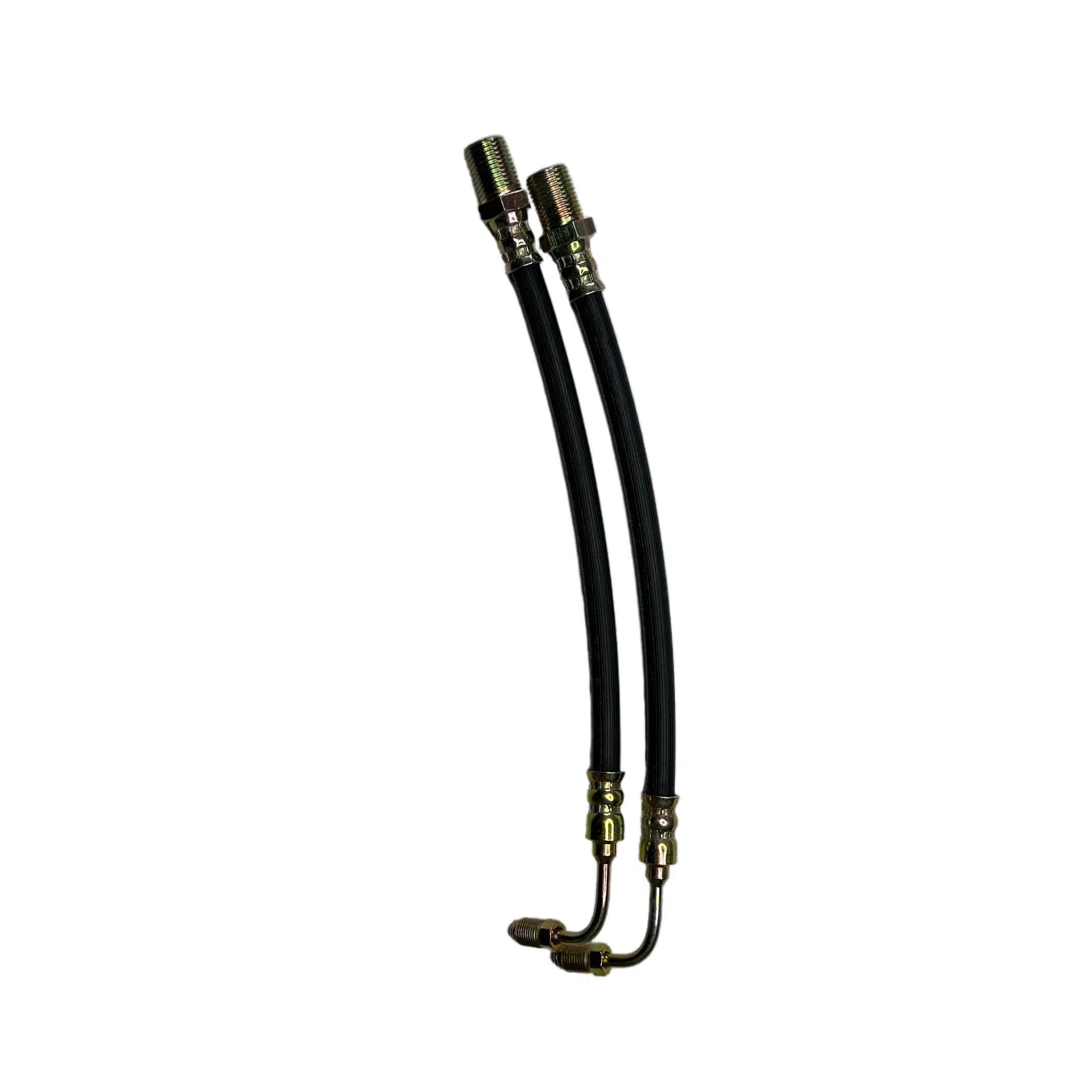

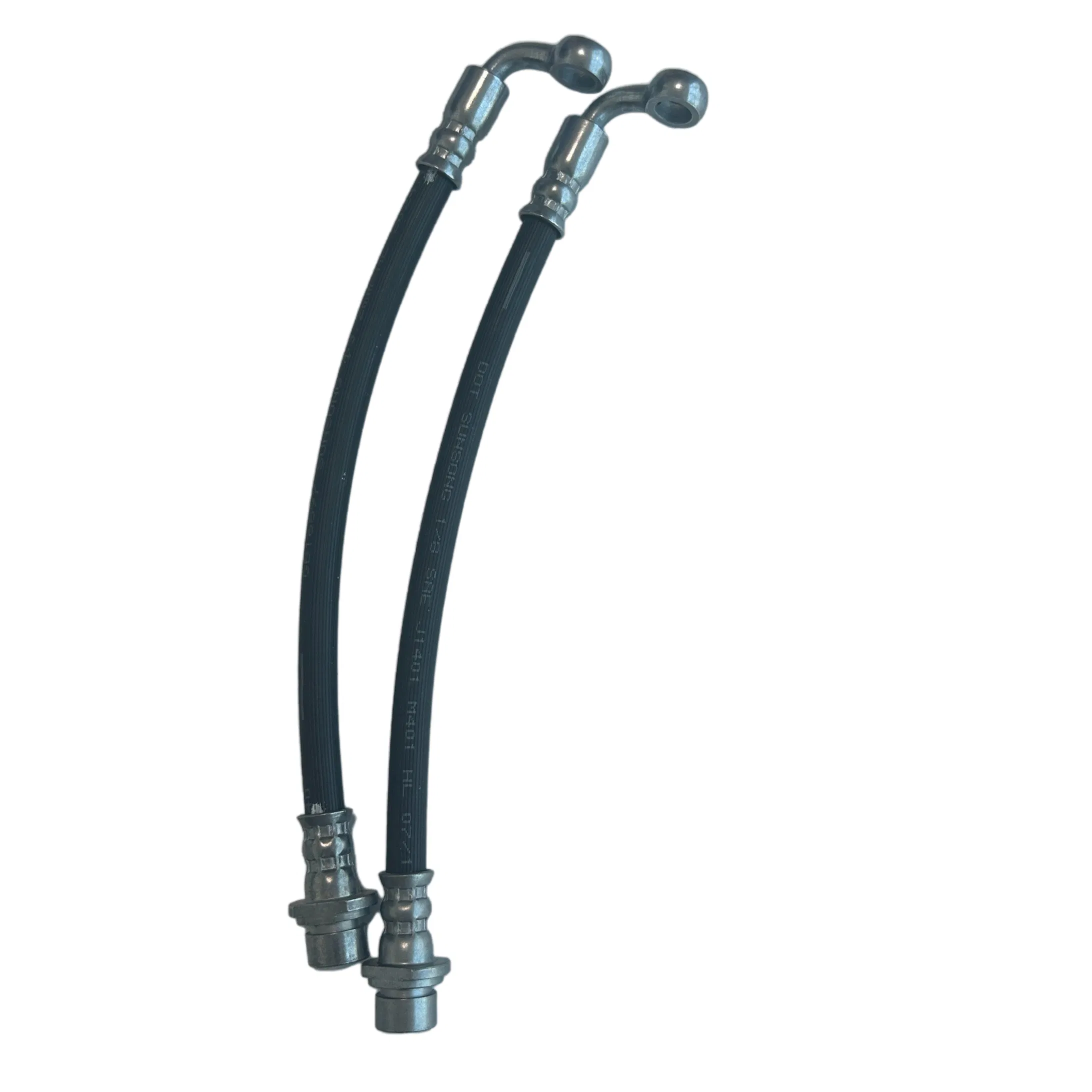

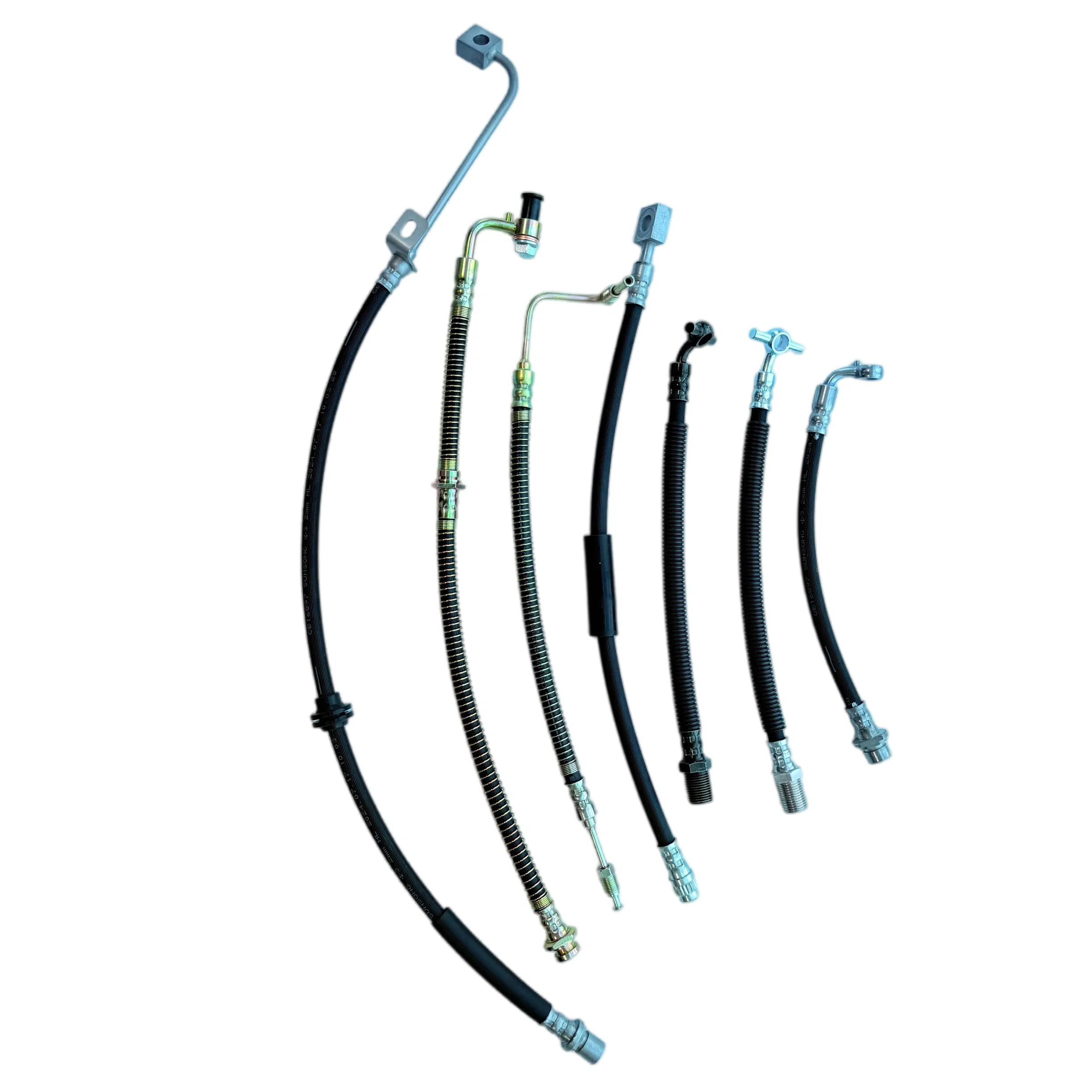

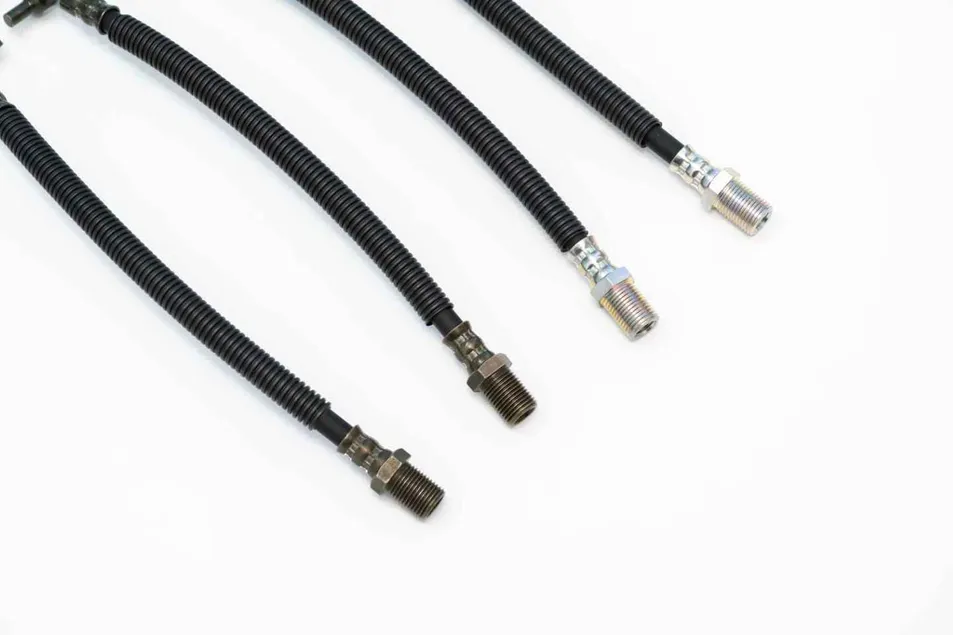

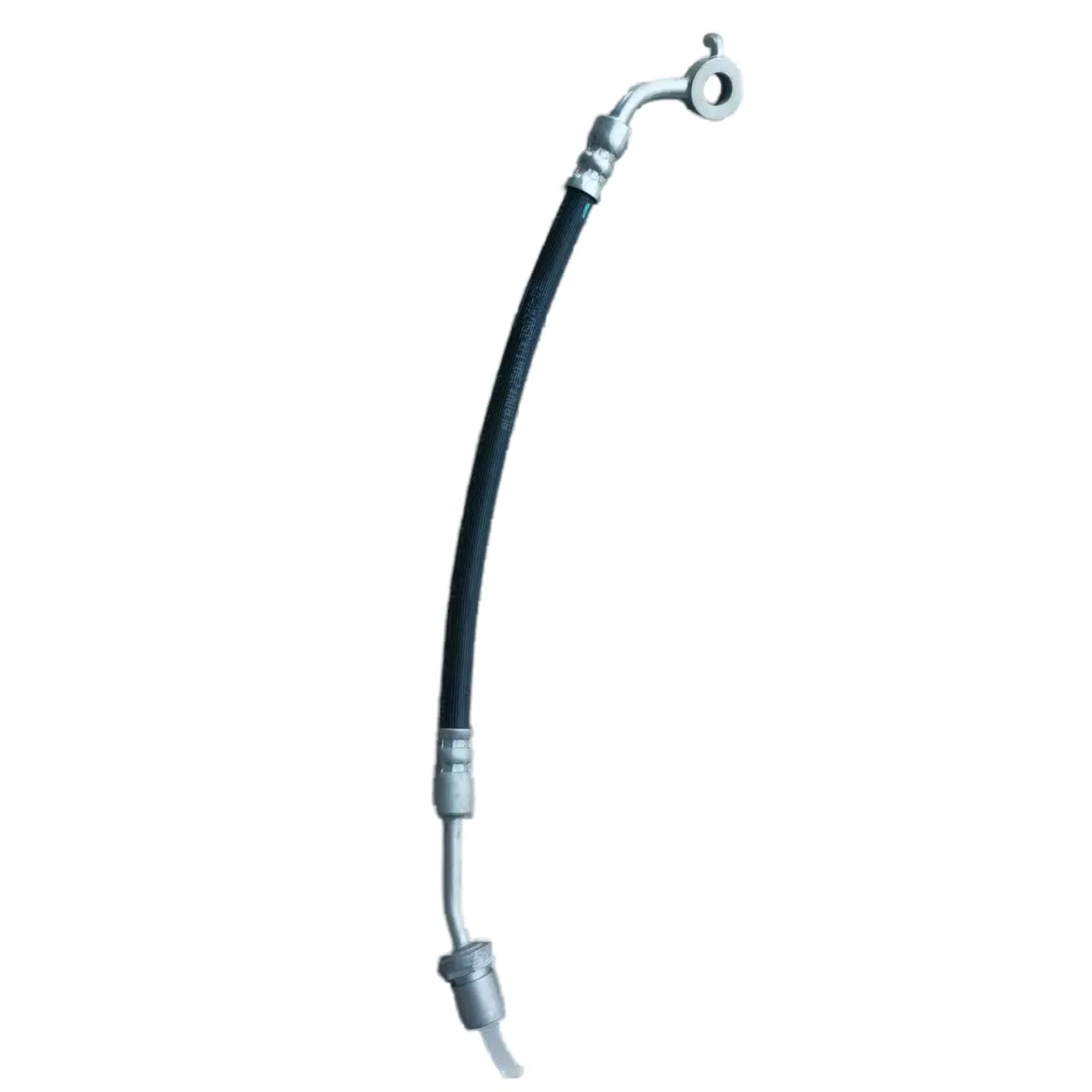

| Brake Hose | Hydraulic Brake Hose | ECE R90 compliant synthetic rubber, Textile/steel wire reinforcement | M10×1.0, M12×1.0, 3/8-24 UNF; Zinc-plated steel | ID: 3/16" (4.75mm); Length: 300-1500mm | 2,500 PSI (172 bar) |
| Brake Hose | PTFE Stainless Braided | PTFE inner liner, 304/316 stainless steel braid | AN Fittings: -3AN, -4AN; Metric: M10×1.0 | ID: 0.19-0.25"; Custom Length | 4,000+ PSI |
| Metal Line | Steel Brake Line | Double-wall galvanized steel, SAE J1047 compliant | 45° inverted (SAE), bubble (ISO) | OD: 3/16" (4.75mm), 1/4" (6mm) | 3,000 PSI |
We provide highly flexible custom brake tubing solutions designed to meet your exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel.

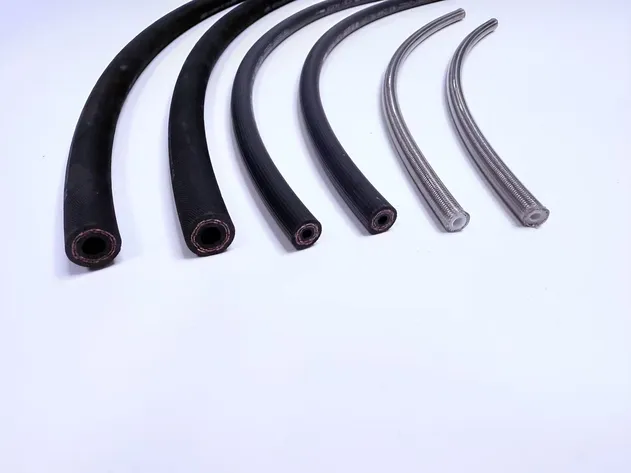

EPDM Rubber, PTFE with Stainless Braid, and various reinforcement layers for high-pressure applications.

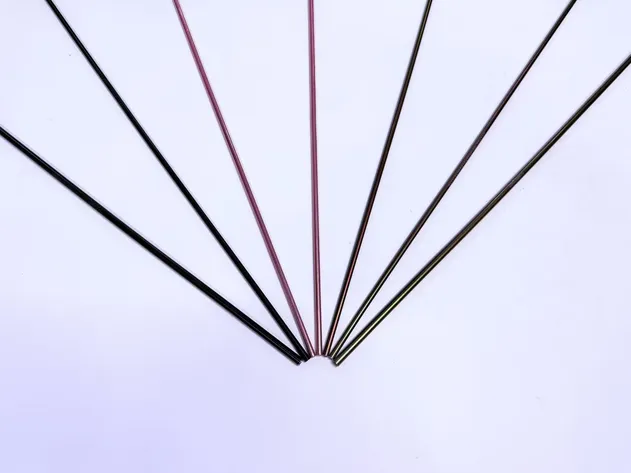

Double-wall galvanized steel, Copper-Nickel (Kunifer), and Stainless Steel with complex bend patterns.

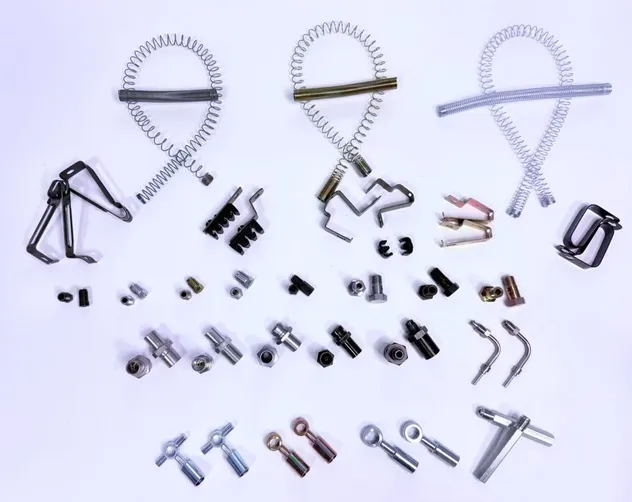

Extensive variety of end fittings: UNF, NPT, Metric threads; Banjo, 45°, and 90° angles.

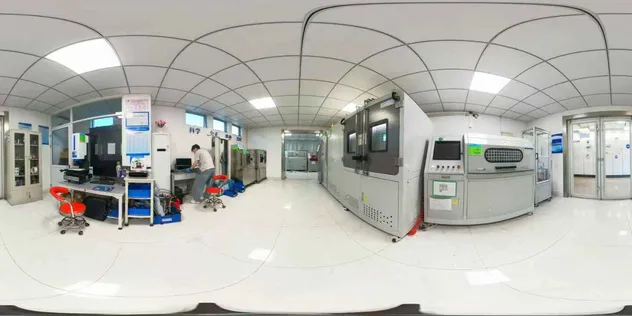

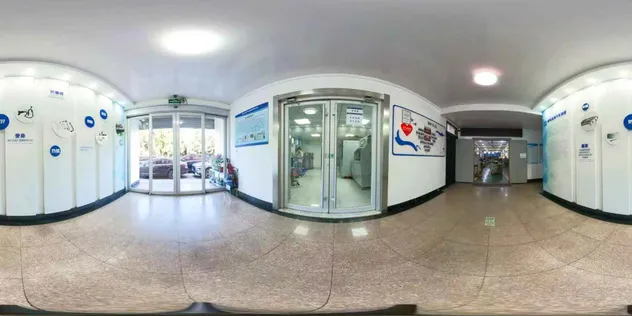

Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements, guaranteeing superior performance and durability.

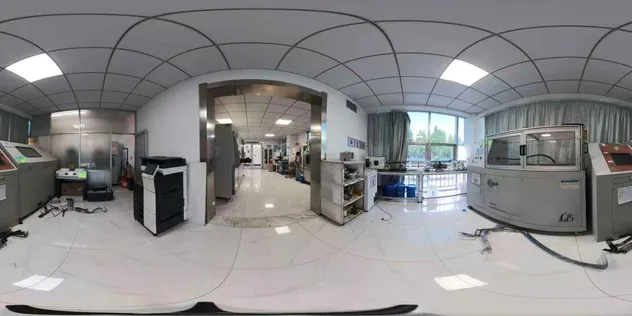

Equipped with pulse test rigs, environmental chambers, and burst pressure testers, we ensure every assembly performs reliably under the most demanding conditions.
Full technical support including 2D/3D CAD drawings and compliance with SAE/ISO/ECE R90 standards.
Production based on OE part numbers or physical samples for distributors and retailers.
Custom performance data (pressure/temp), specialized materials, and unique fitting styles.
