| Model NO. | Brake hose |
| Type | Brake System |
| Material | Steel |
| Position | Front |
| Certification | ISO/TS16949, ISO14001, IATF-16949, ISO9001, ISO9002, DOT |
| Inner Tube Material | EPDM |
| Enhancement Layer | Fibre Weaving |
| Inside Diameter | 1/8 Inch |
| Production Capacity | 100000 Sets/Year |
| Package Size | 60.00cm * 30.00cm * 15.00cm |
| Package Gross Weight | 2.000kg |
| Transport Package | Plastic Bag + Carton Box + Pallet |

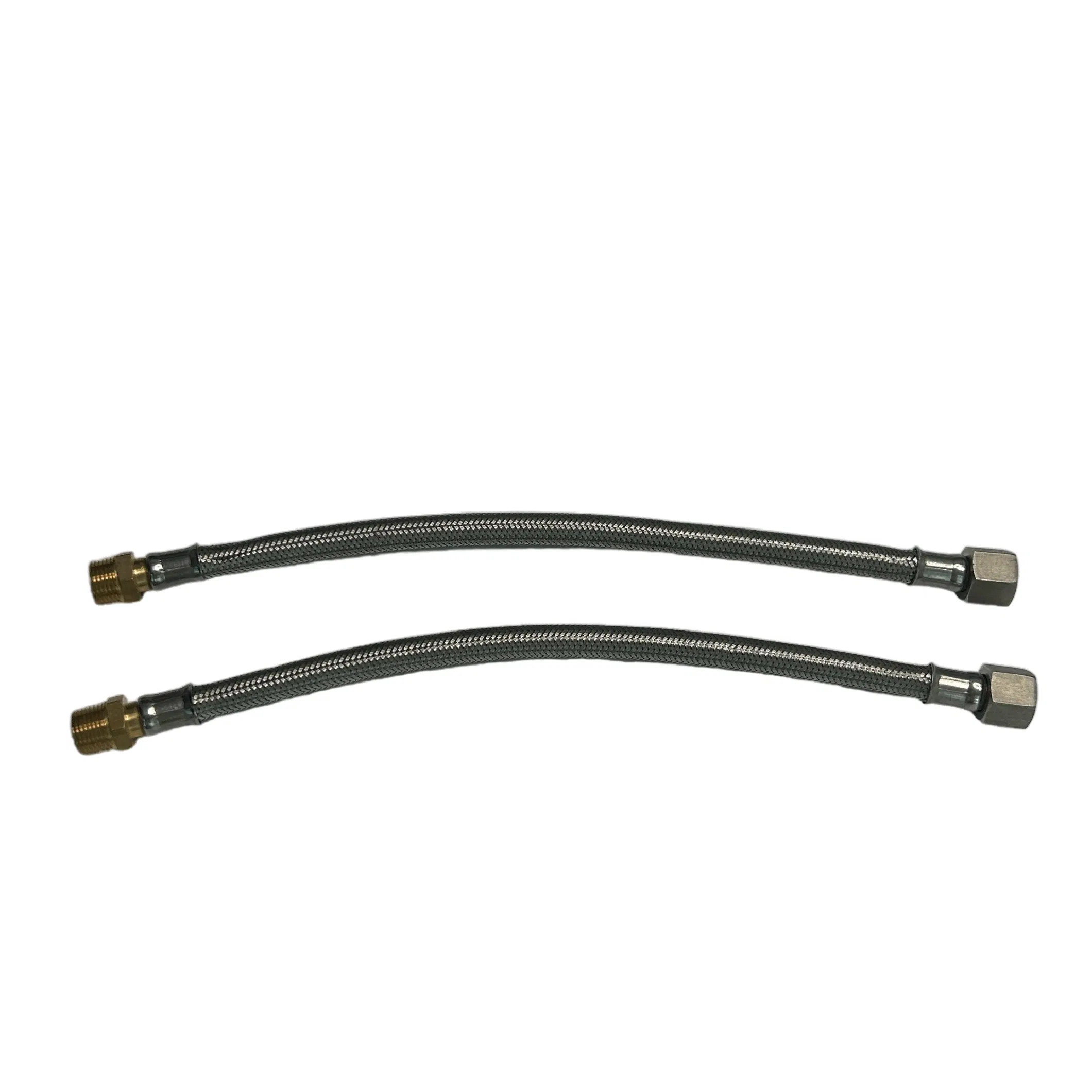

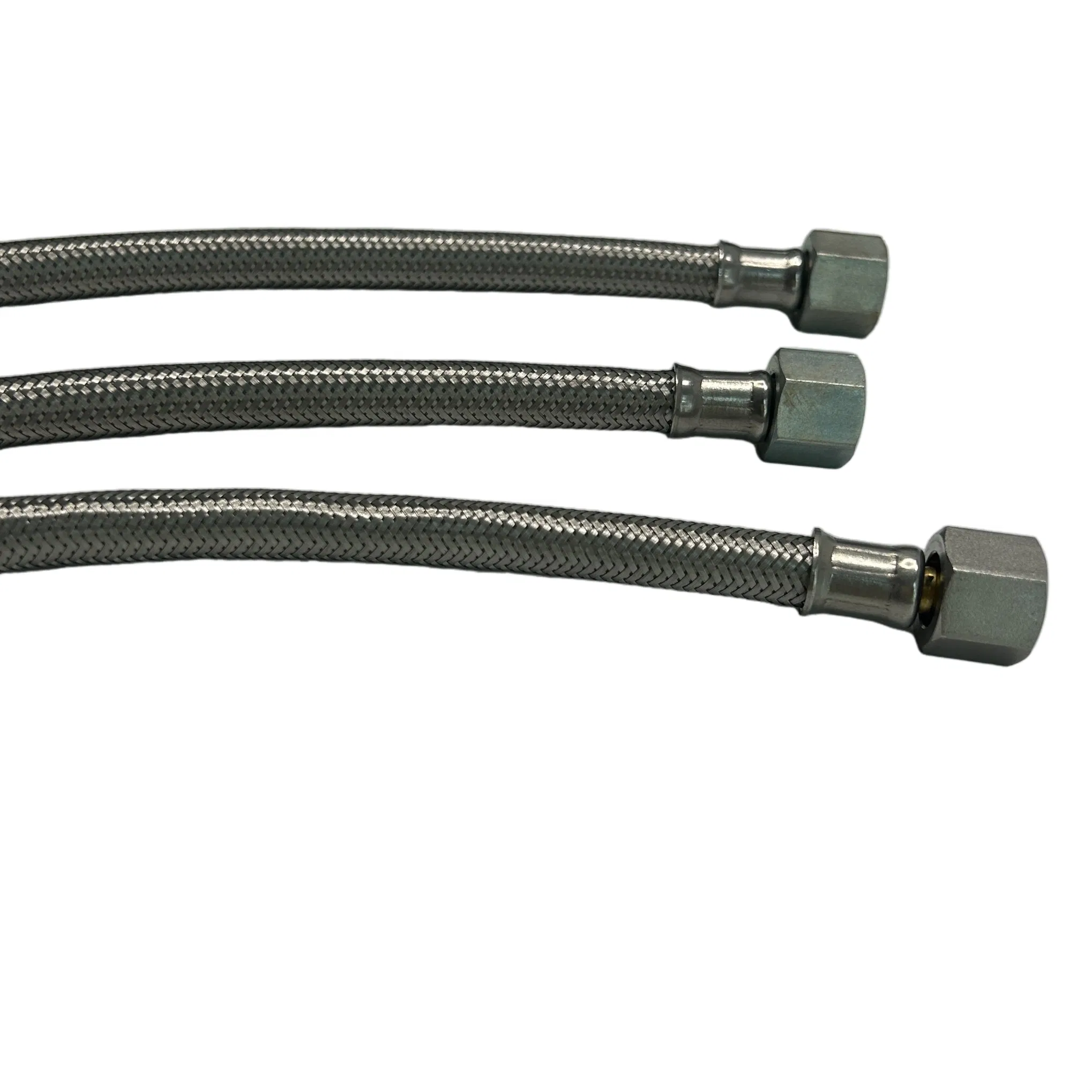

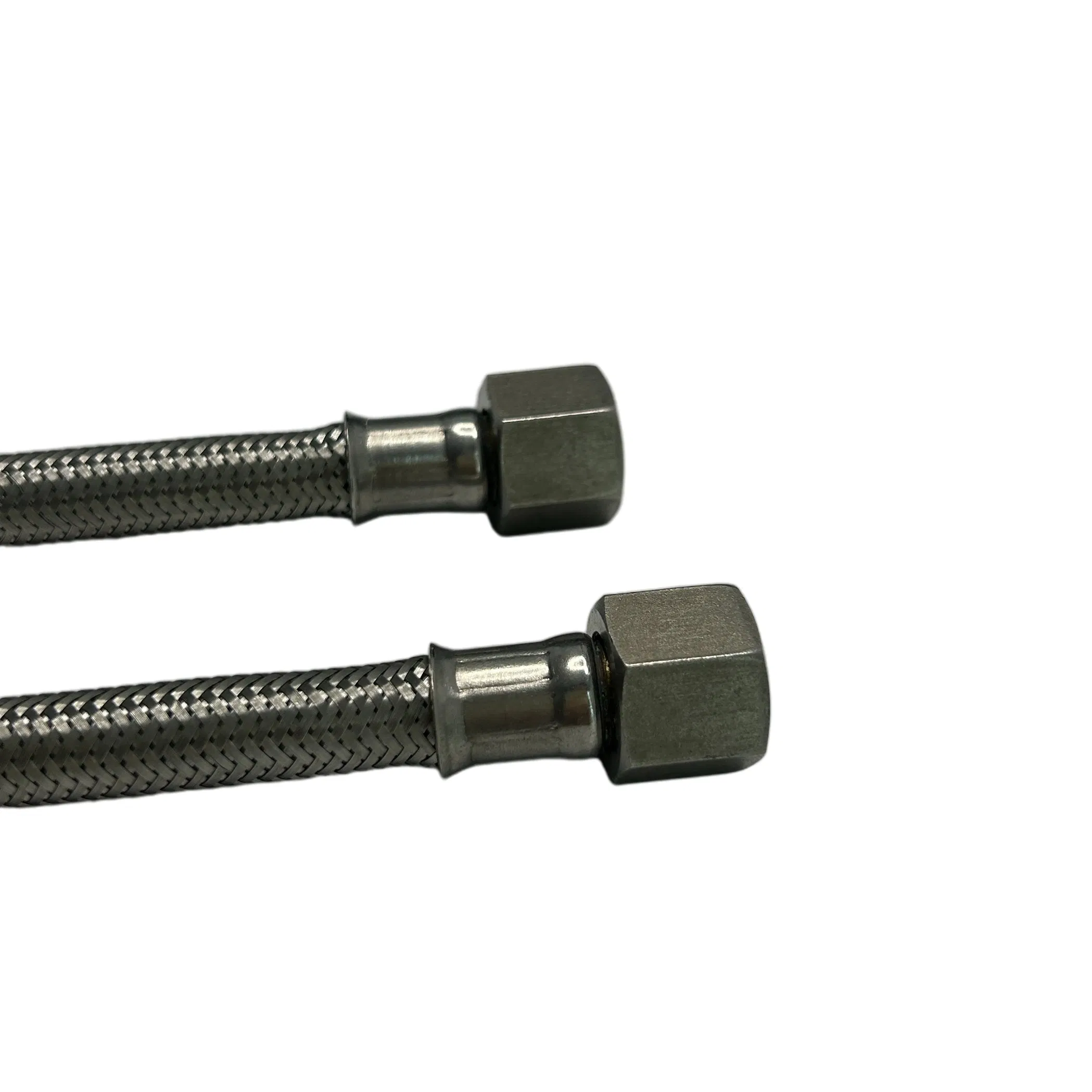

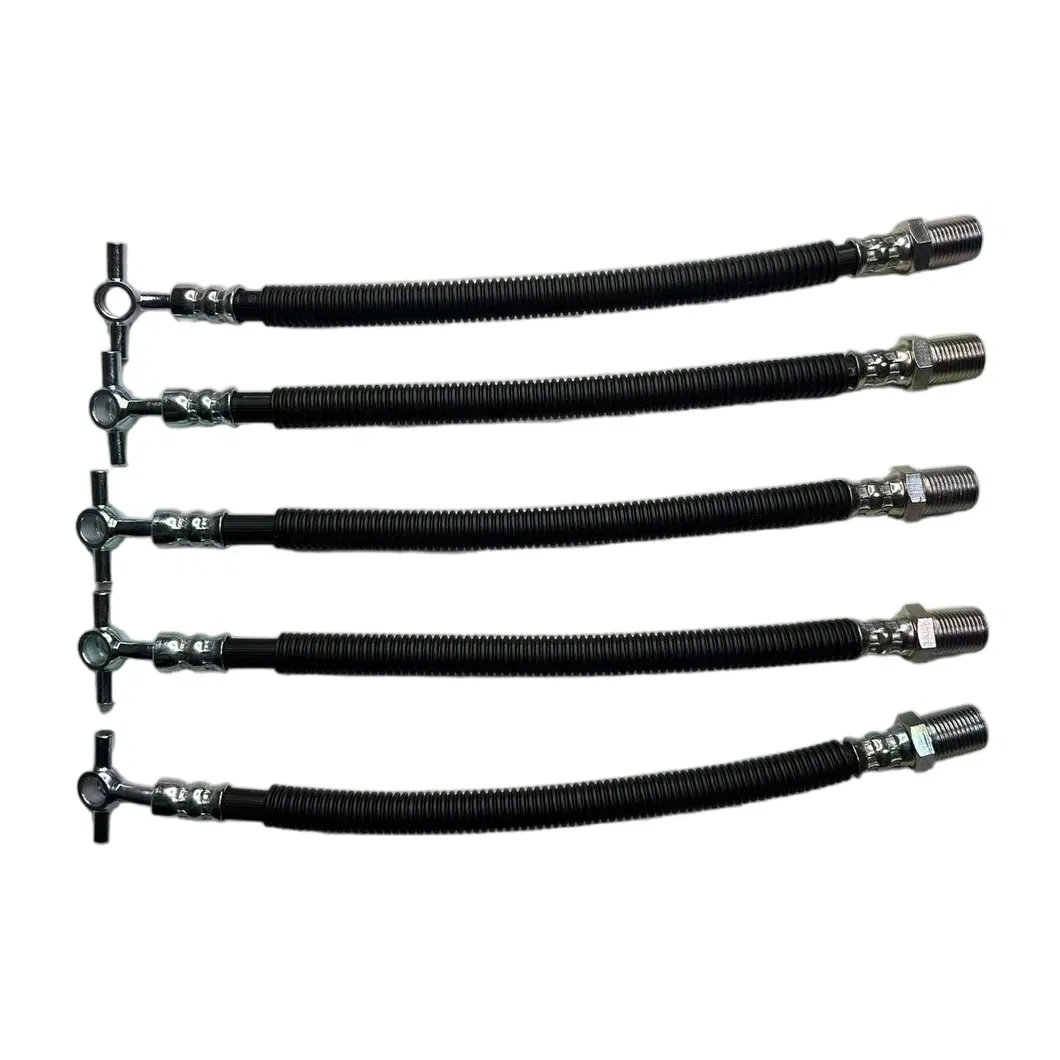

This high-performance EPDM rubber brake hose is engineered to deliver exceptional durability and reliability in demanding braking systems. Crafted with a 1/8-inch inner diameter, the hose features a robust braided reinforcement layer for enhanced pressure resistance and structural integrity, ensuring safe and precise fluid transmission in automotive, motorcycle, or industrial applications.
The EPDM (Ethylene Propylene Diene Monomer) rubber construction provides superior resistance to heat, ozone, abrasion, and hydraulic fluids, making it ideal for extreme temperatures (-40°F to +250°F) and harsh environments.
| Stats | Description | Stats | Description |
|---|---|---|---|
| Materials | Inner layer: EPDM rubber; Reinforcement: High strength braid; Cover: EPDM | Applicable medium | Brake fluid (DOT 3/4/5.1), air, water based liquid |
| Inside diameter (ID) | 1/8 inch (3.18 mm) | Certification standard | SAE J1401, DOT FMVSS 106, ISO 3996 |
| Working pressure | 15-25 MPa (2175-3625 psi) | Burst pressure | ≥ 60 MPa (8700 psi) |
| Temperature range | -40°C to +120°C | Application scenario | Automotive/motorcycle braking systems, hydraulic control |
