We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.
| Category | Type | Tube Construction | End Fittings | Dimensions | Pressure Rating |
|---|---|---|---|---|---|

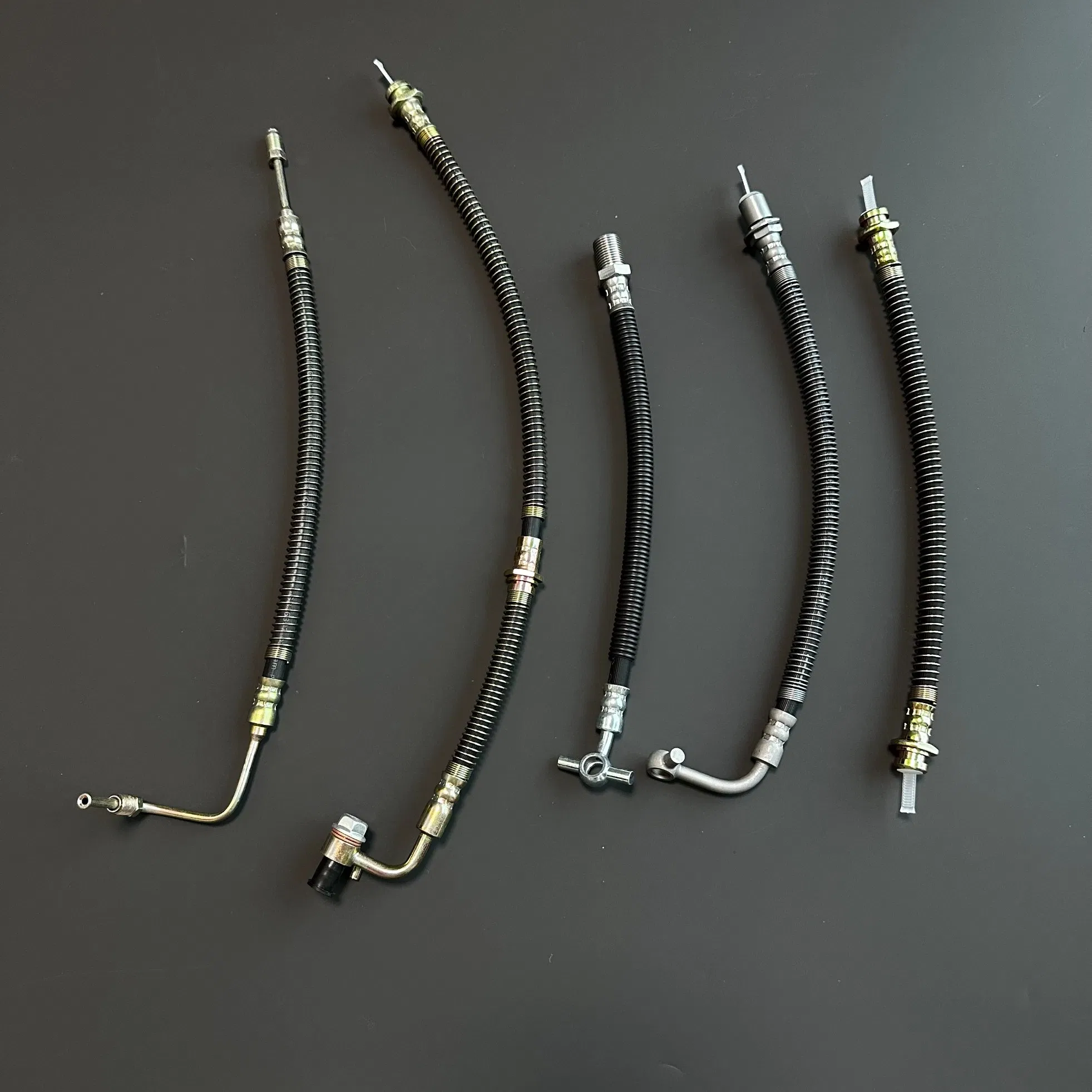

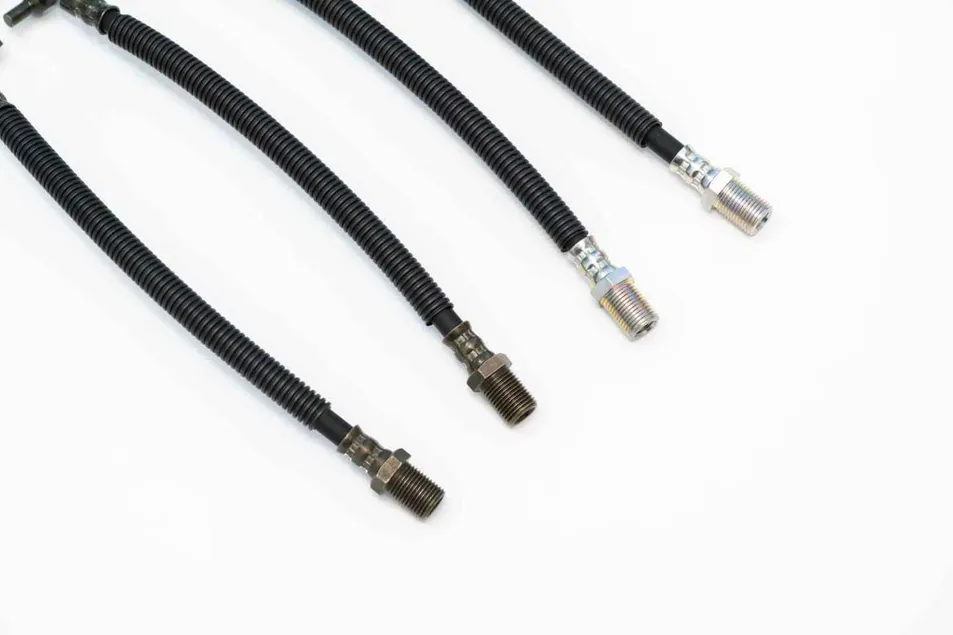

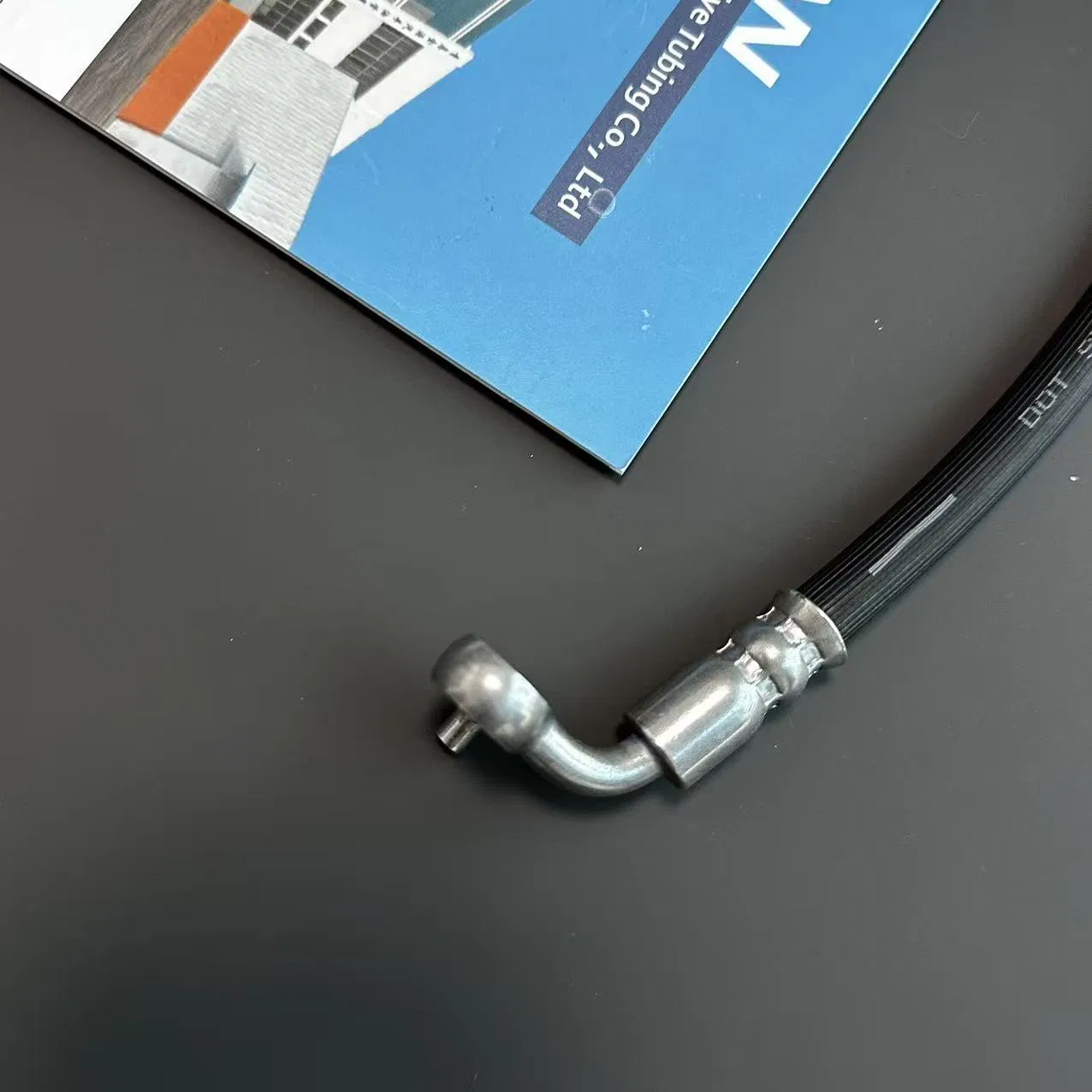

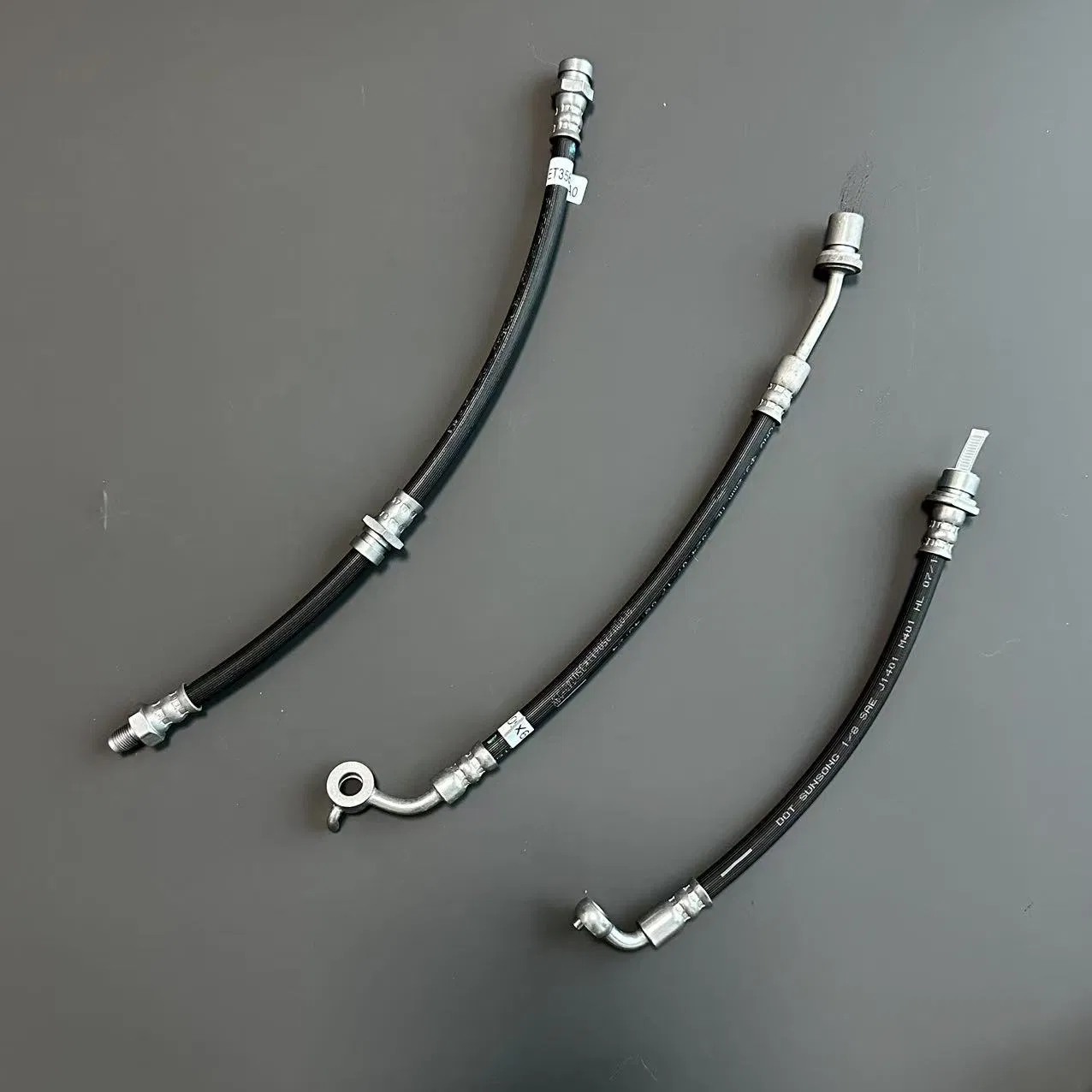

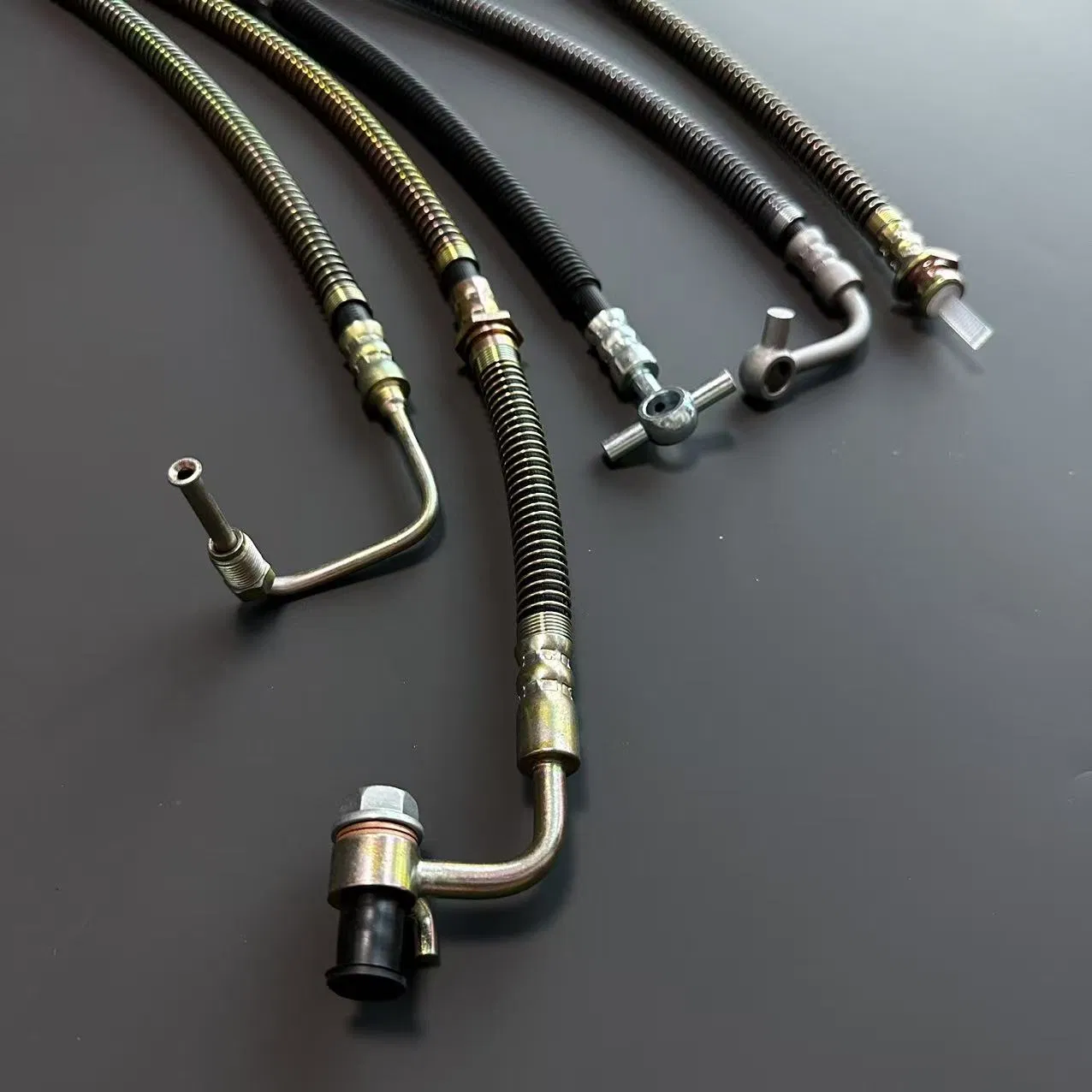

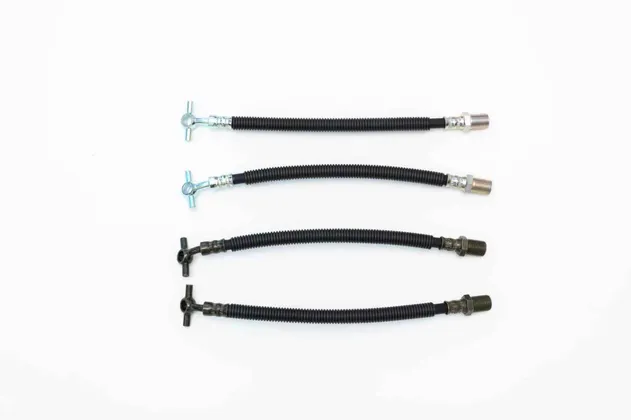

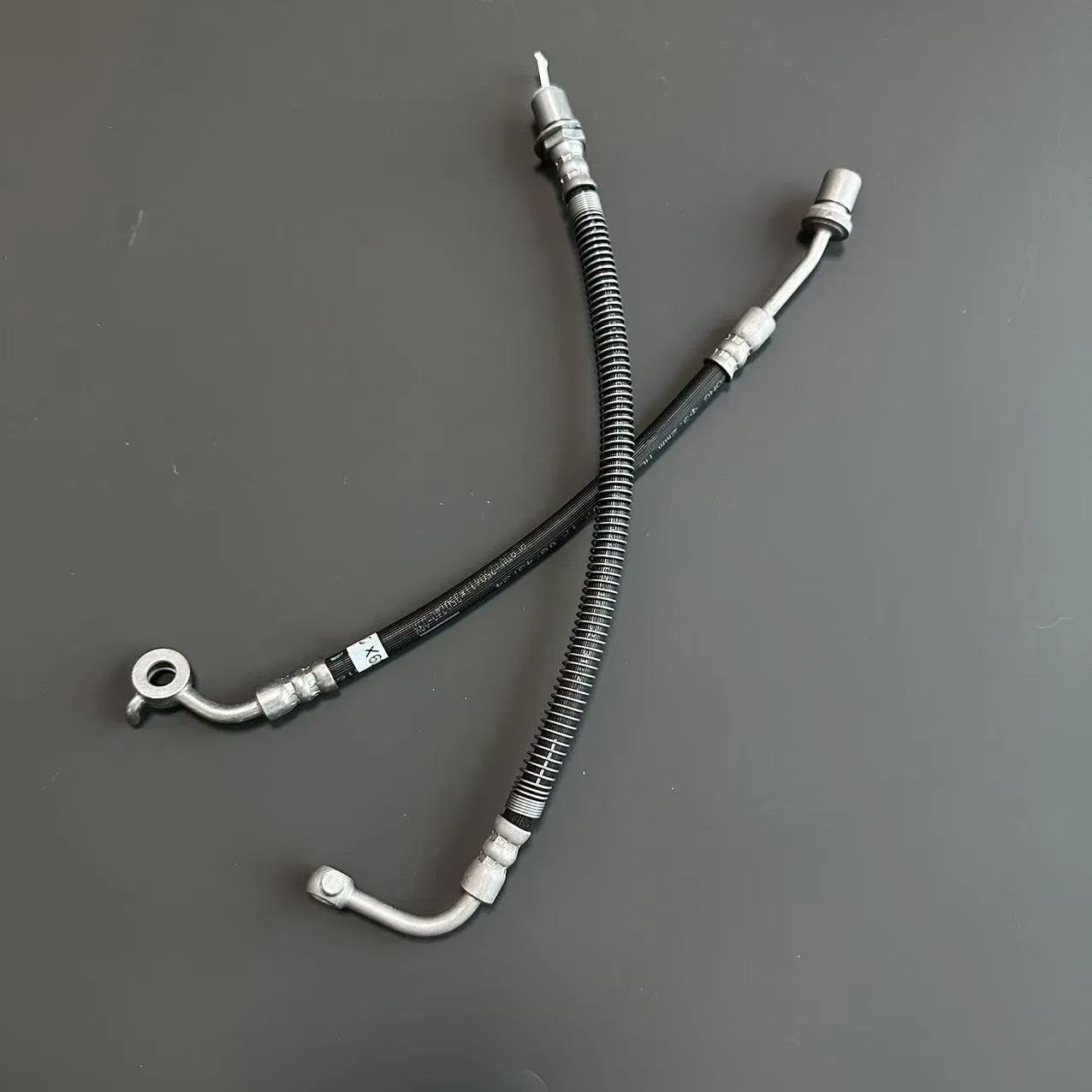

| Brake Hose | Hydraulic Brake Hose | ECE R90 synthetic rubber, Textile/steel wire reinforcement | M10×1.0, M12×1.0, 3/8-24 UNF; Zinc-plated/Stainless steel | ID: 3/16" (4.75mm); Length: 12-60" | 2,500 PSI |

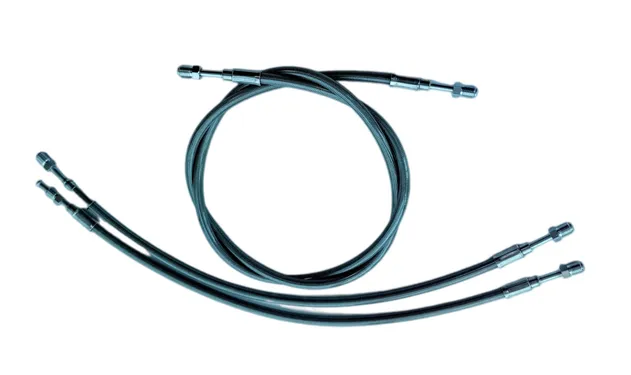

| PTFE Stainless Braided | PTFE inner liner, 304/316 stainless braid, PVC/Nylon cover | AN Fittings: -3AN, -4AN; Metric: M10, M12; Banjo | ID: 0.19-0.25"; Custom Length | 4,000+ PSI | |
| Air Brake Hose | Oil-resistant synthetic rubber, Textile reinforcement | 1/4" NPT, 3/8" NPT, M22×1.5; Push-to-connect | ID: 1/4", 3/8"; Custom Length | 150 PSI | |

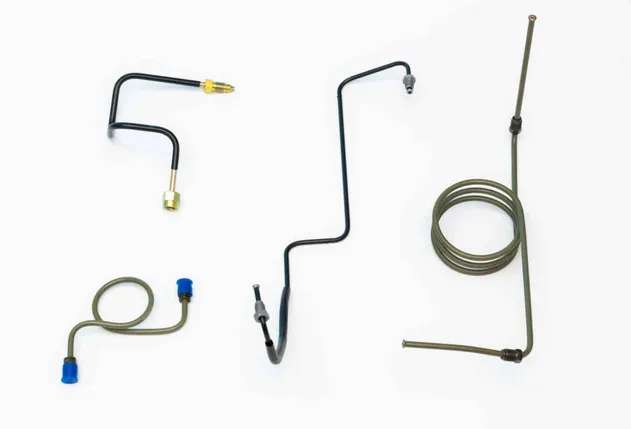

| Metal Brake Line | Steel Brake Line | Double-wall galvanized steel, SAE J1047 compliant | 45° inverted (SAE), bubble (ISO); M10×1.0 | OD: 3/16", 1/4"; Wall: 0.028-0.035" | 3,000 PSI |
| Copper-Nickel Line | CuNiFe alloy (Kunifer), Corrosion resistance | 45° inverted, bubble; Various Adapters | OD: 3/16", 1/4"; Wall: 0.028-0.035" | 3,000 PSI | |
| Stainless Steel Line | 304/304L stainless steel, Superior strength | AN Fittings: -3AN, -4AN; Metric/SAE Flare | OD: 3/16", 1/4"; Wall: 0.028-0.035" | 4,000+ PSI |
We provide highly flexible custom brake tubing solutions designed to meet exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes. We offer an extensive variety of end fittings with multiple options for threads (UNF, NPT, Metric), angles (straight, 45°, 90°, 135°, banjo), and materials (steel, stainless steel, brass).

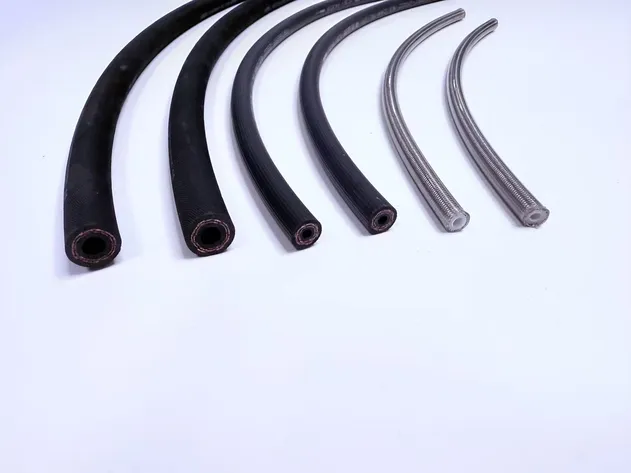

Hose Solutions

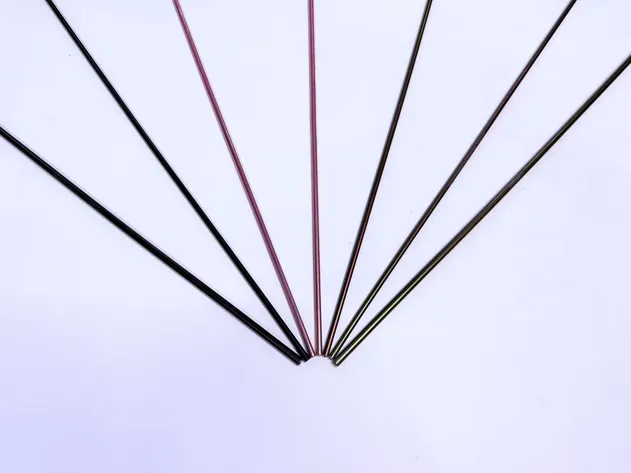

Metal Pipe

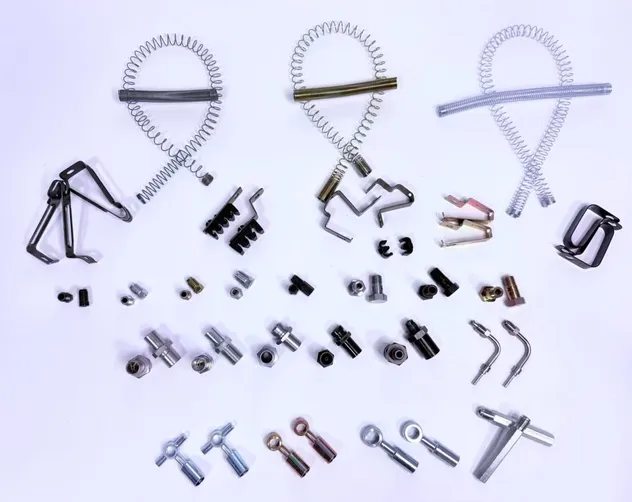

Metal Components

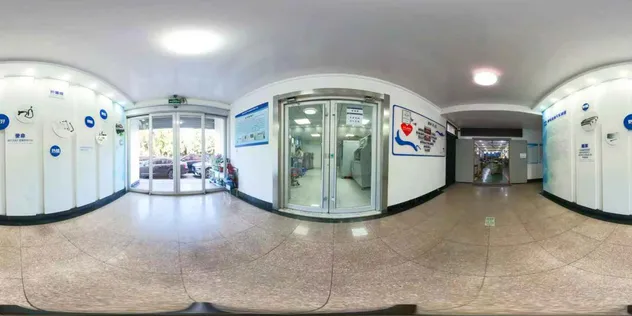

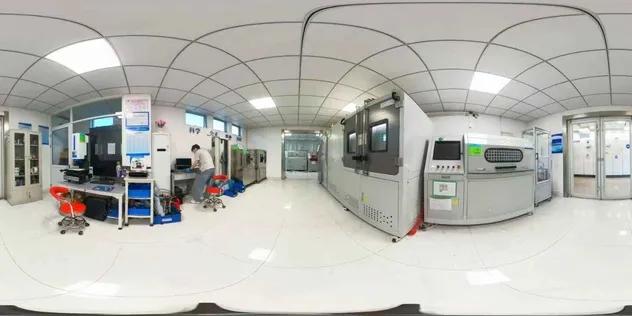

As a trusted manufacturer of automotive fluid systems, we ensure product excellence through advanced in-house testing and a quality system certified to IATF 16949:2016. Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.

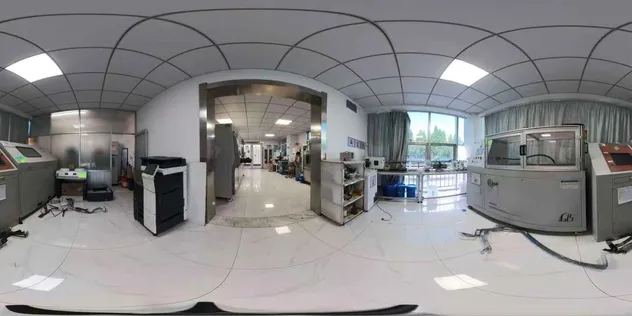

Testing includes pulse test rigs, environmental chambers, and burst pressure testers to guarantee performance under demanding conditions.
